#SFP4022

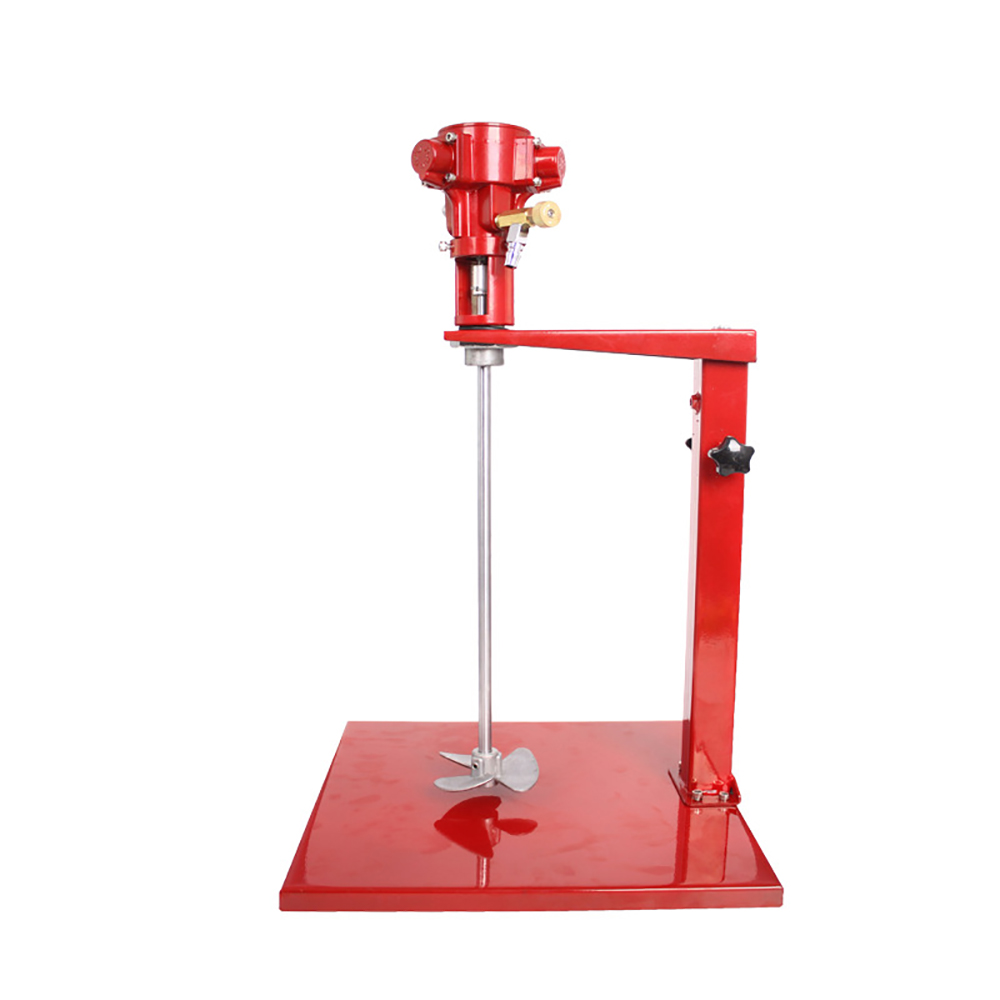

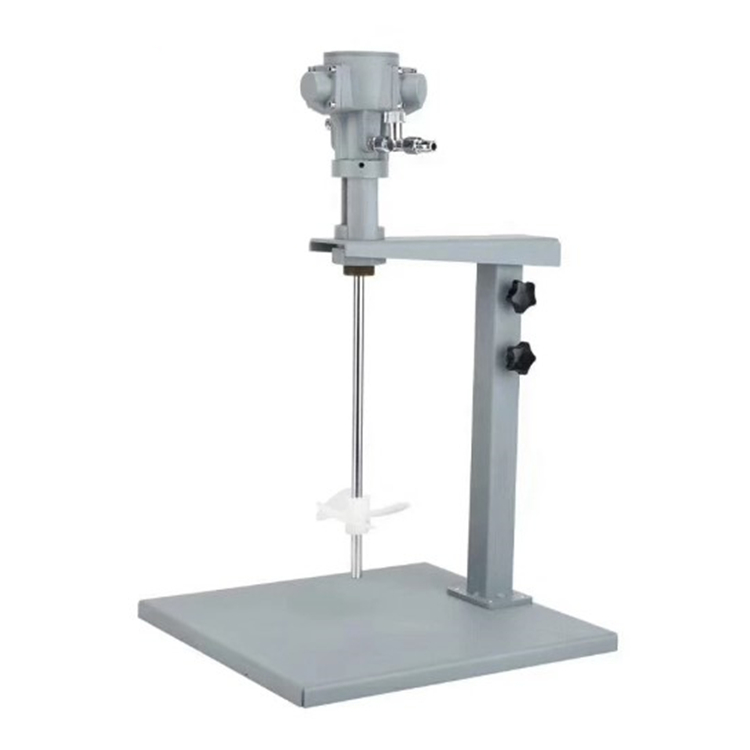

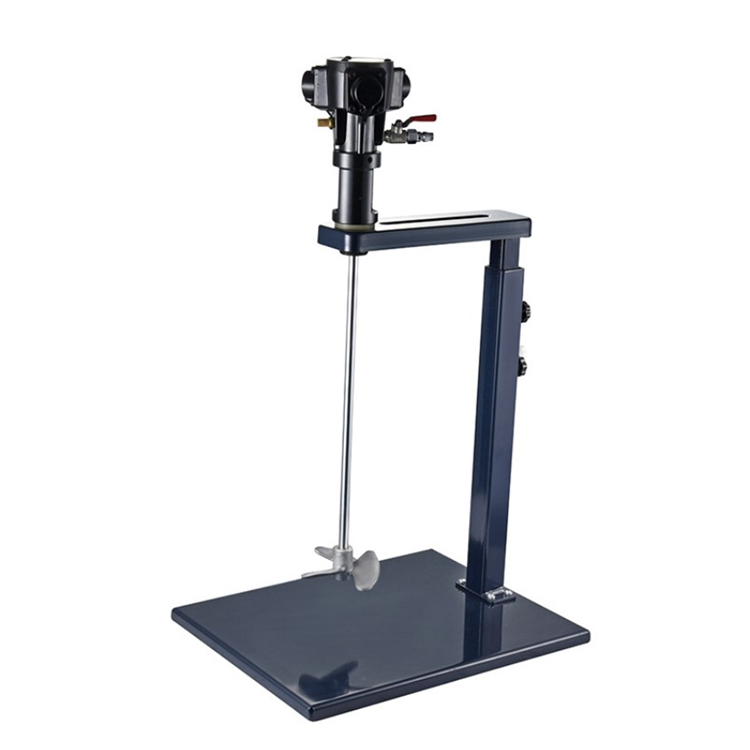

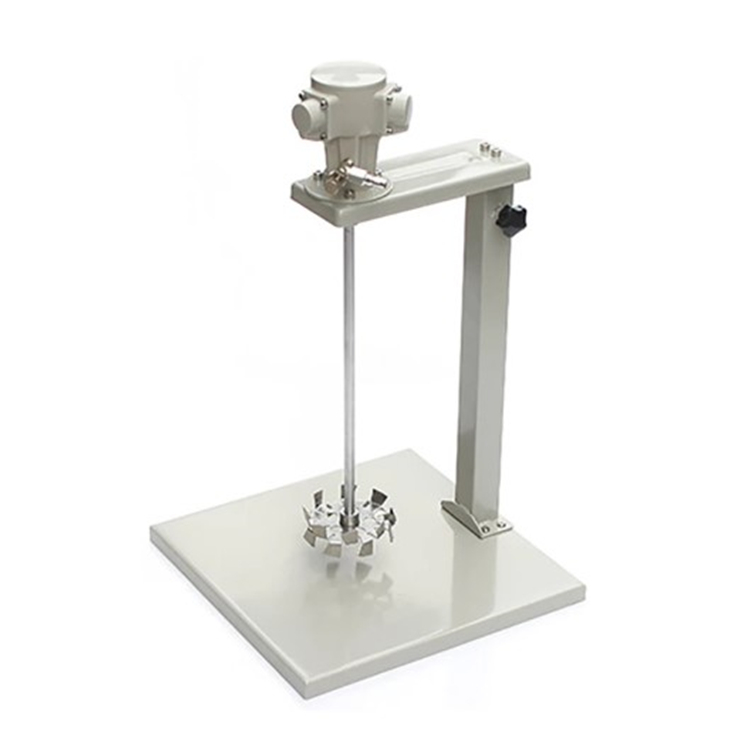

5 Gallons 20L Pneumatic Mixer Stirrer Lifting Blades Paint Air Mixing Agitator
Specification:
Power: 1/8HP Speed range: 2600RPM
Working maximum pressure: 6-8MPa
Impeller material: Aluminum Alloy
Impeller diameter: 10CM Mixing

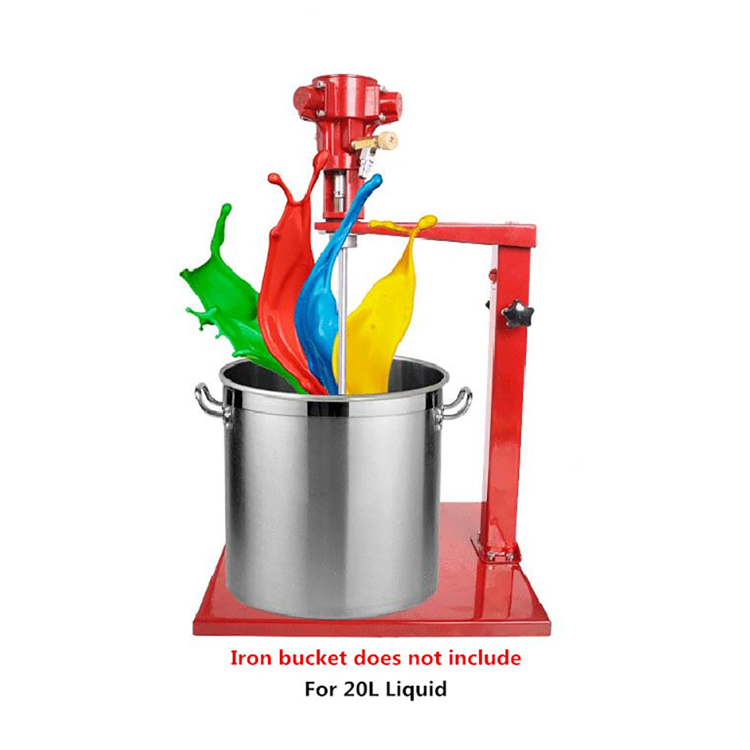

Capacity: 20L round barrel or square barrel.
Technical parameters
|
model |
Portable (three cylinder) |

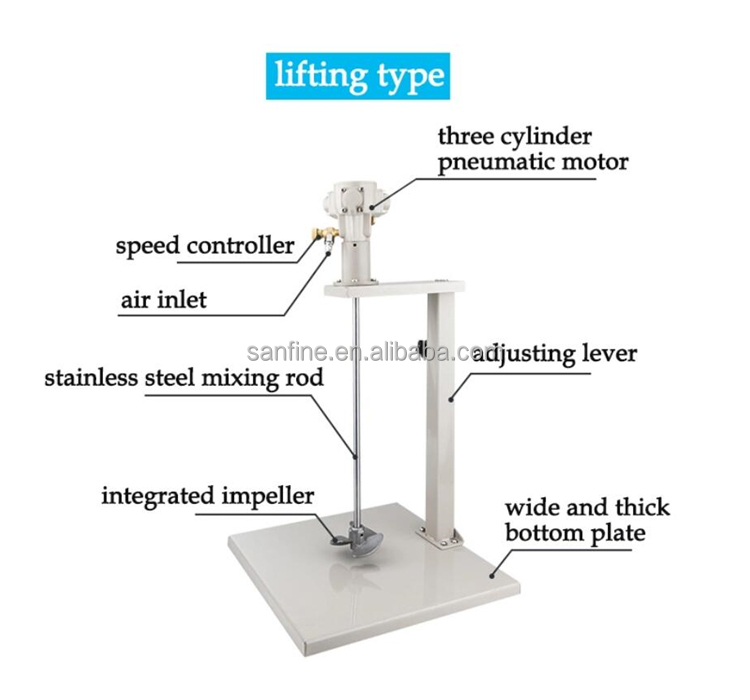

Lifting type (three cylinders) |
Splint type (three cylinder) |
Splint type (five cylinder) |
|
type |
5 Gal (single motor) |
5 Gal (single motor) |
50 gal (three motors) |
50 gal (five motors) |
|
Impeller diameter |
10.3cm |
10.3cm |
15.5cm |
15.5cm |
|
horsepower |
1/4HP |
1/8HP |
1/2HP |
3/4HP |
|
Air supply pressure |
0.6-0.8Mpa |
0.6-0.8Mpa |
0.6-0.8Mpa |
0.6-0.8Mpa |
|
Speed range(rpm/min) |
50-2600 |
0-2600 |
50-1600 |
50-1200 |
|
Blade material |
aluminium alloy |
aluminium alloy |
aluminium alloy |
aluminium alloy |
This Pneumatic mixer is in good working condition.
It is used for mixing paint, coating materials, etc.

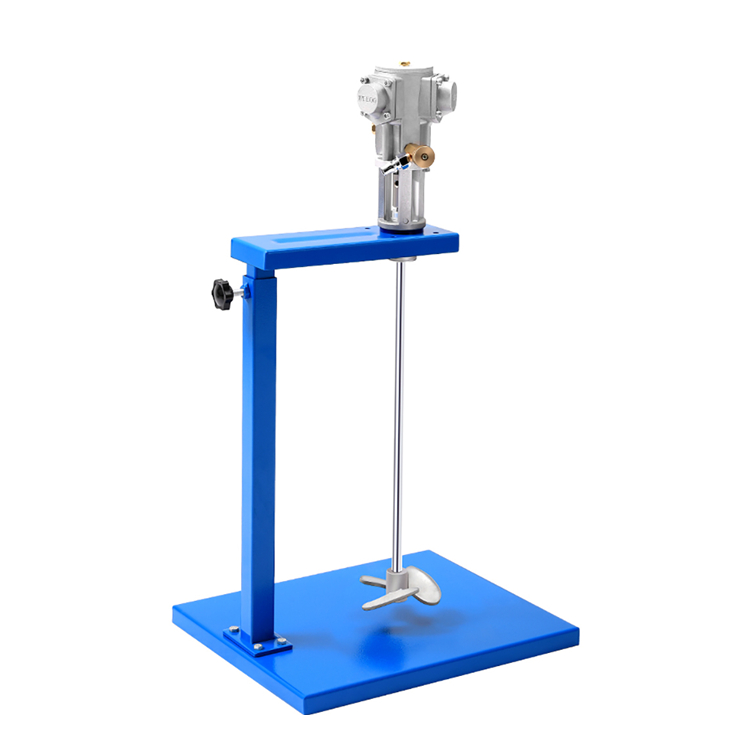

It come with stand and shafts with the mixing propellers shown.
The height of the stand can be adjusted. It needs to work with a air compressor.
It is used for paint mix in paint factory. mixing many kinds of coating material.homogeneity, dispersing in domestic industry, food industry, etc.
It is safe to use without spark and anti-explosive.
Feature:
Easy to operate, mix well.
Powerful cylinder motor, high-strength metal material, can work continuously for a long time.
Package included: Each mixer comes with 2 blades, which makes the mixing more efficient.
