Key attributes
Industry-specific attributes
|
Type |
Road Roller |
|
Feature |
durable |
|
Power Source |
Diesel |
|
Application |
Road Compactor Double Drum |
Other attributes
|
Place of Origin |
Zhejiang, China |
|
Brand Name |
Sanfine |
|
Warranty |
1 year |
|
Customized support |
OEM, ODM, OBM |
|
Model Number |
SF-BM1500/1600 |
|
Hydraulic Pump Brand |
SAUER-DANFOSS |
|
Drum diameter |
700mm |
|
Fuel type |
Gasoline Diesel air cooling |
|
Power |
11hp/3600rpm |
|
Exciting force |
20 KN |
|
Fuel capacity |
15L |
|
Hydraulic tank capacity |
13L |
|
Climbing ability |
30% |
|
Steel Wheel Diameter |
530mm |
|
UNIQUE SELLING POINT |
High operating efficiency |
Packaging and delivery
|
Selling Units: |
Single item |
|
Single package size: |
195X87X152 cm |
|
Single gross weight: |
1000.000 kg |
Product descriptions from the supplier
Overview
Product Description
#SF-BM1500/1600

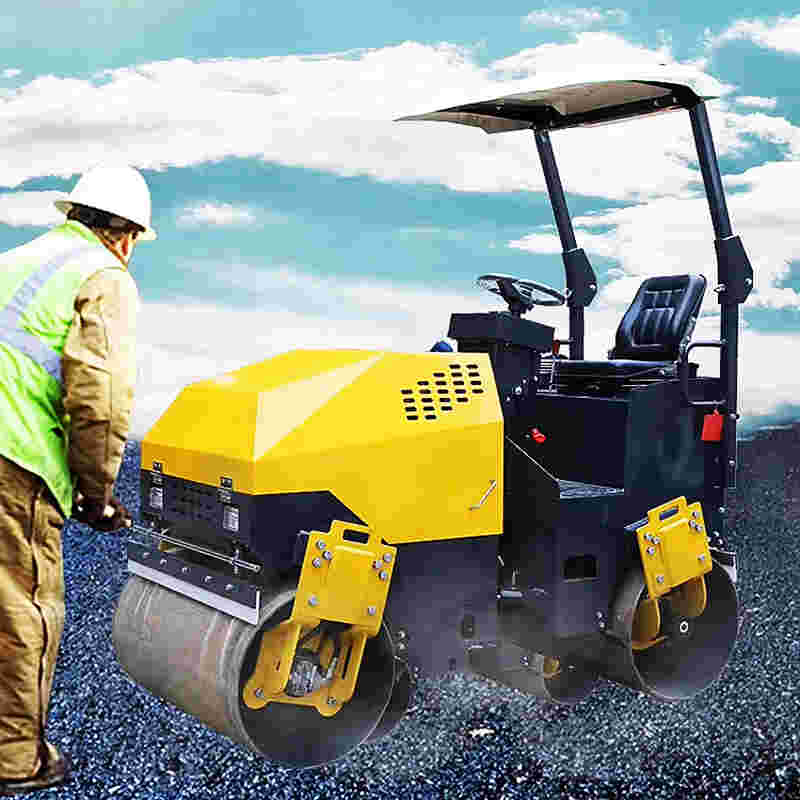

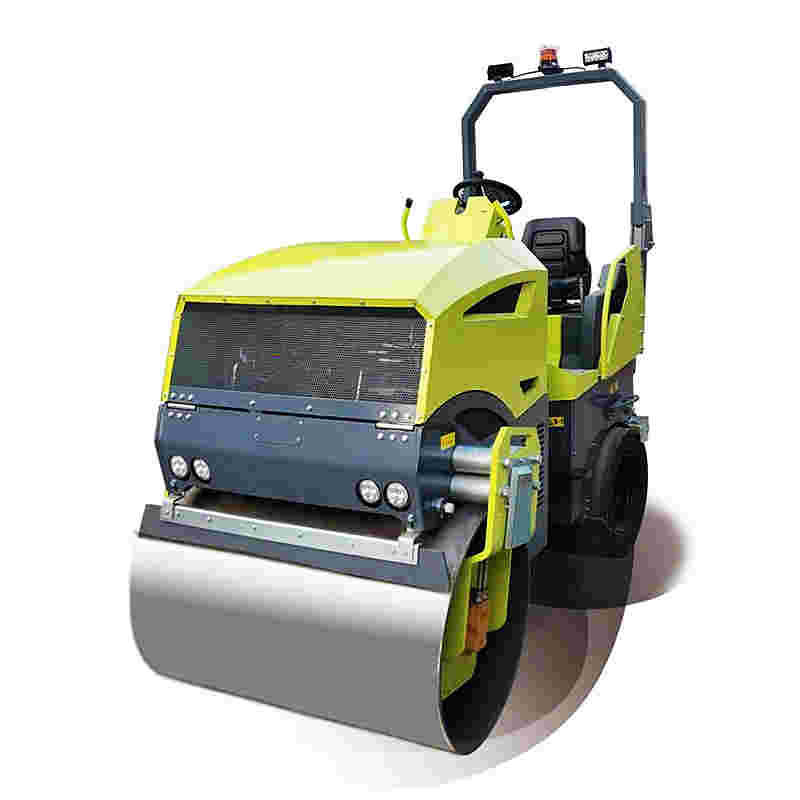

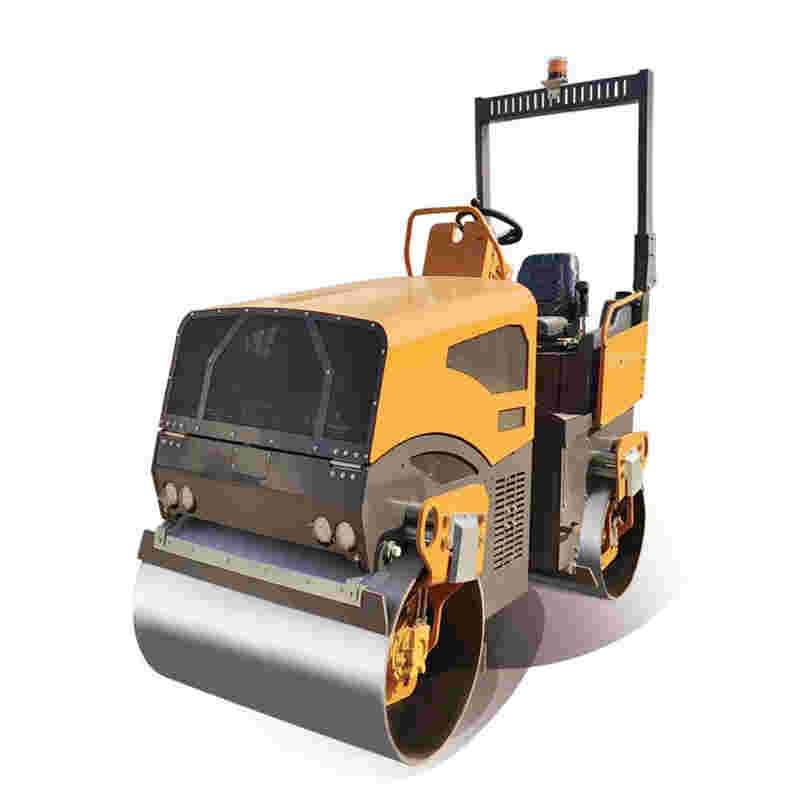

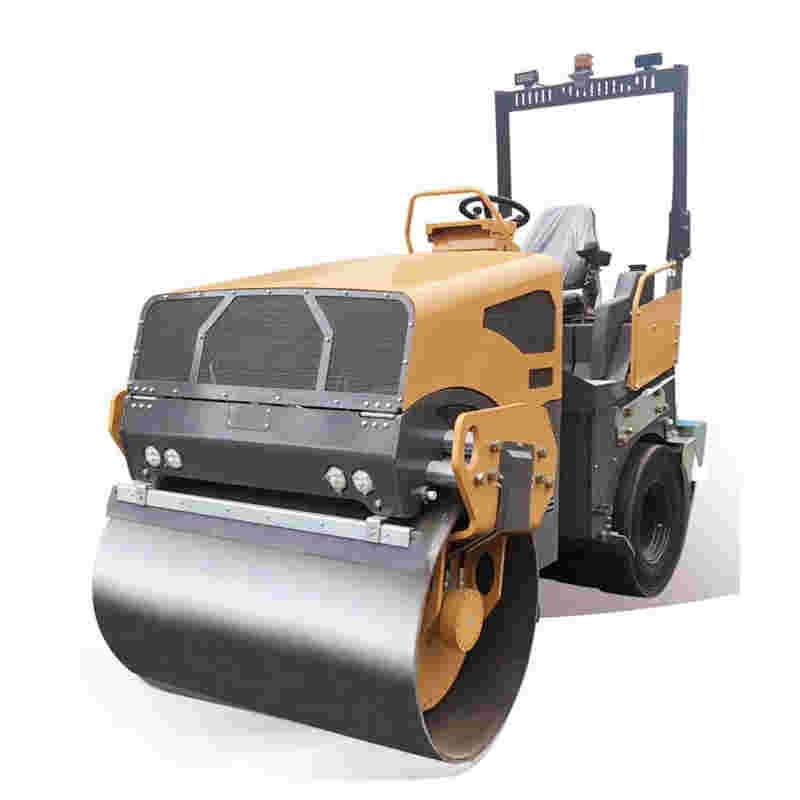

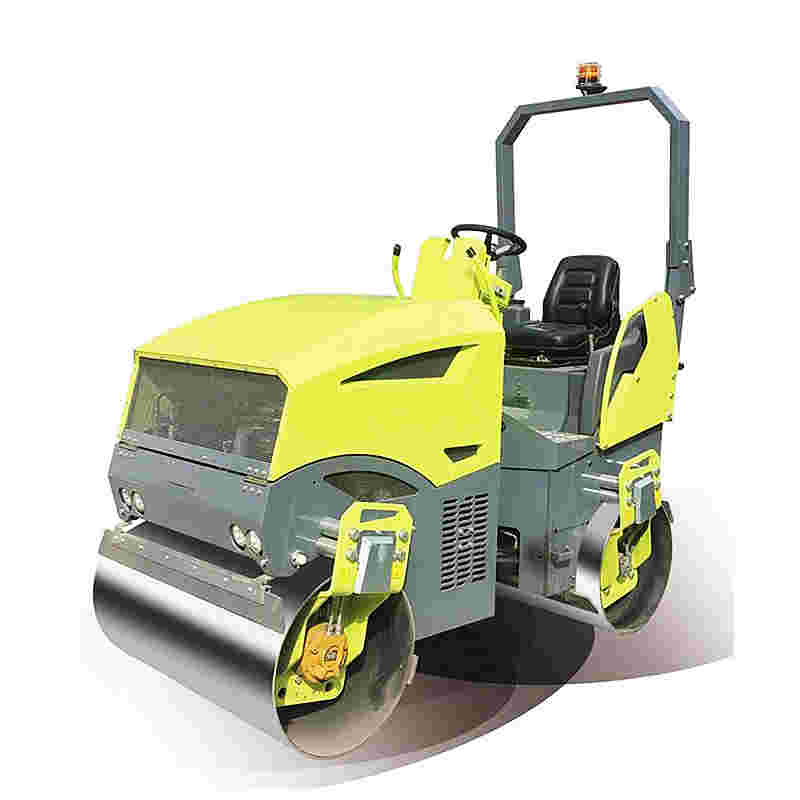

Diesel Engine Concrete Compactor Double Drum 1.5 Ton 2 Ton Mini Road Roller
FEATURES
1. Equipped with famous brand engine, could guarantee quality stability and excellent performance.
2. Hawkeye-shaped body design, wide field of vision and beautiful appearance

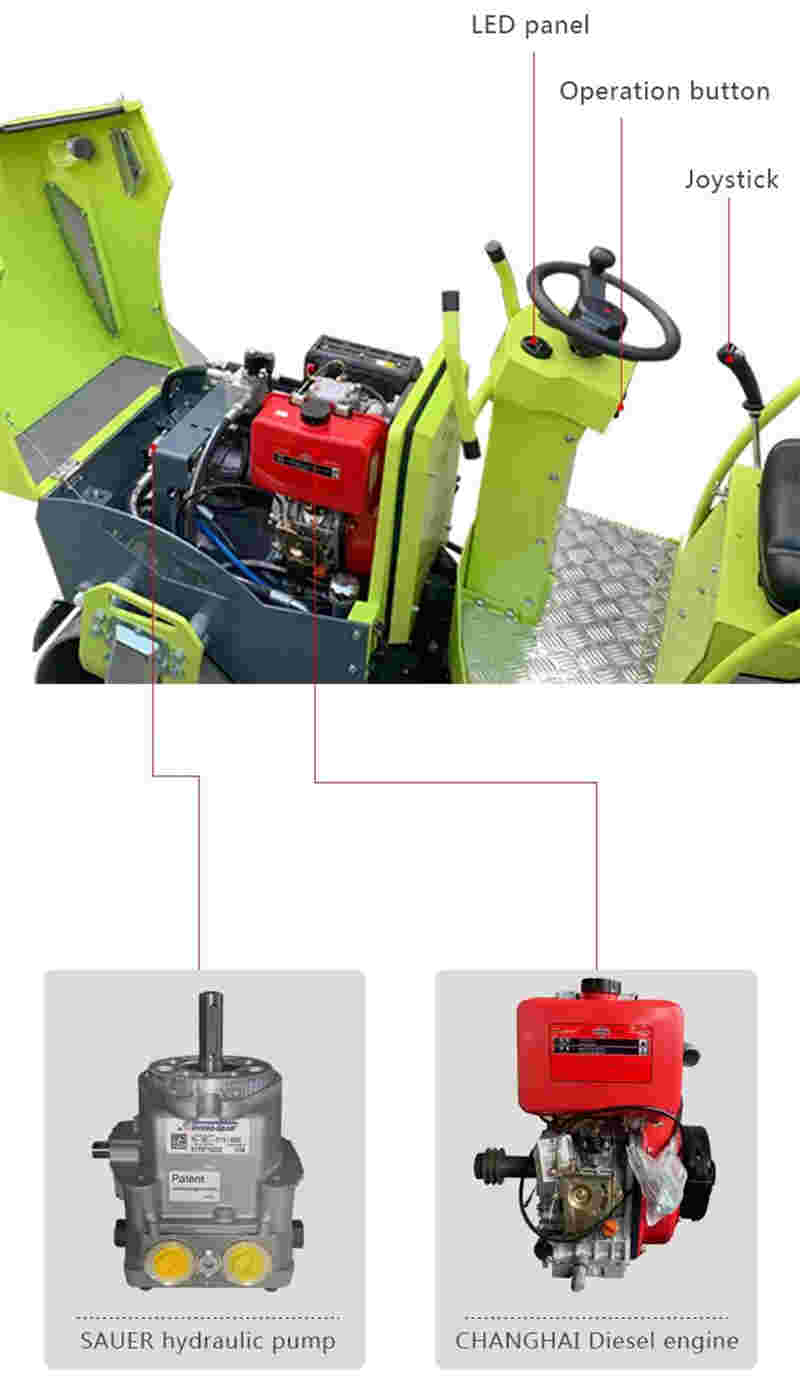

3. Used international famous brand hydraulic pump and motor, which can be steplessly shifted and walk forward and backward.

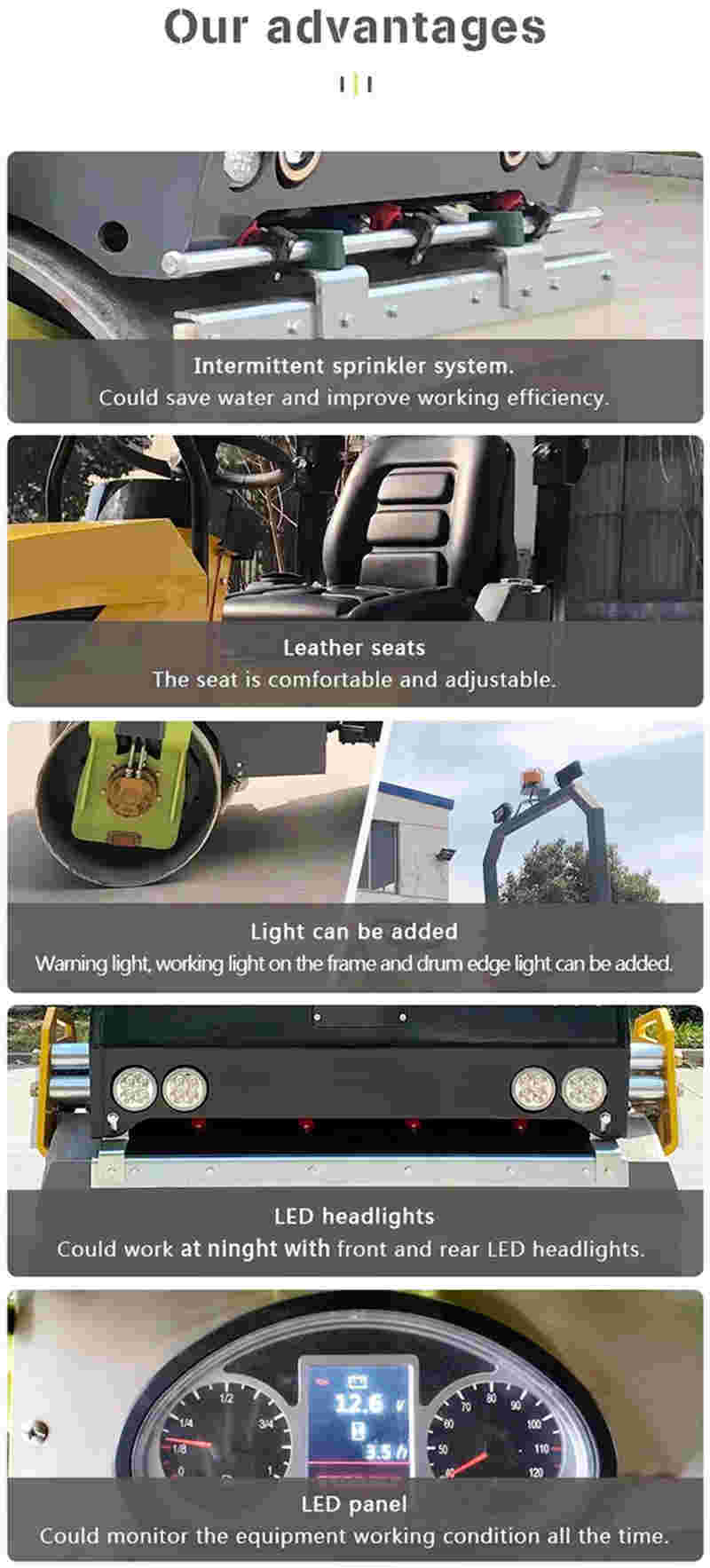

3. LED display instrument panel and Ergonomic chair.
4. Assembled with, working light and warning light, could work at night.
5. Passed CE, SGS and ISO certification and won Red Star Award design

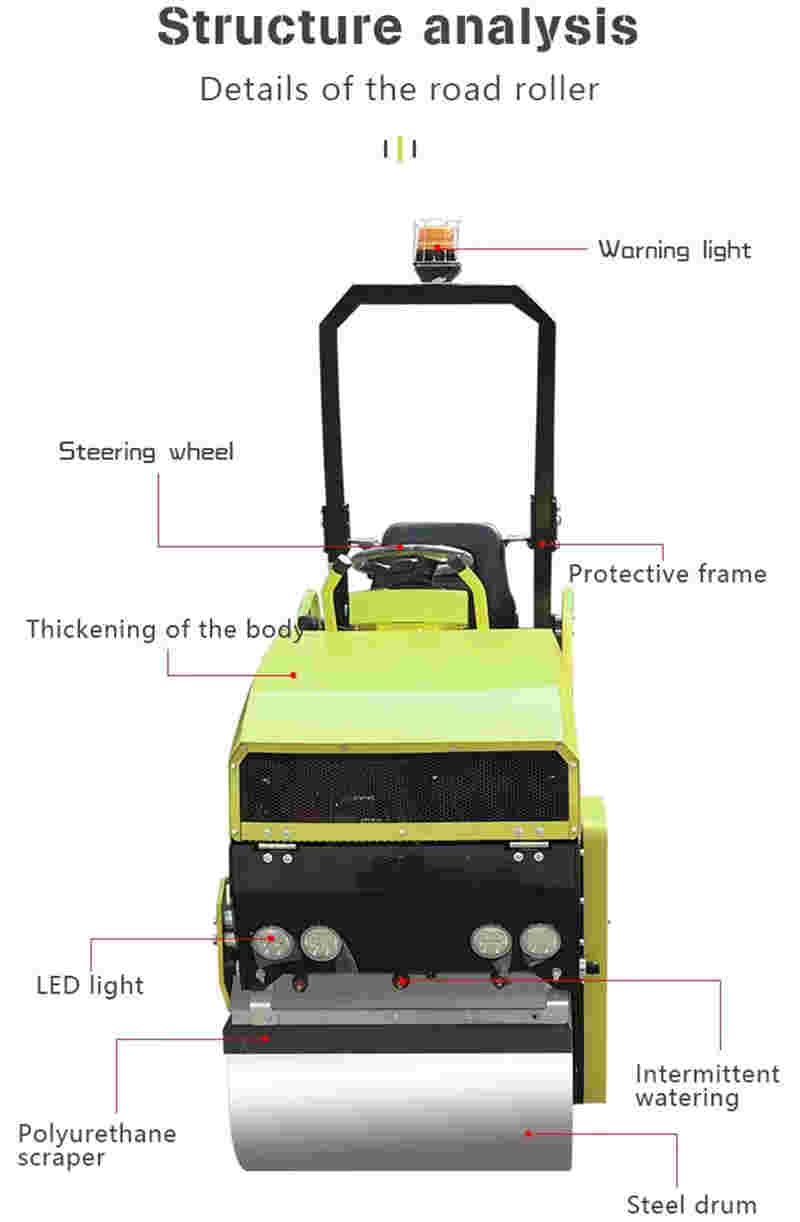

6. The steel wheels are equipped with outline marker lamps, could ensure the safety of the operator.
|
Model |
SF-BM1000 |
SF-BM1200 |
SF-BM1500 |
|
Operating Weight |
1000 kg |
1200 kg |
1500 kg |
|
Static linear load |
56/77 N/cm |
69.5/68 N/cm |
82 N/cm |
|
Dimensions |
|||
|
Size |
1780*825*1985 mm |
1940*930*2125 mm |
2150*1050*2465 mm |
|
Turning radius(outer) |
2600 mm |
2800 mm |
3850 mm |
|
Drum size |
500*700 mm *2 |
560*800 mm*2 |
560*900 mm*2 |
|
Wheel base |
1230 mm |
1356 mm |
1515 mm |
|
Engine |
|||
|
Model |
Honda/ Changchai |
Changchai |
Yanmar |
|
Power |
9.7/6 KW |
8.1 KW |
14.7 KW |
|
Rating speed |
3600 rpm |
3600 rpm |
3600 rpm |
|
Driving Character istics |
|||
|
Walking speed |
0-5 Km/h |
0-5 Km/h |
0-6 Km/h |
|
Climbing ability |
30 % |
30 % |
30-35 % |
|
Steering |
|||
|
Steering mode |
Hydraulic steering |
Hydraulic steering |
Hydraulic cylinder, articulated steering |
|
Steering system |
Swing articulated |
Swing articulated |
Swing articulated |
|
Exciter System |
|||
|
Vibrating drum |
Front |
Front |
Front |
|
Driving Form |
Mechanical transmission electromagnetic clutch |
Hydraulic motors |
Hydraulic motors |
|
Frequency |
65 HZ |
65 HZ |
65 HZ |
|
Amplitude |
0.5 mm |
0.5 mm |
0.5 mm |
|
Centrifugal force |
20 KN |
22 KN |
25 KN |

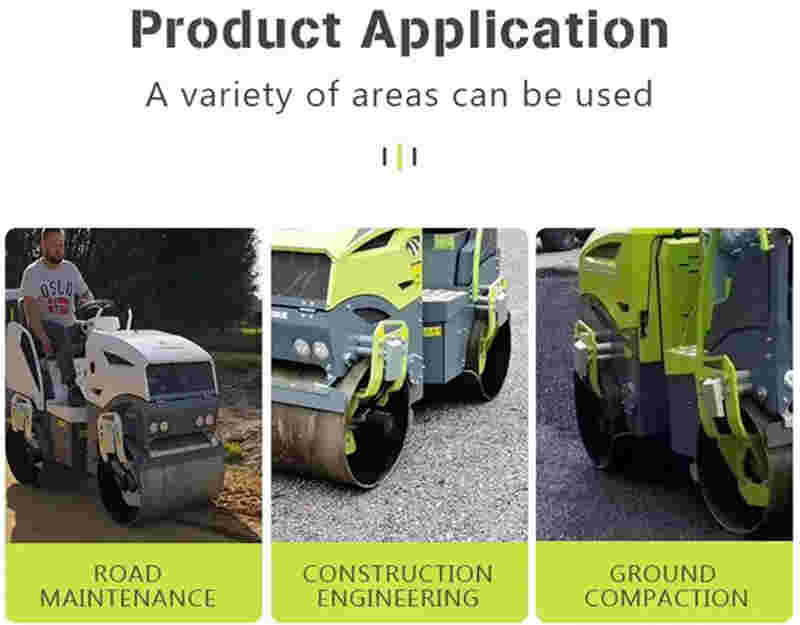

Road Roller is used in soil, asphalt road, walkway, bridge, parking, gym and narrow site.
Operate radius small, can work in small area,suitable for groove backfill.
We could supply different famous engine, like Yanmar, Kubota ,Honda ,kama.
According to your requirement,we will supply OEM and recommend service.

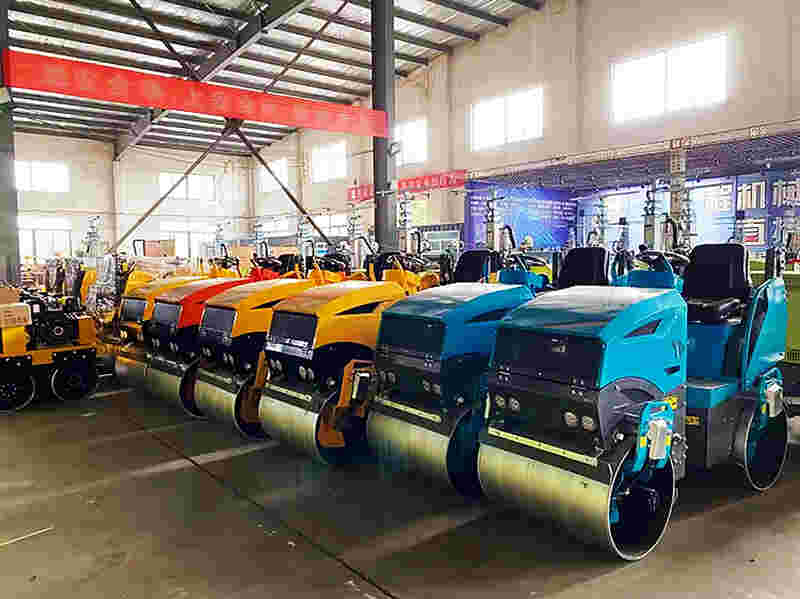

Factory & Workshop
Packaging & Shipping
Delivering & Shipping in Sorts of Transportation (Safely and Timely)
Chatting online! Skype ID: sanfinetools
Taizhou Sanfine Tools Co., Ltd. is a company specialized in importing and exporting goods.
It is located in Taizhou city, Zhejiang Province, which is only one hour away from Ningbo Port.
We have an experience of foreign trading for more than 10 years.
The excellent sales and after-sale service team, is supervised by regions and business demands.
We can provided you with multifarious high-quality commodities made in China with professional service.
