Key attributes
Industry-specific attributes
Variable Speed |
Yes |
Rated Voltage |
380V |
Rated Input Power |
11KW |
No-Load Speed |
4000-10000RPM |
Sand Pad Size |
150mm |
Other attributes
Place of Origin |
Zhejiang, China |
Power Source |
Electric |
Grade |
DIY, Industrial |
Warranty |
1 Year |
Customized support |
OEM, ODM, OBM |
Brand Name |
Sanfine |
Model Number |
SF-PWJ550 |
Frequency |
50-60Hz |
Application |
Descaling / Stripping |
Weight |
1000KG |
Working Width |
270mm, 550mm, 850mm |
Concrete Surface Cleaning Efficiency |
80-200㎡/h |
Steel Shot Diameter |
1.5-1.8mm |
Walking Speed |
0.5-33m/Min |
Diameter of Dust Pipe |
150mm |
Steel Shot Consumption |
10G/M |
Material |
Metal / Coil / Road / Concrete |
Cleaning Type |
HIGH PRESSURE CLEANER |
Cleaning Process |
Shot |
Use |
Descaling / Stripping |
Packaging and delivery
Selling Units: |
Single item |
Single package size: |
100X30X110 cm |
Single gross weight: |
1000.000 kg |
Product descriptions from the supplier
Overview
Product Description

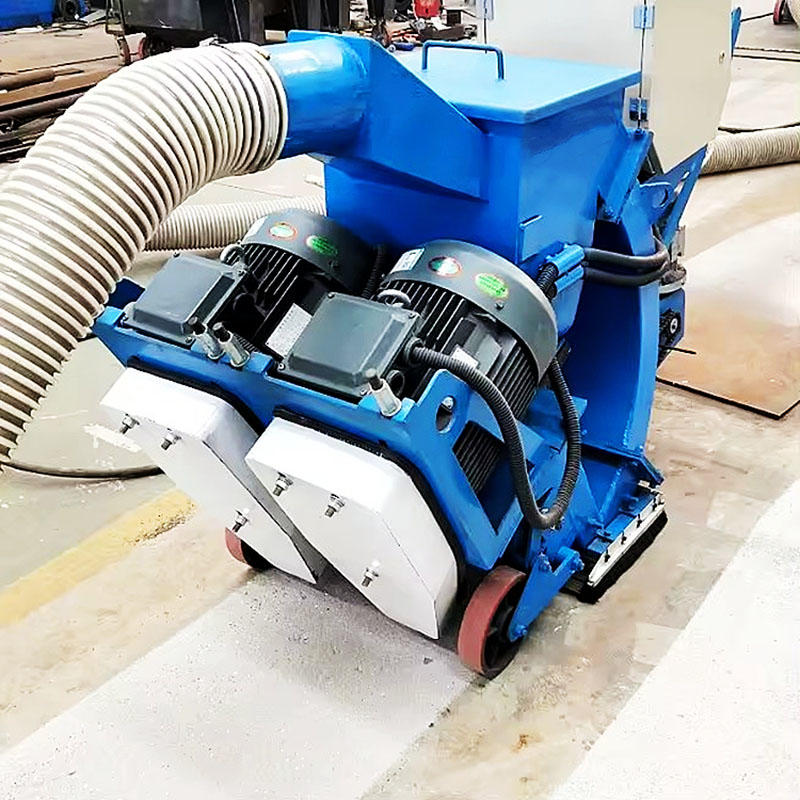

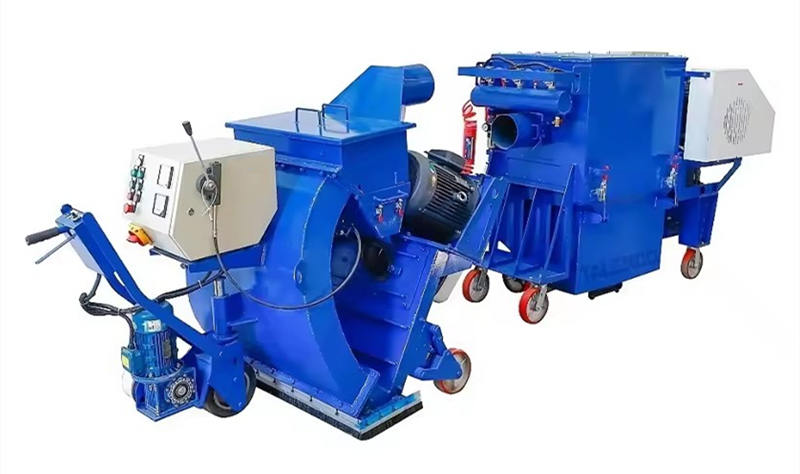

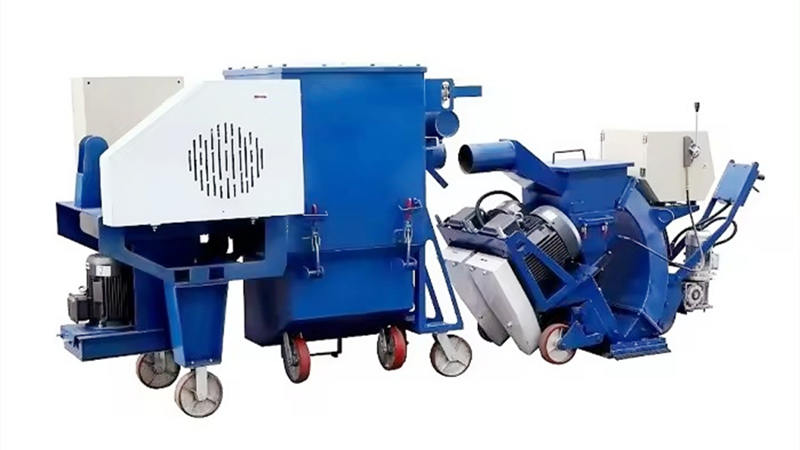

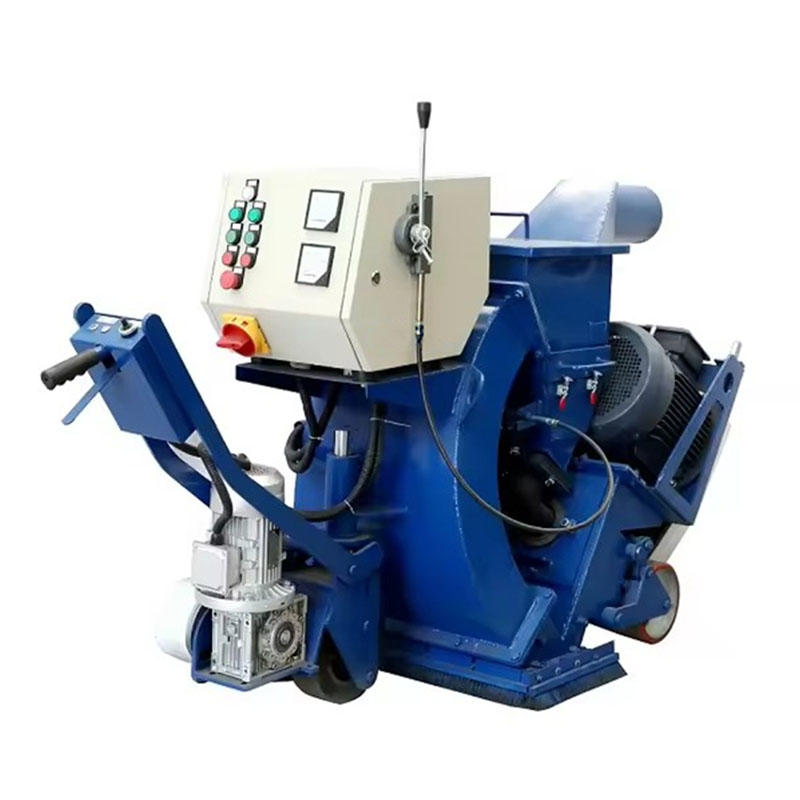

#SF-PWJ550

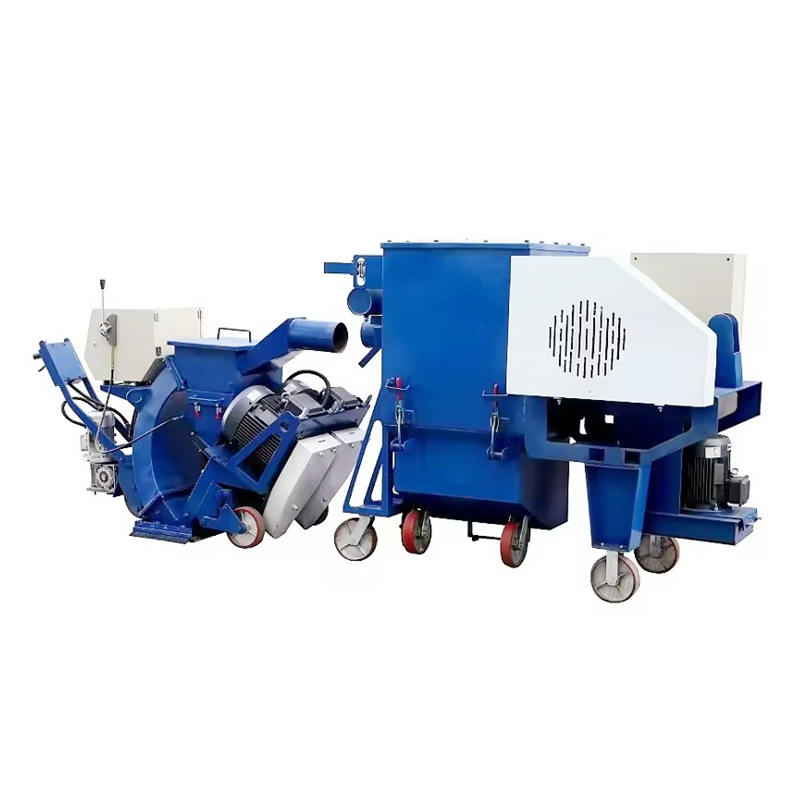

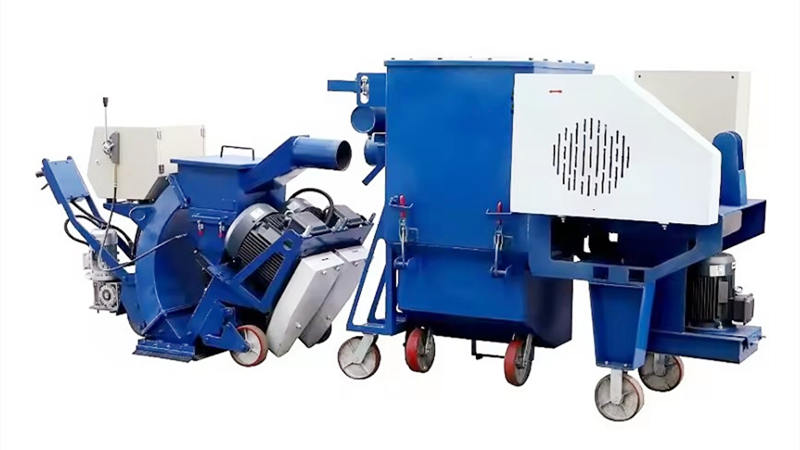

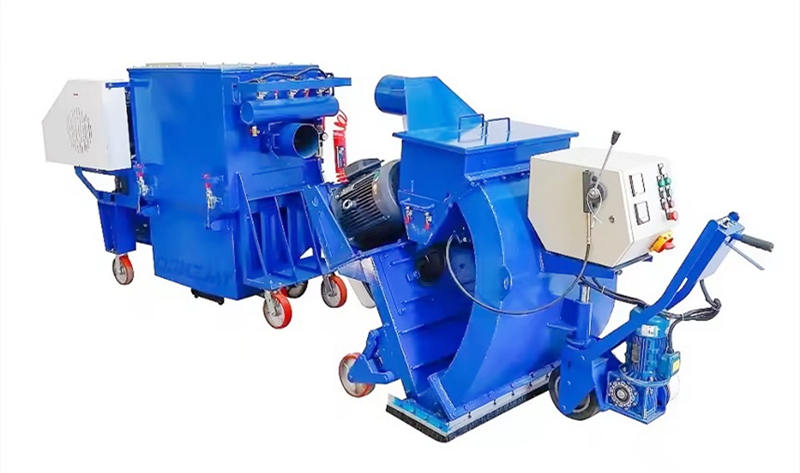

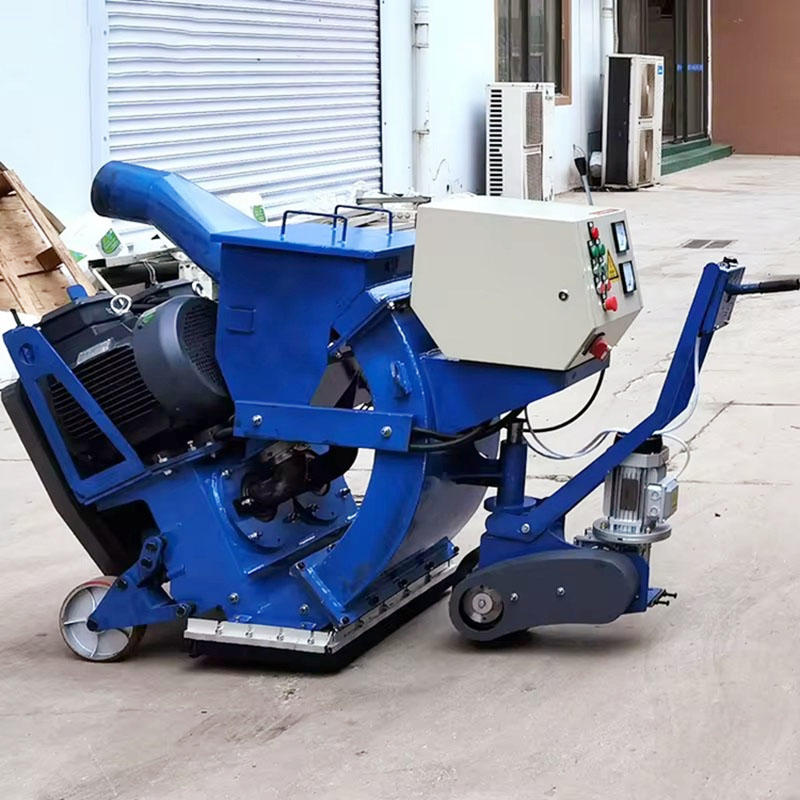

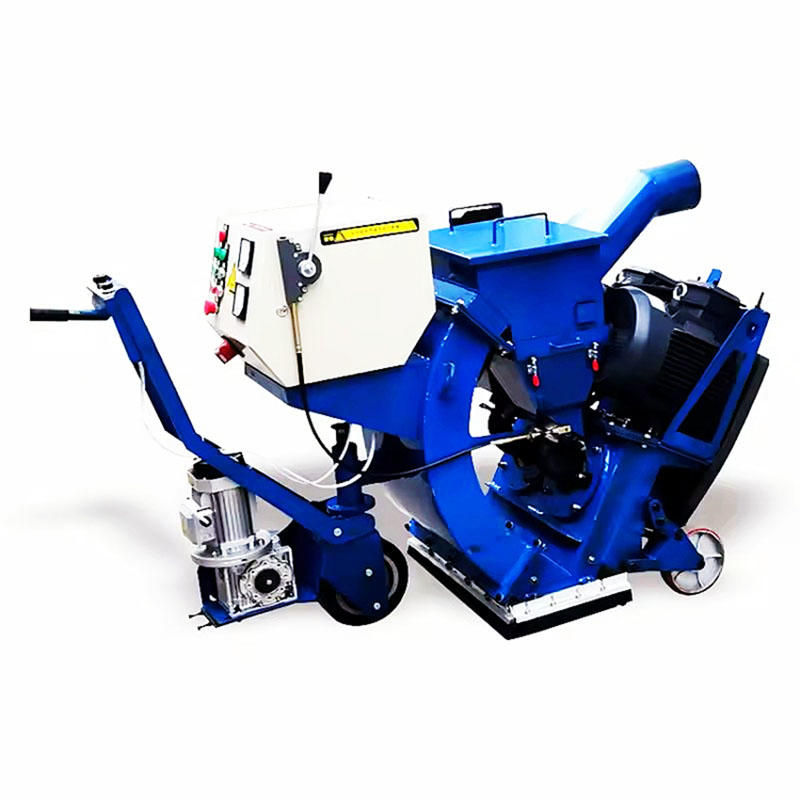

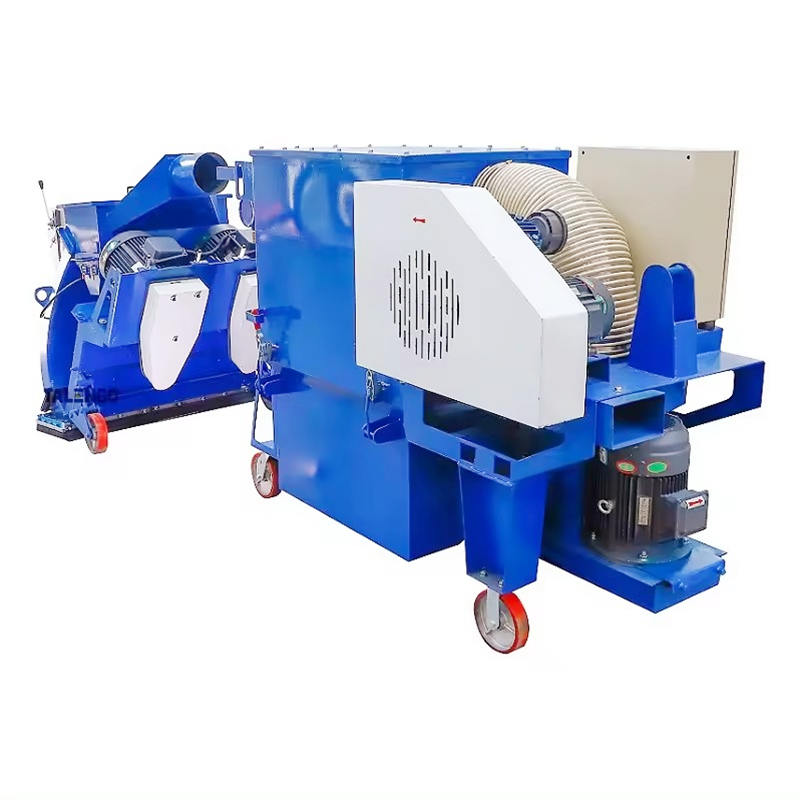

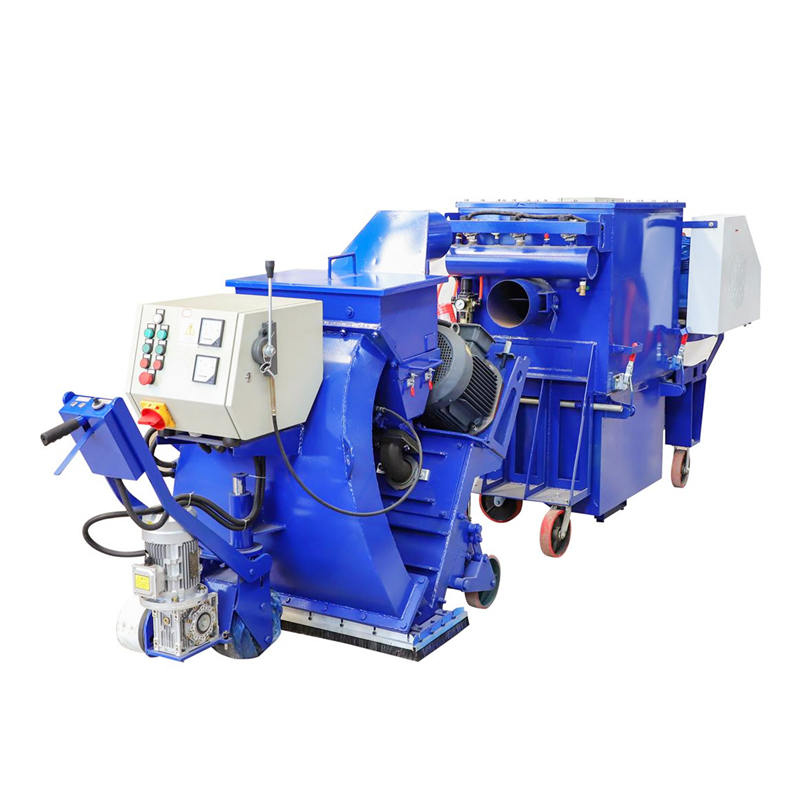

Road Polishing Blasting Used Concrete Floor Surface Shot Blast Cleaning Machine
Features:
1. Floor shot blasting machine is a cost-effective and environmentally friendly method
for preparing concrete and steel surfaces.
2. This labor and time-saving process strips, cleans and profiles simultaneously.
3. It leaves the surface immediately ready for the application of coatings or overlays—eliminating drying time
and costly disposal procedures associated with other surface preparation methods.
4. Shot blasting is the preferred method of surface preparation, recommended by most coating manufacturers.
5. It produces excellent bonding characteristics that promote reduced coating failure and maximum floor life.
Technical Parameters:
Model
|
SF-PWJ270
|
SF-PWJ550
|
SF-PWJ850
|
Working width
|
270mm
|
550mm
|
800mm
|
Walking speed
|
0.5-20m/min
|
0.5-33m/min
|
0.5-33m/min
|
Concrete(steel) surface cleaning efficiency
|
80m³/h
|
80m³/h
|
160m³/h
|
Diameter dust pipe
|
120mm
|
150mm
|
150mm
|
Steel shot diameter
|
1.2-1.5mm
|
1.5-1.8mm
|
1.5-1.8mm
|
Steel shot consumption
|
10g/m²
|
10g/m²
|
10g/m²
|
Dimension
|
1000*300*1100mm
|
2050*725*1460mm
|
1950*1020*1550mm
|
Shot wheel diameter
|
200mm
|
200mm
|
200mm
|

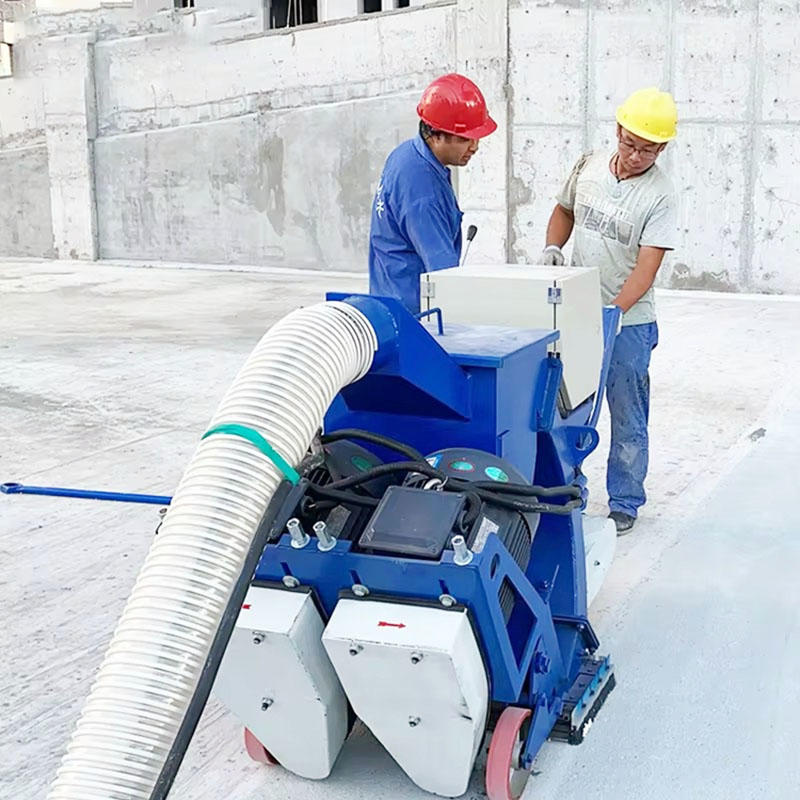

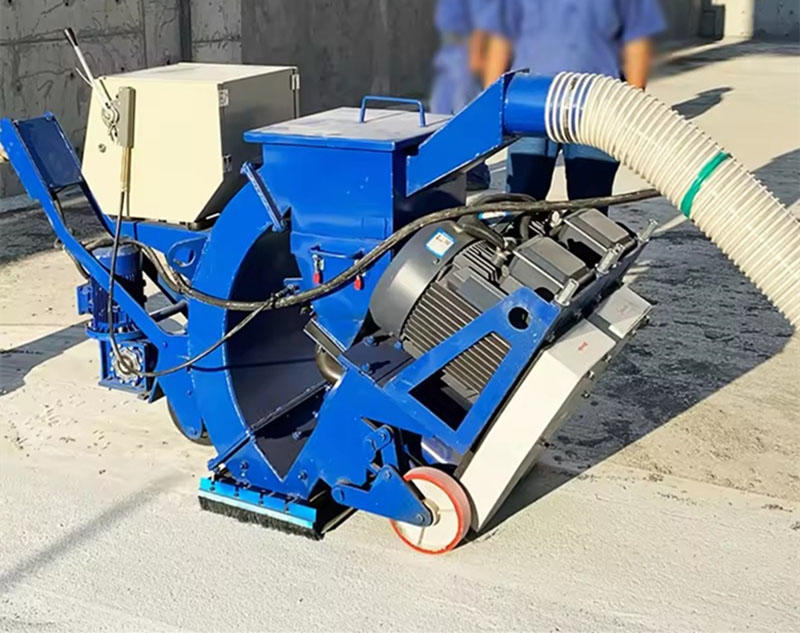

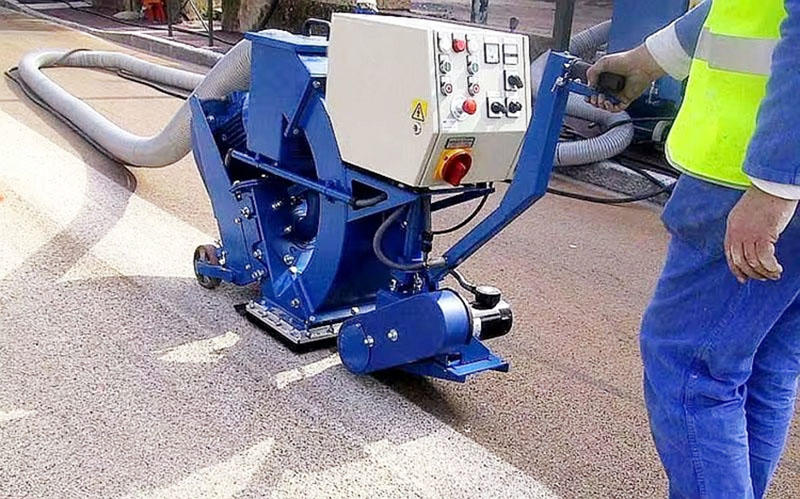

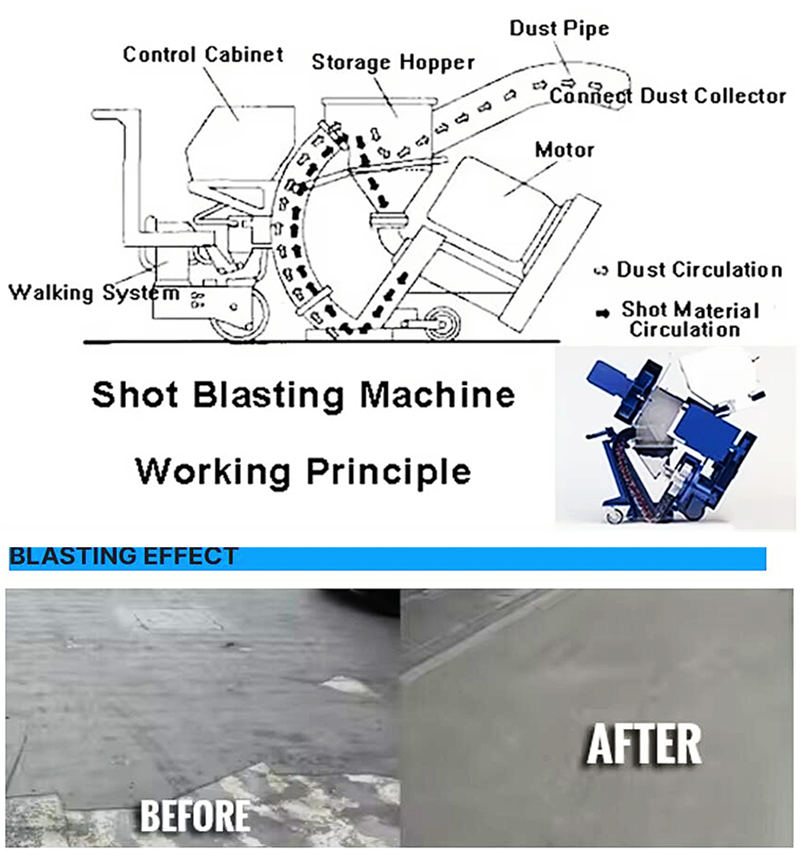

Road Surface shot blasting machine can successively clear away the concrete surface laitance and impurities,
and cando polishing processing to the concrete surface, make its surface achieve uniform roughness.
Greatly improve the adhesive strength of the waterproof layer and concrete base,
so that better combine the waterproof layer and deck.

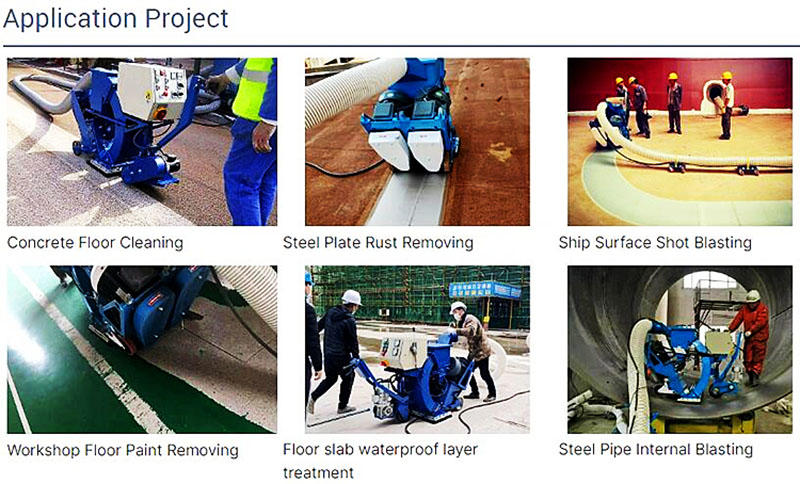

1. It is used to improve the asphalt pavement roughness and friction coefficient,
so as to improve the adhesion of the road surface and ensure the safety of driving.

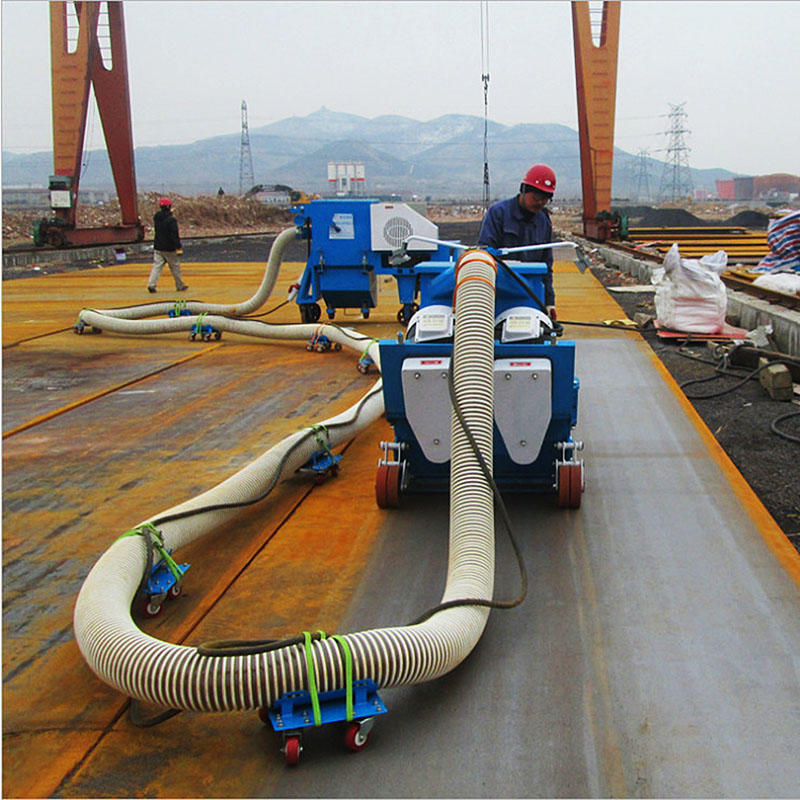

2. Anti-corrosion coating of the steel bridge deck
The application of shot blasting in the anticorrosive coating of steel bridges is undeniable.
Most Bridges under construction and completed construction use a shot blasting machine
for surface cleaning and roughness treatment prior to antiseptic primers or other sprays.
3. Tunnel maintenance
Due to the consideration of waterproof, fire resistance, and oil resistance of materials,
cement concrete is generally used for the pavement inside the tunnel.
4. Preventive maintenance of airport runways
The use of road shot blasting machines makes the removal of tread marks and marking on concrete
and asphalt runway easy and simple.
5. Municipal roads and paved roads
All kinds of road paving in the city can use the shot blasting machine for cleaning treatment.
