Key attributes
Industry-specific attributes
|
Power Type |
Diesel |
|
Max. vertical conveying distance |
150M |
|
Max. horizontal conveying distance |
450M |
|
Productivity |
40M³/H |
Other attributes
|
Applicable Industries |
Building Material Shops, Machinery Repair Shops, Construction works |
|
Showroom Location |
None |
|
Place of Origin |
Zhejiang, China |
|
Weight |
3700 kg |
|
Warranty |
6 Months |
|
UNIQUE SELLING POINT |
Imported hydraulic system |
|
Machinery Test Report |
Provided |
|
Video outgoing-inspection |
Provided |
|
Marketing Type |
Ordinary Product |
|
Warranty of core components |
1 Year |
|
Core Components |
Bearing, Pump, Engine |
|
Condition |
New |
|
Brand Name |
Sanfine |
|
Dimension(L*W*H) |
4800X1750X1900 mm |
|
Delivery time |
15 days |
|
Packing |
Container |
|
Plaster thickness |
≤40mm |
|
Function |
Concrete Pumping |
|
Pressure |
12Mpa |
|
Hopper capacity |
600L |
|
Discharge port inside diameter |
150 mm |
|
Inside diameter |
125 mm |
Packaging and delivery
| Packaging Details | Each set with wooden box, more than 2 sets , color can be customized.
|
Supply Ability
| Supply Ability | 100 Set/Sets per Month |
Lead time
| Quantity (sets) | 1 - 1 | 2 - 2 | > 2 |
| Lead time (days) | 12 | 15 | To be negotiated |
Product descriptions from the supplier
Overview
Product Description

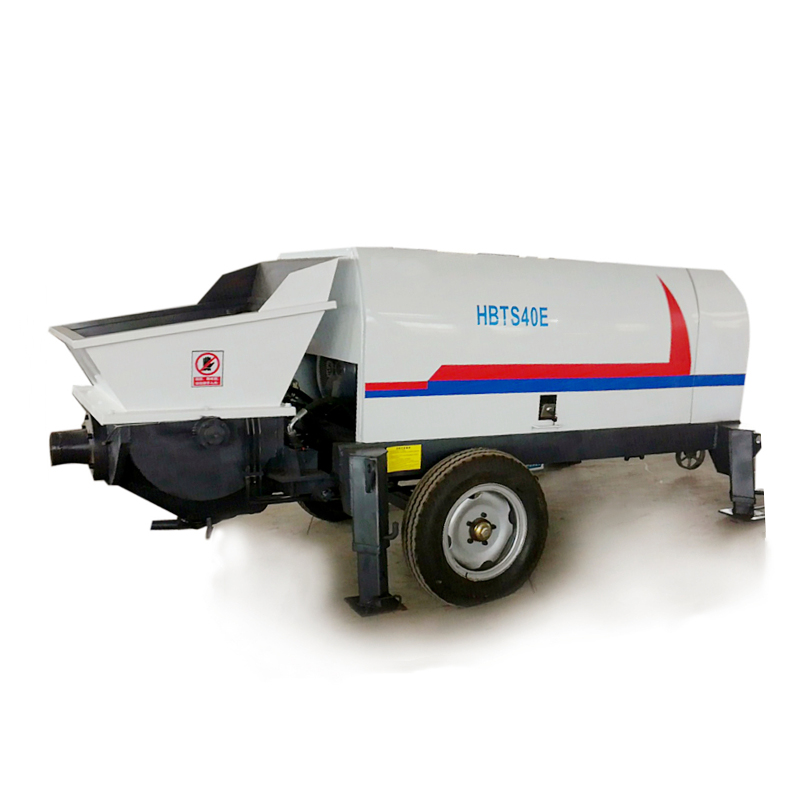

#SF-HBTS40

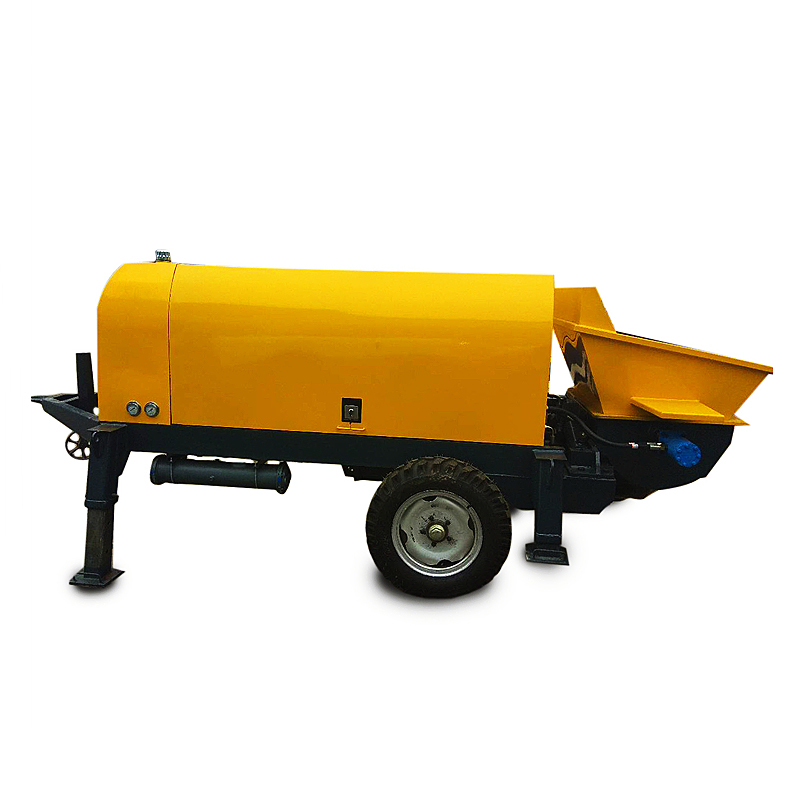

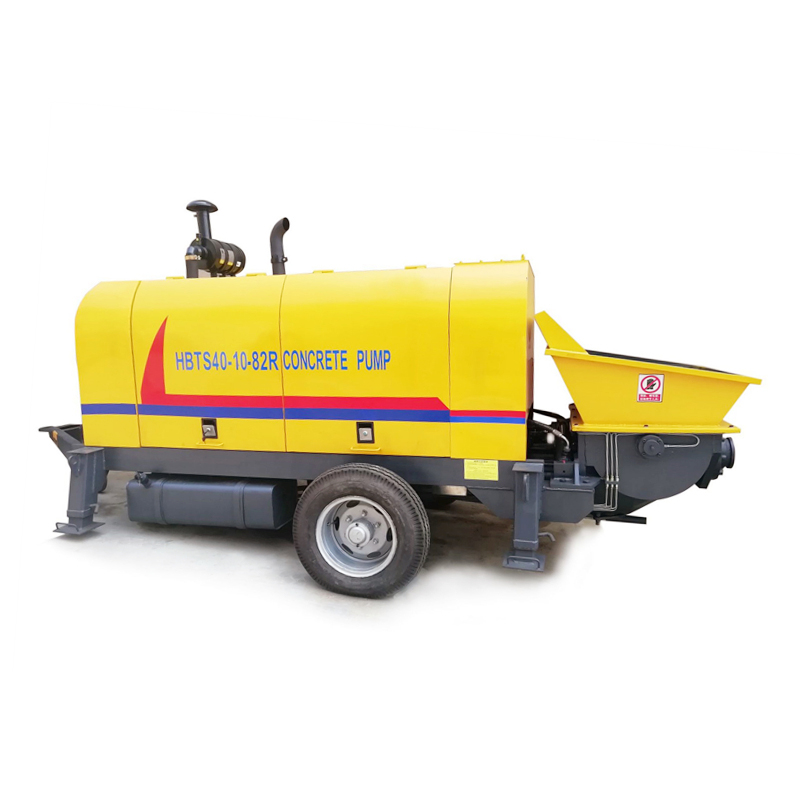

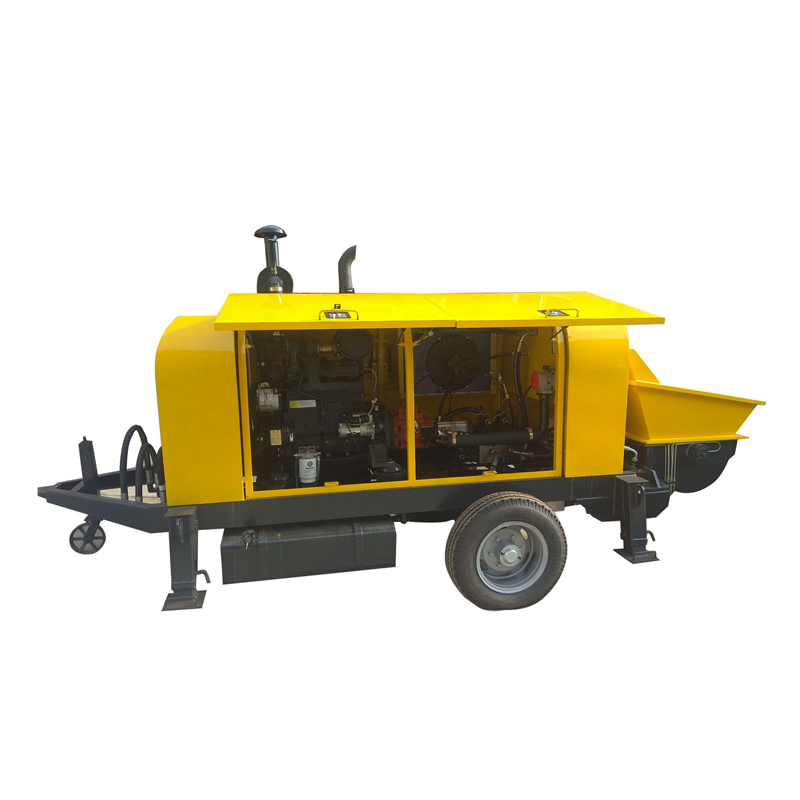

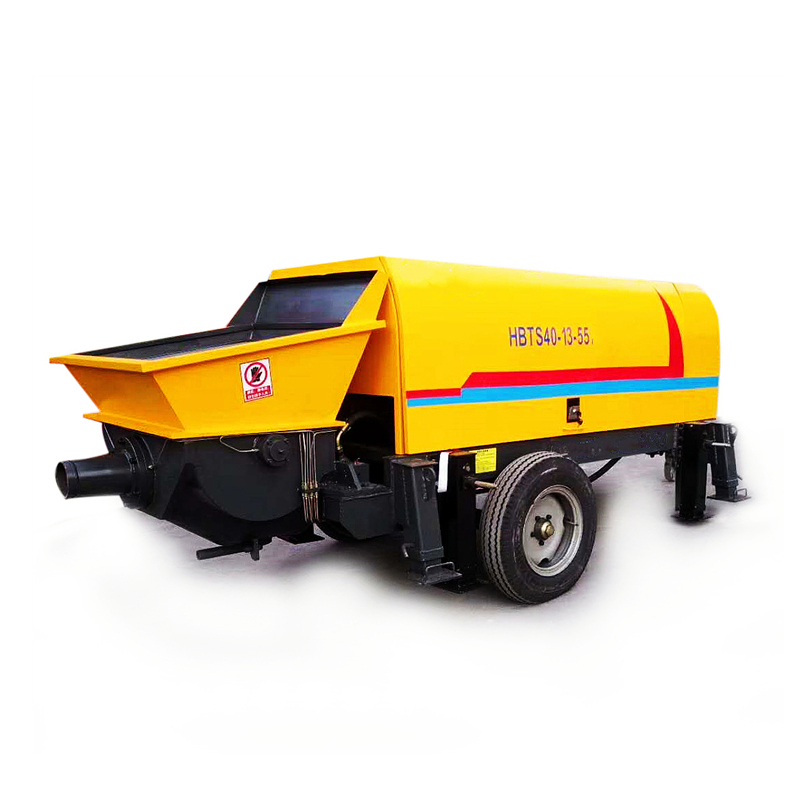

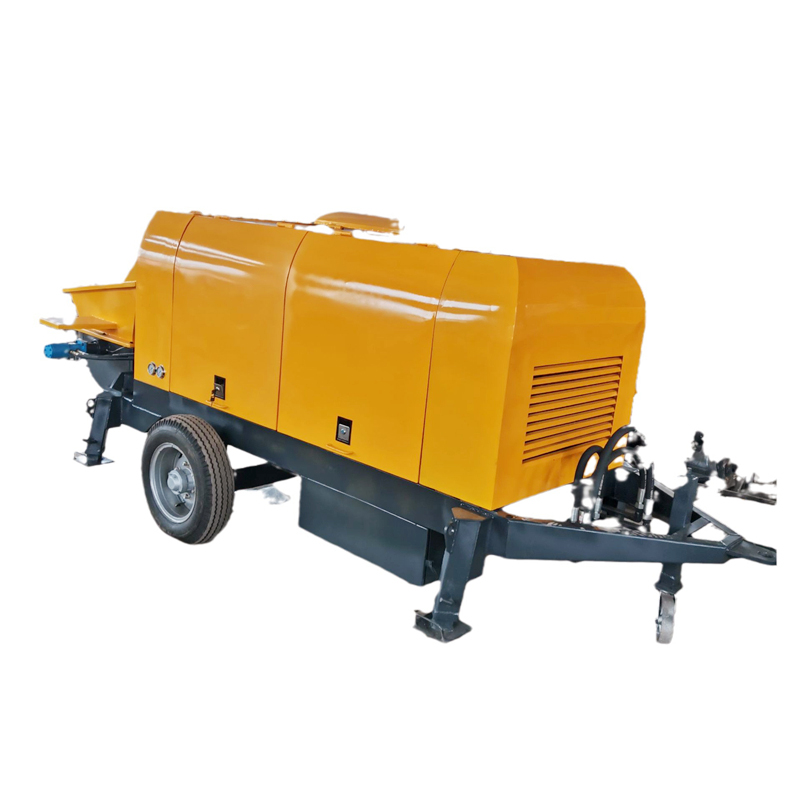

40 Concrete Pumps Concrete Pumping Truck Machine Trailer Mounted Pump
Feature:
1. Reliable performance, smooth operation.
2. High material suction capability, strong pumping capability.
3. Long life S pipe and wearing parts.
4. Advanced hydraulic and electrical systems, safety and reliability.
5. Intelligent control system, high efficiency.
6. Wireless remote control function, more convenient, simple operation.
7. Concrete pump is a small fluid mixture conveying equipment.
|
Project |
Unit |
HBTS20 |
HBTS30 |
HBTS40 |
HBTS50 |
HBTS80 |
|
Maximum theoretical delivery |
m³/h |
10-16 |
15-20 |
18-25 |
30-40 |
80 |
|
Maximum outlet pressure |
Mpa |
10 |
10 |
13 |
13 |
13-16 |
|
Maximum theoretical transport distance |
m |
130/40 |
180/90 |
250/120 |
300/150 |
240/1100 |
|
Motor Power |
kw |
31.7 |
63 |
72 |
55 |
90-110 |
|
Feeding height |
mm |
1200 |
1200 |
1200 |
1350 |
1350 |
|
Pumpable concrete maximum particle size |
mm |
20 |
30 |
≤30 |
≤40 |
≤40 |
|
Most suitable for pumping concrete slump |
cm |
15-23 |
15-23 |
15-23 |
15-23 |
15-23 |
|
Duct inner diameter |
mm |
Φ100 |
Φ100 |
Φ100 |
Φ100 |
Φ125 |
|
Host weight |
Kg |
1400 |
1700 |
2200 |
2980 |
5600 |
|
Dimensions: length * width * height |
mm |
2800*1300*1600 |
3200*1200*1400 |
3600*1200*1500 |
4200*1400*1500 |
5800*1800*2000 |
Conveying Particles:
Concrete pump less than 30 mm fine aggregate concrete with lower investment cost and operating cost,
it is first choice ideal equipment for engineering construction.

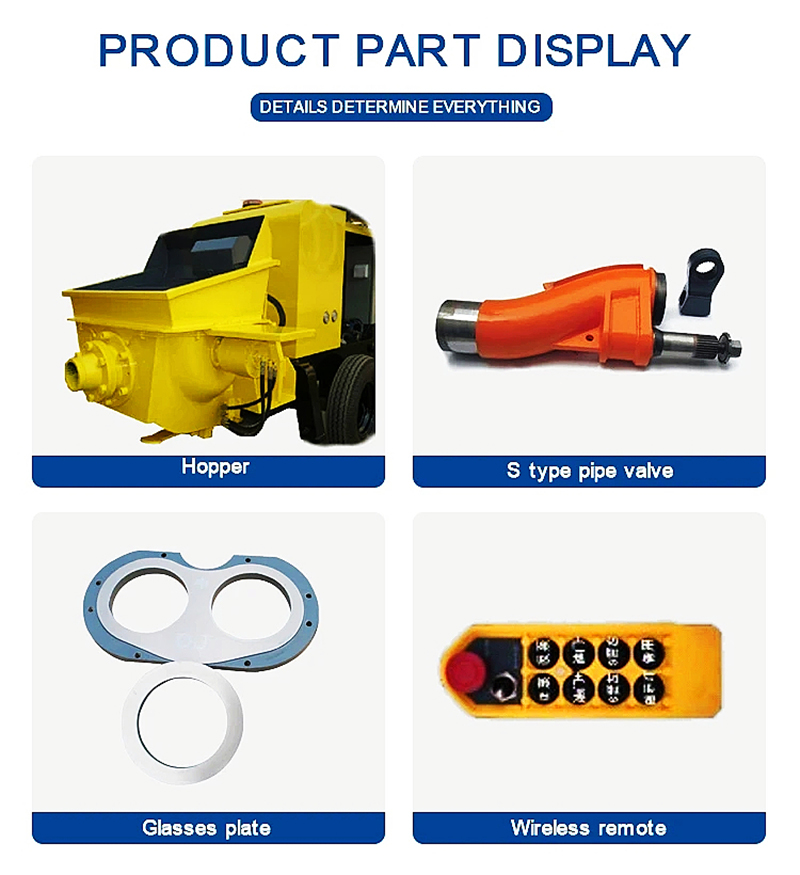

It adopts S tube as distributing valve to meet large aggregate concrete pumping.
The hydraulicdriven mixing device can play the good role of secondary mixing conducive to pumping.
Durable Concrete Pump:
The glasses plate and cutting ring adopt hard alloy material inlay manufacturing with wear resistant.

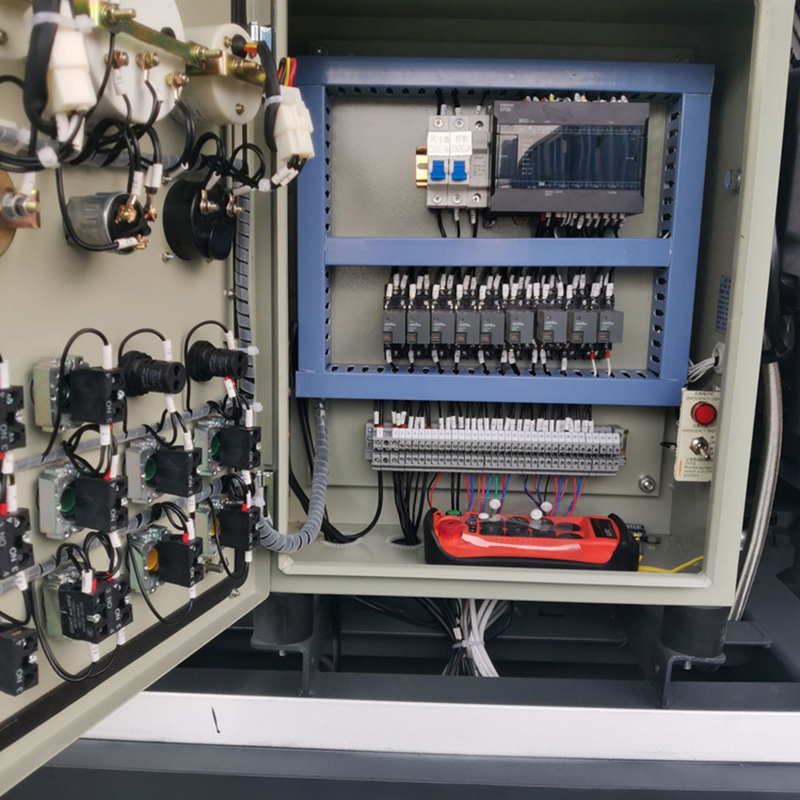

The hydraulic system adopts independent three circuit electro - hydraulic control with high reliability.
Portable Concrete Pump:
Its elegant appearance and light weight is easy to transport;
Working with batching mixing equipment can achieve continuous pumping
construction to improve construction schedule.

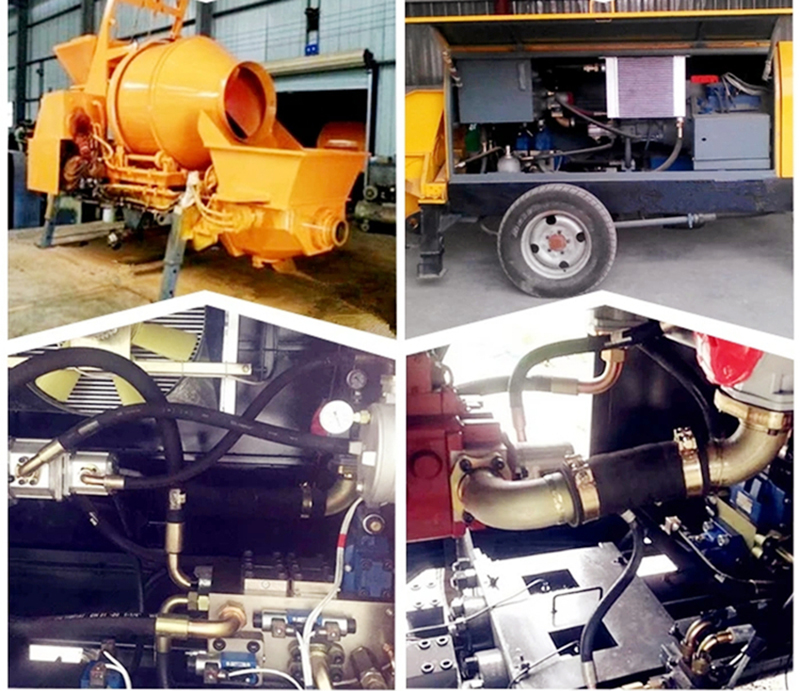

Factory & Workshop
Delivering & Shipping in Sorts of Transportation (Safely and Timely)
1. Samples are available.
2. Small order quantity can be met here.
3. You can see us and our products on the exhibitions home and abroad.
4. Your business relationship with us will be confidential to any third party.
5. A prompt feedback will be submitted against your inquiry within 12 hours.
6. Good after-sale service., well-trained and experienced staff are ready to offer service for you.
Chatting online! Skype ID: sanfinetools
Taizhou Sanfine Tools Co., Ltd. is a company specialized in importing and exporting goods.
It is located in Taizhou city, Zhejiang Province, which is only one hour away from Ningbo Port.
We have an experience of foreign trading for more than 10 years.
The excellent sales and after-sale service team, is supervised by regions and business demands.
We can provided you with multifarious high-quality commodities made in China with professional service.
