Product Description：
#SFP0829

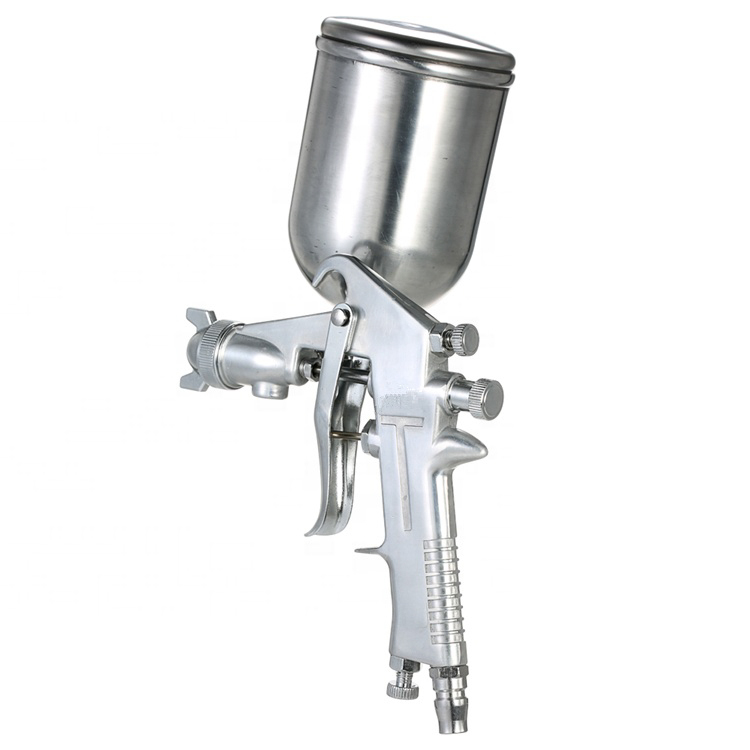

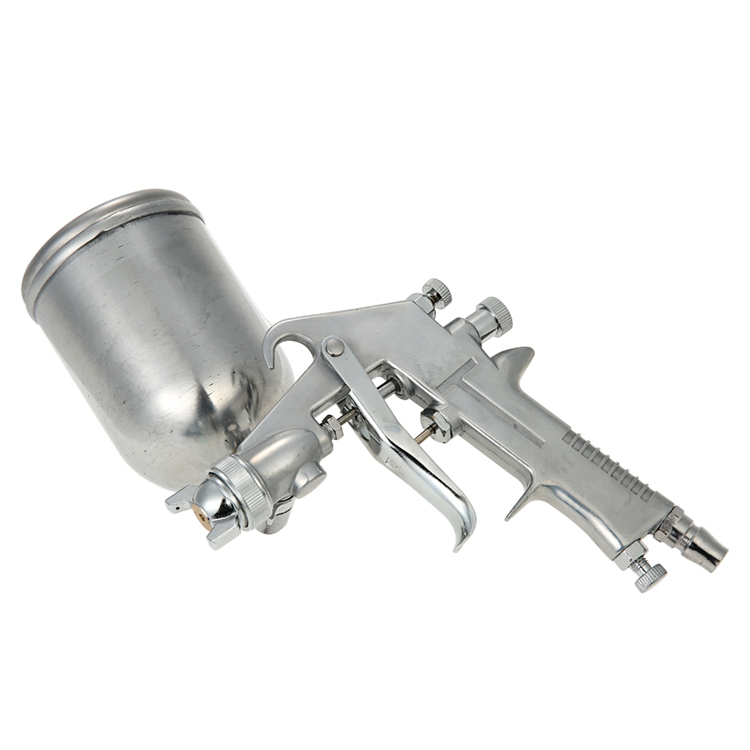

High Pressure Touch Up Air Spray Gun Gravity Paint Sprayer Airbrush for Repairing
Specifications:
Color: Silver
Material: Aluminum + Copper
Nozzle Material: Stainless Steel
Feed Type: Gravity Feed
Application: Paint Spray Gun
Power Type: Pneumatic
Nozzle Diameter: 1.5mm
Atomizing Air Pressure: 0.3-0.5Mpa
Spraying Distance: 170-230mm
Best Spraying Distance: 200mm / 7.87in
Spray Width Size: ±1% 155mm
Inlet Interface: Quick Connect
Air Consumption: 275L/minute
Standard Working Pressure: 35-45PSI
Compressor Required: 2-3HP
Spray Control: External Control
Cup Capacity: 400ml

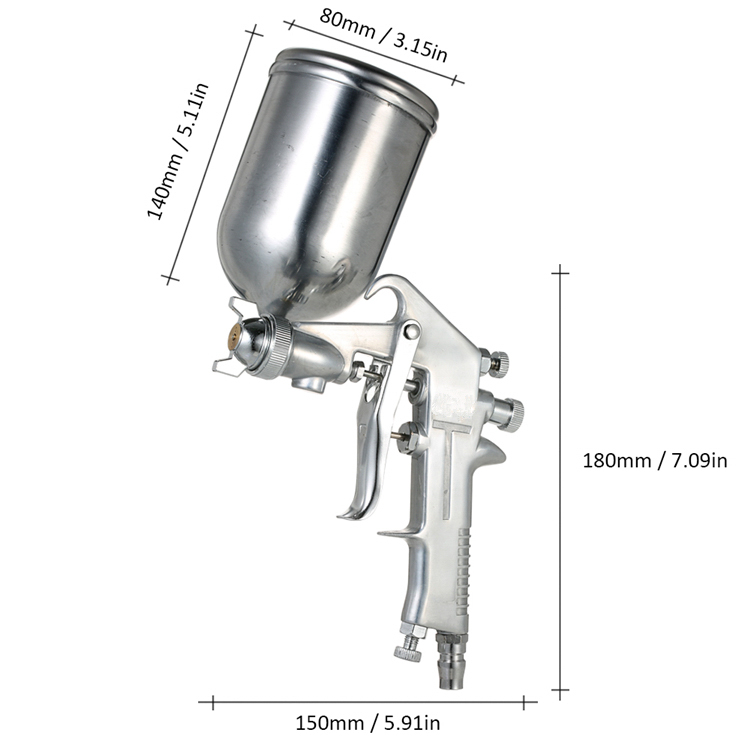

Size of Spray Gun: Approx.150 * 45 * 180mm / 5.91 * 1.77 * 7.09in
Size of the Cup: 140 * 80mm / 5.51 * 3.15in (H * D)
Item Weight: Approx.416g / 14.68oz (With Cup)
Package Size: Approx.19.5 * 15 * 11cm / 7.68 * 5.91 * 4.33in (L * W * H)
Package Weight: Approx.475g / 16.76oz
|
Type |
Gravity |
Pressure |
|
Nozzle size |
1.0, 1.3, 1.5, 1.8mm |
1.0, 1.3, 1.5, 1.8mm |
|
Fluid Outlet |
110~230c.c/min |
170~220c.c/min |
|
Pattern Width |
240~280mm |
260~280mm |
|
Air Cons |
190~210 l/min |
190~210 l/min |
|
Capacity |
250 or 400c.c |
700 or 1000c.c |
|
Air Inlet |
1/4"NPS |
1/4"NPS |
|
Fluid Inlet |
1/4"NPS |
1/4"NPS |
|
Working Pressure |
35 ~ 45psi |
35 ~ 45psi |
|
Gun Weight |
460g |
460g |
|
Packing List |
20pcs/19kg/20kg/2.5 |
10pcs/10.72kg/11.72kg/2 |
Features:

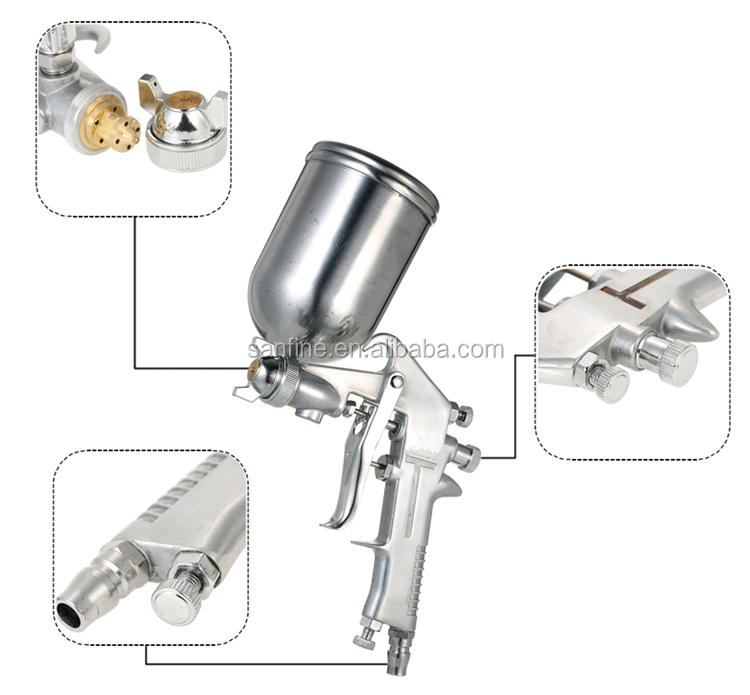

7 Spraying Holes & High Atomisation Spray Hood: Very fine and smooth painting with 360°rotated to use freely.

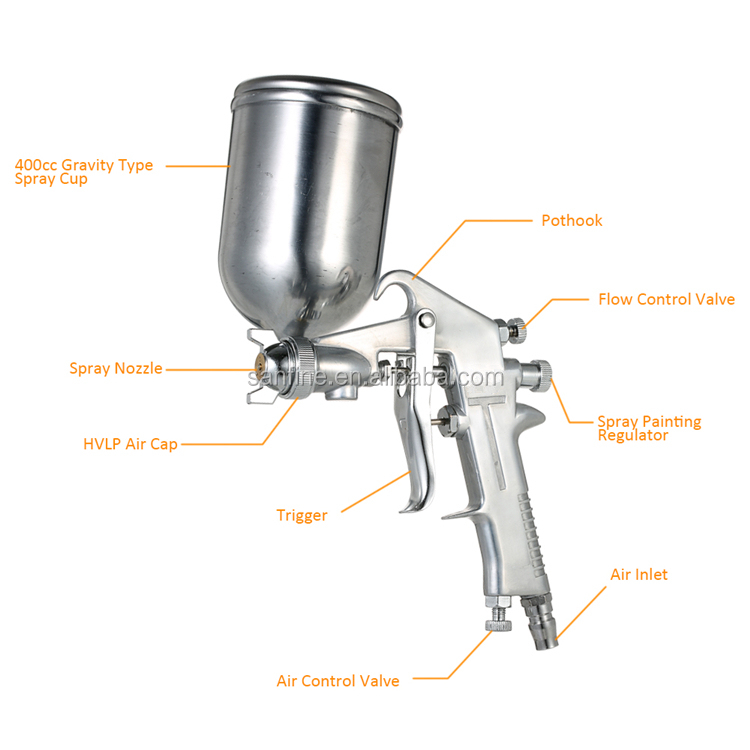

With 3 Built-in Control Knobs: Fluid control regulates amount of paint sprayed, Pattern control adjusts the fan pattern size, and air adjustment valve provides versatility to adjust air flow.
Multi-purpose Precision Airbrush: With stainless steel 1.5mm fluid needle and nozzle, corrosion resistant.
Large Capacity of 400ml Gravity Feed Cup: Can meet different needs of nice and effective spraying.
Wide Range of Applications: Widely used in industrial products painting, furniture painting, wall painting, decoration painting, cars painting, factory spray paint.
This professional spray gun is excellent for detail painting with gravity feed type. With 1.5mm stainless steel fluid needle and nozzle, this versatile spray gun can handle water-based paint and dilute solvent-based paint. The in-built regulator ensures that you get the perfect flow of paint every time. This optimized flow rate means your operating costs will be reduced - no more wasted paint.
