Key attributes
Industry-specific attributes
Type |
Airless Spray Gun |
Application |
Paint Spray Gun |
Cup Volume |
Optional |
Other attributes
Power Source |
Electric |
Place of Origin |
Zhejiang, China |
Grade |
DIY, Industrial |
Warranty |
1 years |
Customized support |
OEM, ODM, OBM |
Brand Name |
Sanfine |
Model Number |
SFP8900E |
Max. Nozzle Size |
0.048 (inch), 521--621 |
Color |
Customerized |
Certificate |
CE ROHS |
Power |
Electricity, Engine |
Packing |
Strong Wooden Box |
Pump type |
Piston Pump |
Working pressure |
227 Bar (3300psi) |
Max flow |
8-10L/min |
Voltage/frequency |
220V 50HZ / 110V 60HZ |
Motor power |
6.5HP (4875W) |
Packaging and delivery
Selling Units: |
Single item |
Single package size: |
56X55X65 cm |
Single gross weight: |
62.000 kg |
Product descriptions from the supplier
Overview
Product Description

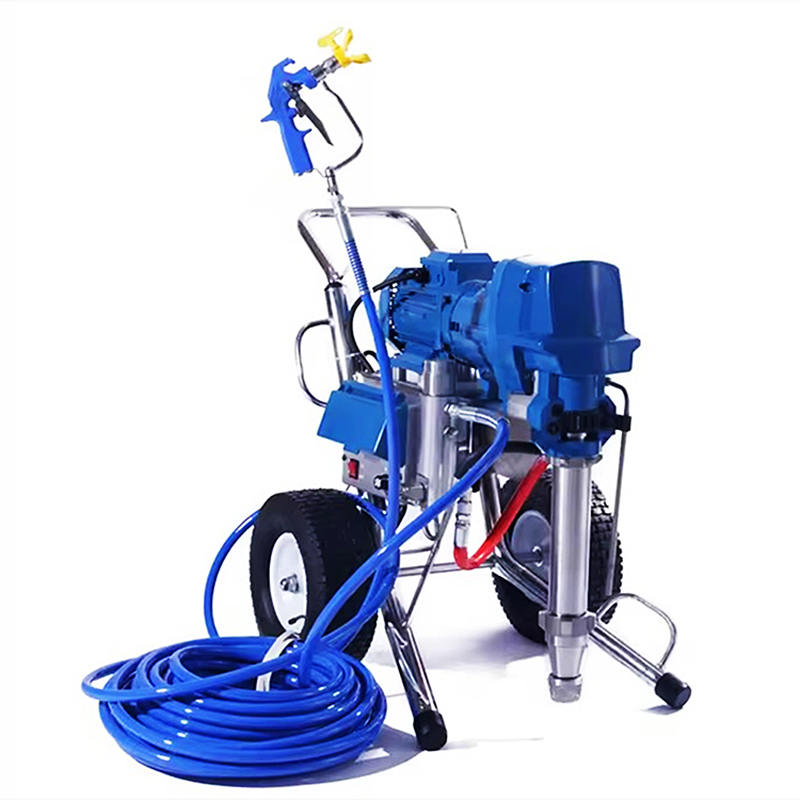

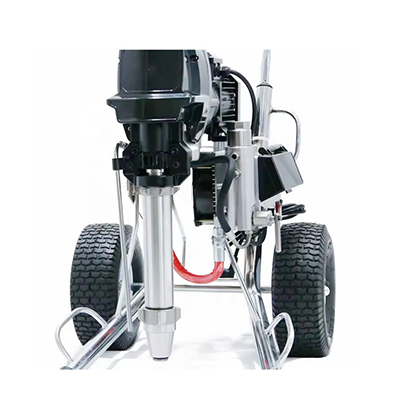

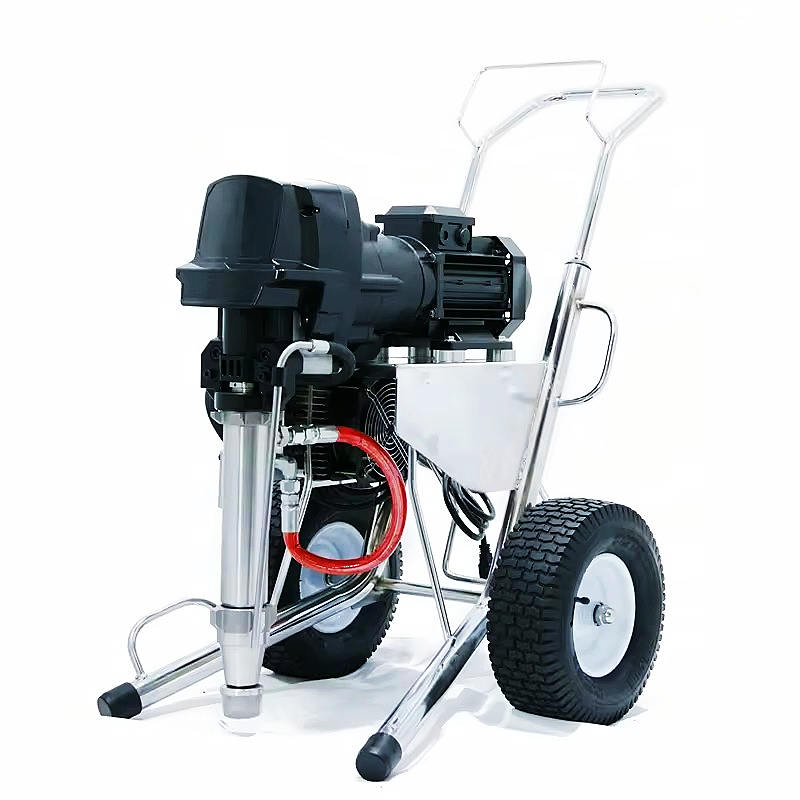

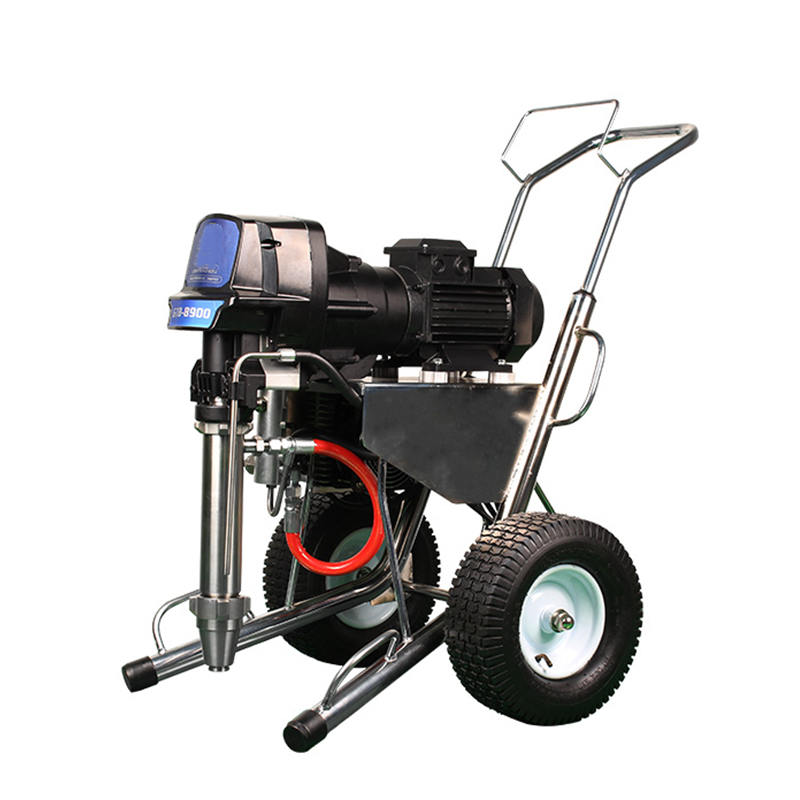

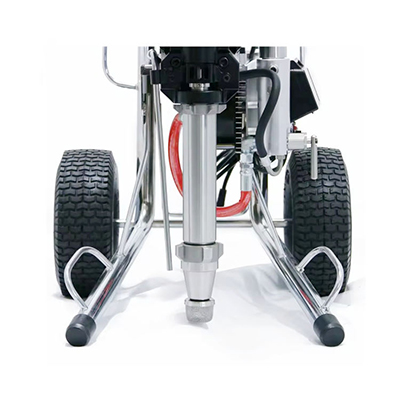

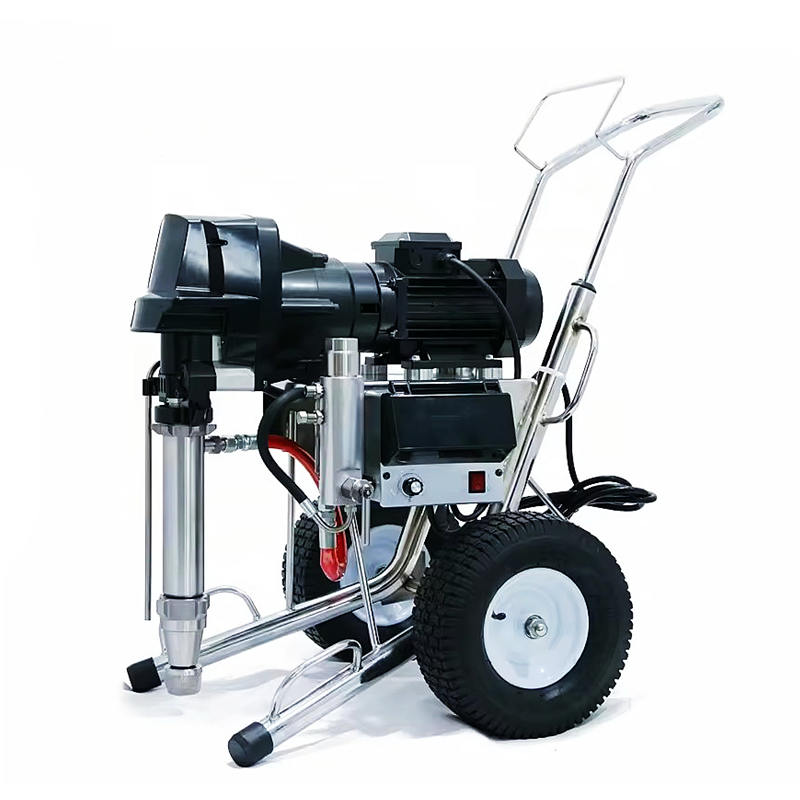

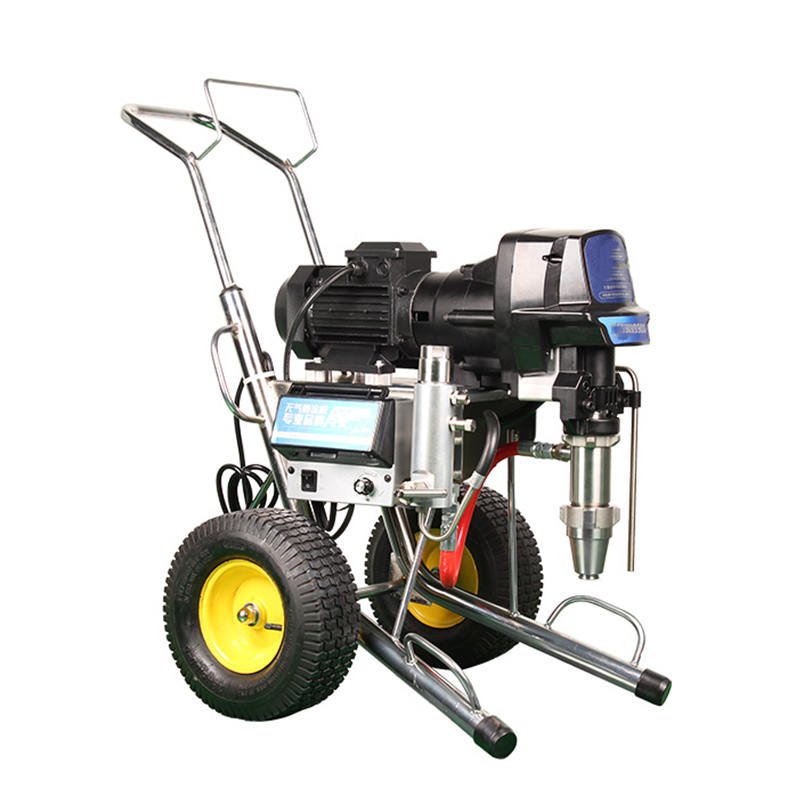

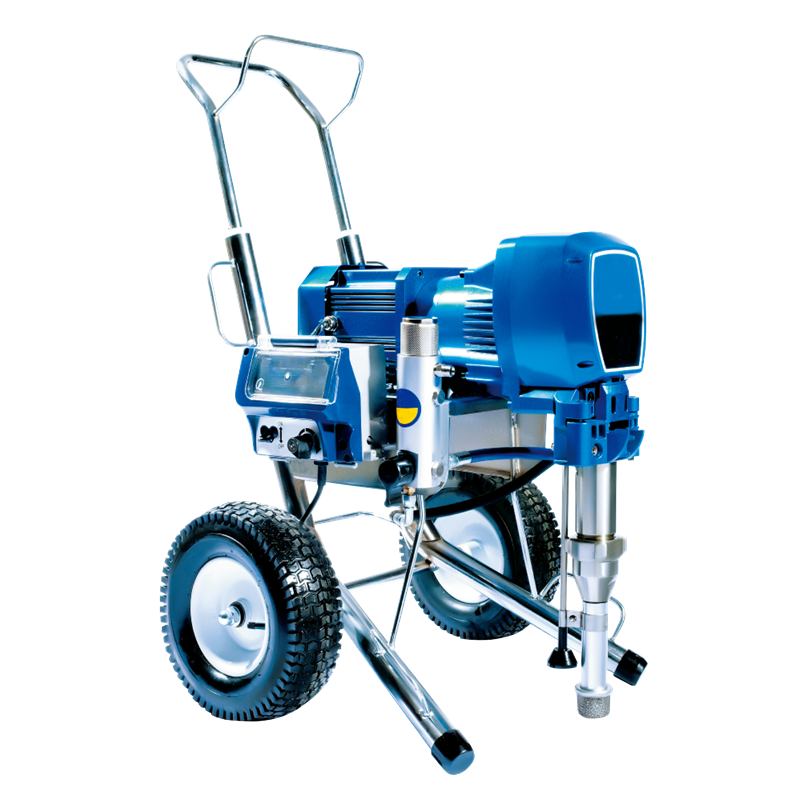

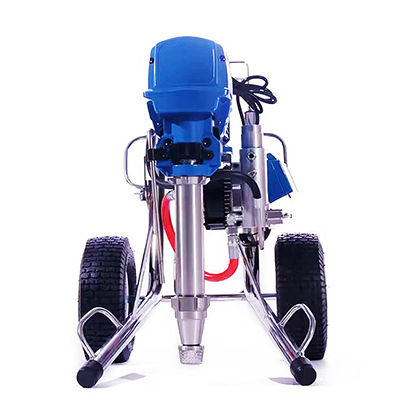

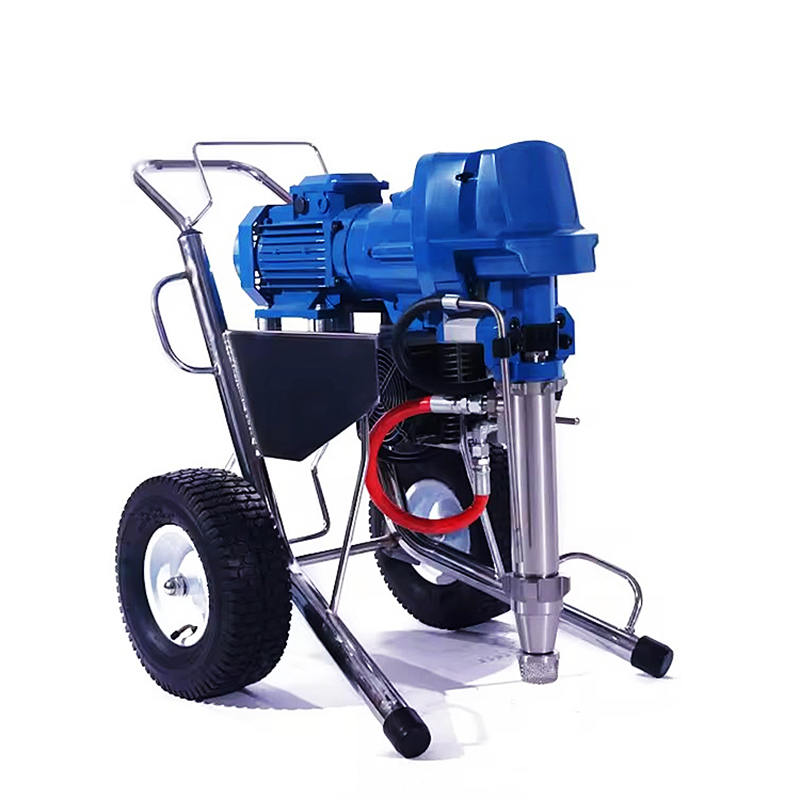

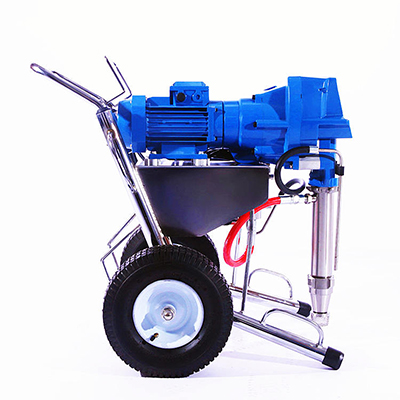

#SFP8900E
Putty Sprayer Piston Pump Texture Paint Equipment Wall Coating Putty Spraying Machine
Features:
1. Excellent cooling system
2. Unique hydraulic motor/pump, Hydraulic tank
3. Omni-directional paint filter, Unique structural design
4. Support multiple spray guns at the same time, Honda high horsepower engine
5. Stable performance when spraying, can spray thick putty and high viscosity materials,
can be connected to long high pressure pipeline
6. Rugged and in line with construction site requirements, it is the best choice for large construction
projects and high viscosity materials.
Tip Size |
1or 2 guns with 0.035 in tip |
|
Max. Dispense Rate |
6.5lpm |
|
Max. Working Pressure |
3300 psi |
|
Horse Power |
4800-5500W |
|
Hose Length |
15m (49.2ft) |
|
Weight |
65kg (146 lb) |
|
Pump Type |
piston pump |
|
Inlet Paint Strainer |
12 mesh stainless steel screen, reusable |
|
Outlet Paint Filter |
60 mesh stainless steel screen, reusable |
|
Sound Power |
105 dBa per ISO 3744 |
|
Sound Pressure |
96 dBa measured at 3.1 ft |
|
Pump Inlet Size |
1–5/16–12 UN-2A |
|
Fluid Outlet Size |
3/8 npsm from fluid filter |
|
Wetted Parts |
zinc-plated carbon steel, PTFE, nylon, polyurethane, UHMW polyethylene, fluoroelastomer, acetal, leather, aluminum, tungsten carbide, nickel- and zinc-plated carbon steel, stainless steel, chrome plating |
Commonly used spraying:
Putty powder, acrylic acid, Latex paint, Fireproof Materials, Epoxy paint, Interior and exterior wall coating, paint.
Applications:
Construction, home decoration construction, color tile industry, water-based,
oil-based paint construction, steel surface, epoxy floor, marine paint spraying construction
Feature:
1. The most powerful electric airless texture sprayer.
2. The SFP8900 is the sprayer of choice for serious professional contractors
with nearly double the output of the Mark V. It easily sprays skim coat in a Level 5 finish,
multiple texture finishes and the all primers and paints.
3. SFP8900 Electric airless texture sprayers provide unmatched durability and performance,
with the capability to handle the widest range of tip sizes, longer hose lengths and heavier coatings.
Spraying Technique:
CAUTION: DO NOT STOP WHEN SPRAYING.
Spraying materials will start to set and dry,as soon as they come in contact with the air.
They will cause a permanent clog if not cleared.
If discontinuing spraying for more than half an hour, turn off the air supply,
disconnect Cup from Gun Body and throughly rinse Cup and Gun Body with fresh, clean water.
Paint Preparation and Filling:
1. Thread the Cup to the Gun Body and tighten until the Cup is securely in place.
2. Thin the paint according to manufacturer's directions and mix thoroughly.
3. Carefully strain the paint through a paint strainer or a piece of cheesecloth.
Note:
Proper paint mixture is essential. Follow the manufacturer's directions.
Most paints will spray easily if they are thinned properly.

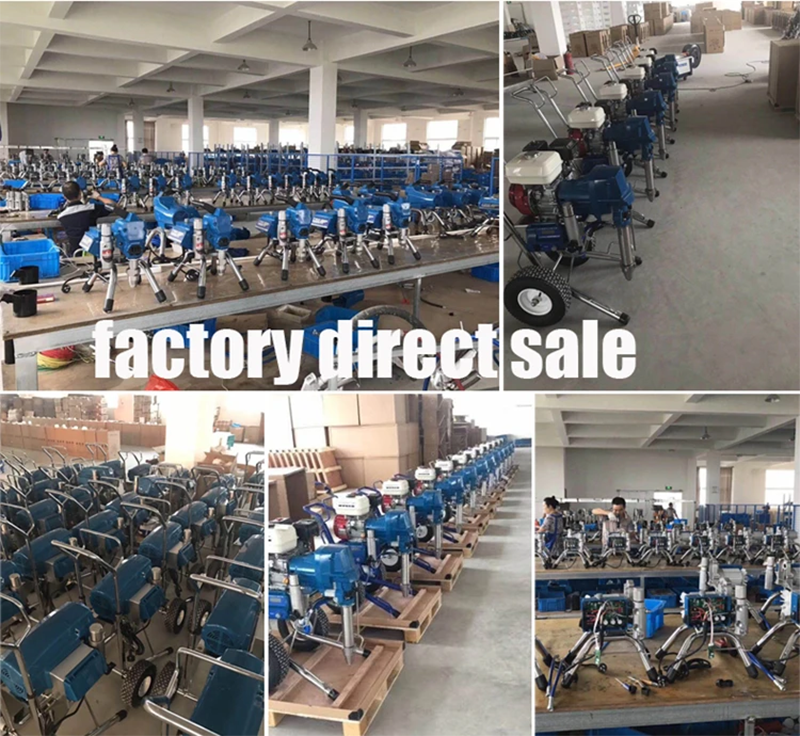

Factory & Workshop
Packaging & Shipping
Delivering & Shipping in Sorts of Transportation (Safely and Timely)
1. Samples are available.
2. Small order quantity can be met here.
3. You can see us and our products on the exhibitions home and abroad.
4. Your business relationship with us will be confidential to any third party.
5. A prompt feedback will be submitted against your inquiry within 12 hours.
6. Good after-sale service., well-trained and experienced staff are ready to offer service for you.
Chatting online! Skype ID: sanfinetools
Taizhou Sanfine Tools Co., Ltd. is a company specialized in importing and exporting goods.
It is located in Taizhou city, Zhejiang Province, which is only one hour away from Ningbo Port.
We have an experience of foreign trading for more than 10 years.
The excellent sales and after-sale service team, is supervised by regions and business demands.
We can provided you with multifarious high-quality commodities made in China with professional service.
