Key attributes
Industry-specific attributes
|
Max. vertical conveying distance |
40M |
|
Max. horizontal conveying distance |
70M |
|
Hopper Capacity |
30l |
Other attributes
|
Applicable Industries |
Construction works |
|
Showroom Location |
None |
|
Place of Origin |
Zhejiang, China |
|
Weight |
120 kg |
|
Warranty |
6 Months |
|
UNIQUE SELLING POINT |
High operating efficiency |
|
Machinery Test Report |
Provided |
|
Video outgoing-inspection |
Provided |
|
Marketing Type |
Ordinary Product |
|
Warranty of core components |
6 Months |
|
Core Components |
Motor, Pump |
|
Condition |
New |
|
Application |
Spraying |
|
Brand Name |
Sanfine |
|
Dimension(L*W*H) |
M5:140X60X85cm |
|
Power |
380V |
|
Color |
Customer's Requirements |
|
Maximum flow rate |
40 L/Min |
|
Packing |
Wooden Packing |
|
Plaster thickness |
6mm |
|
Function |
Motar Plastering Machine |
|
Pressure |
50Bar |
|
Type |
Rotor and Stator |
|
Motor Power |
4.0KW |
Lead time
|
Quantity (sets) |
1 - 2 |
3 - 4 |
> 4 |
|
Lead time (days) |
8 |
10 |
To be negotiated |
Product descriptions from the supplier
Overview
Product Description

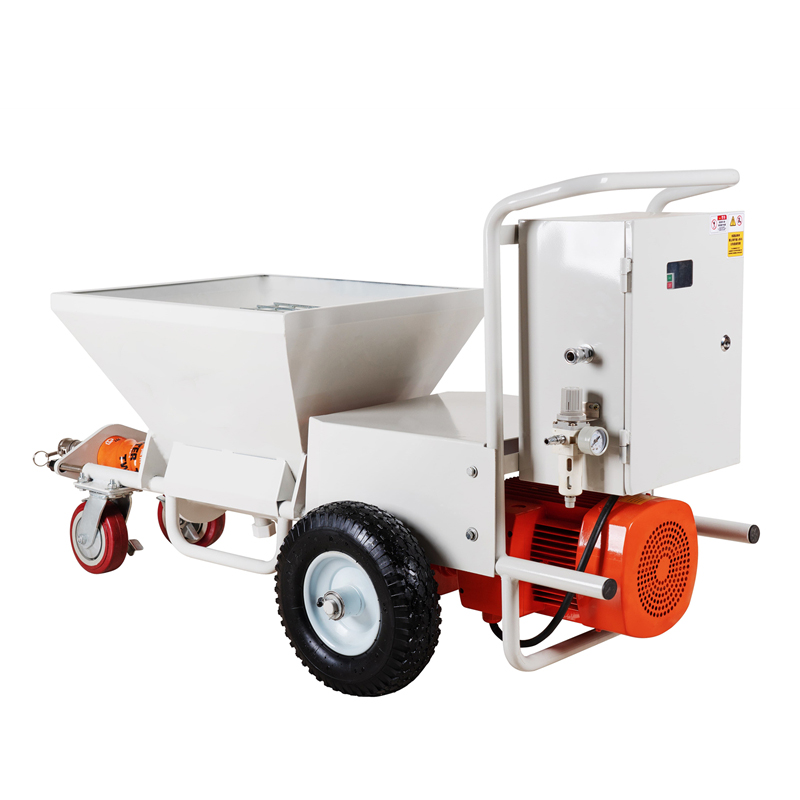

#SFP08M5

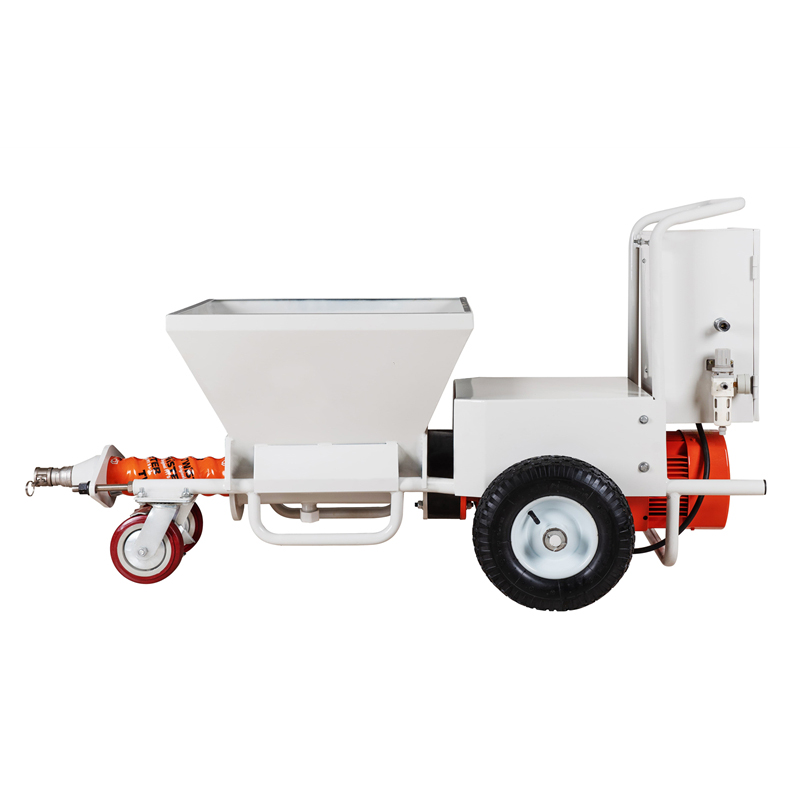

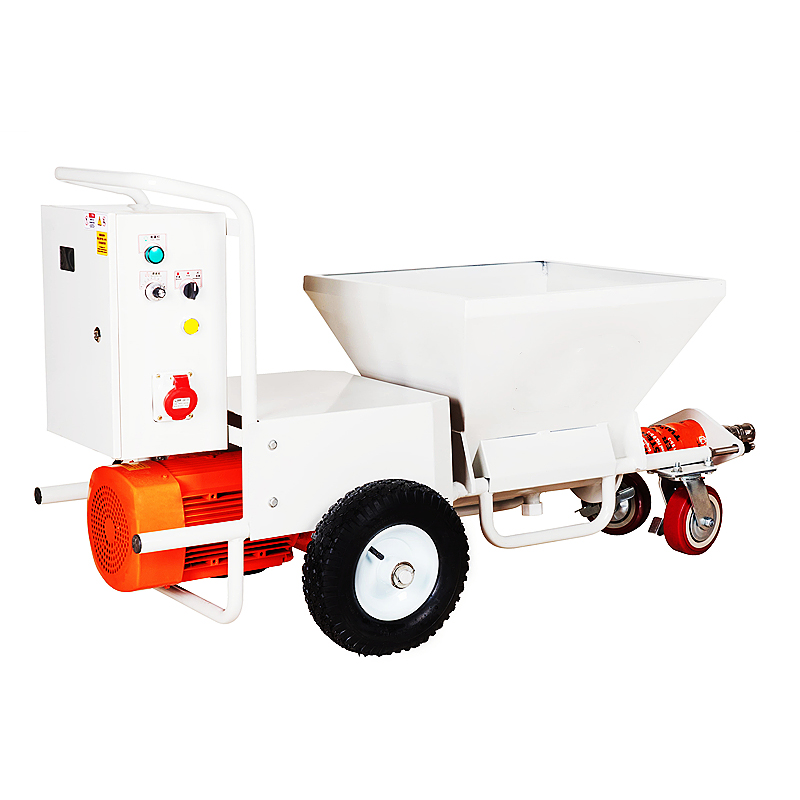

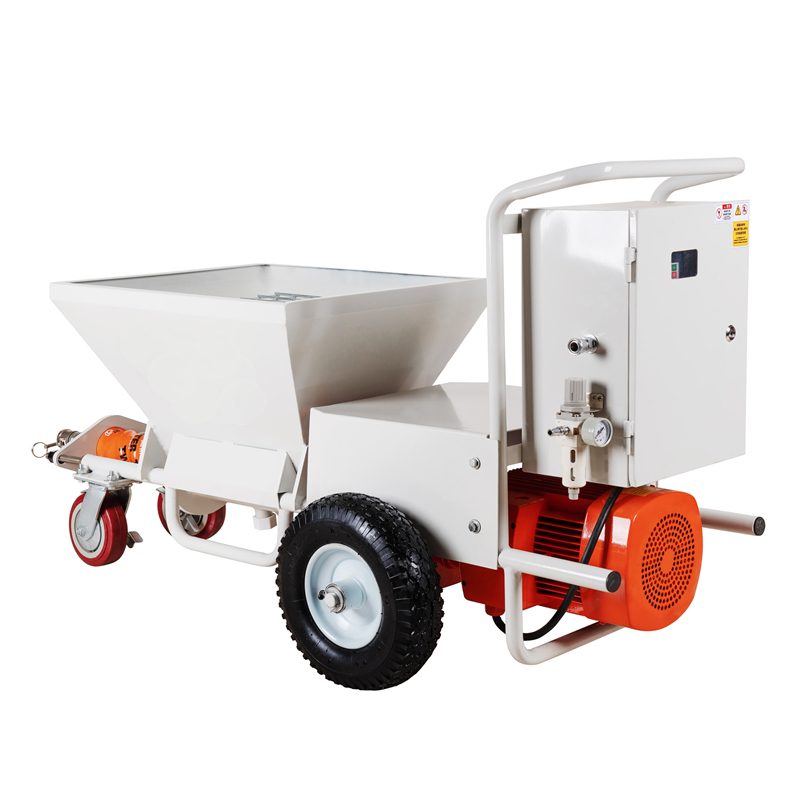

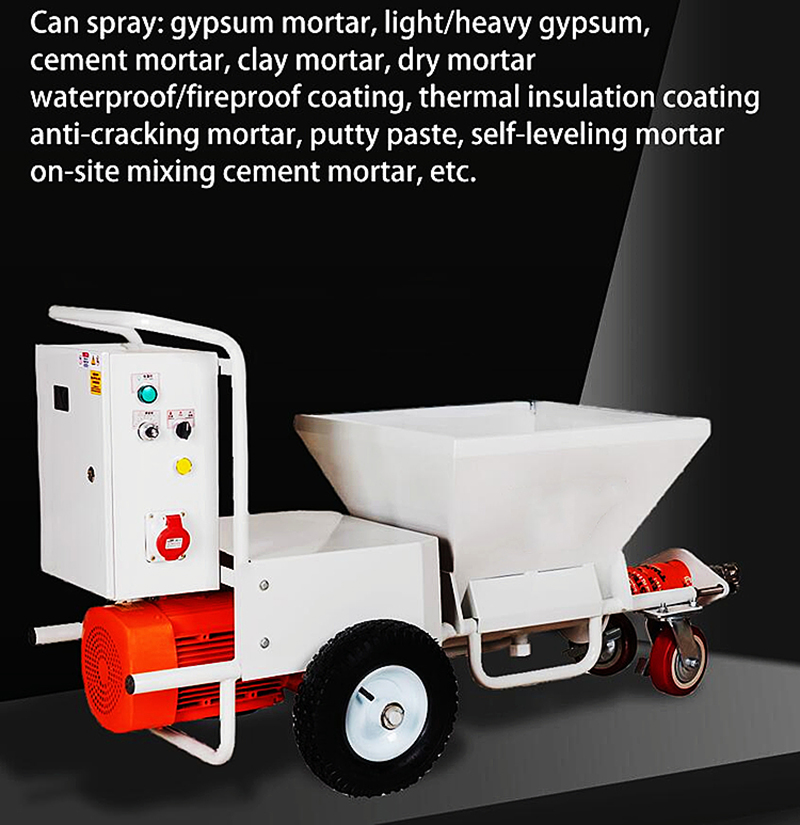

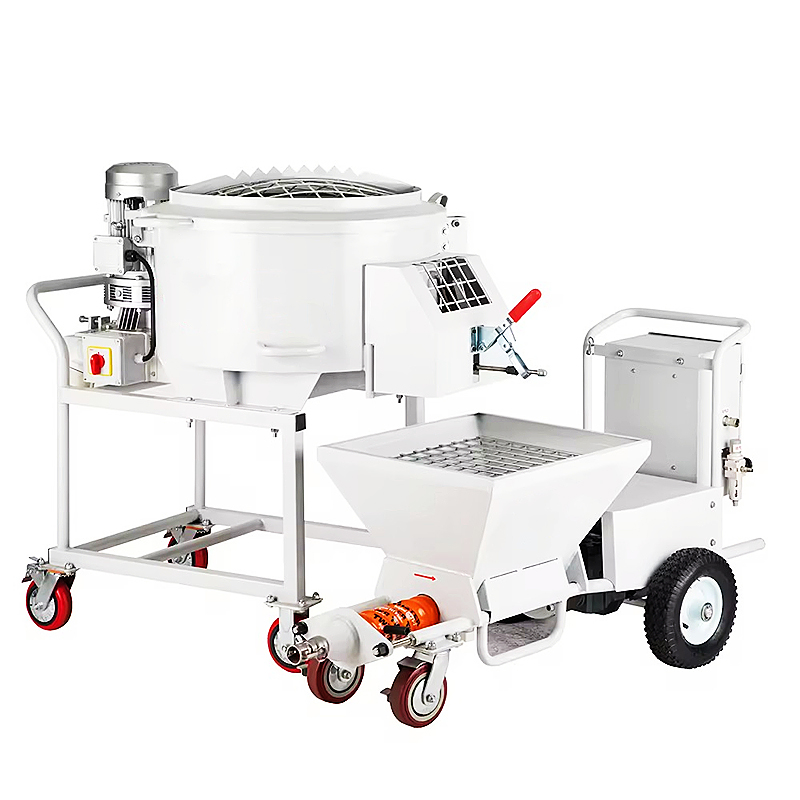

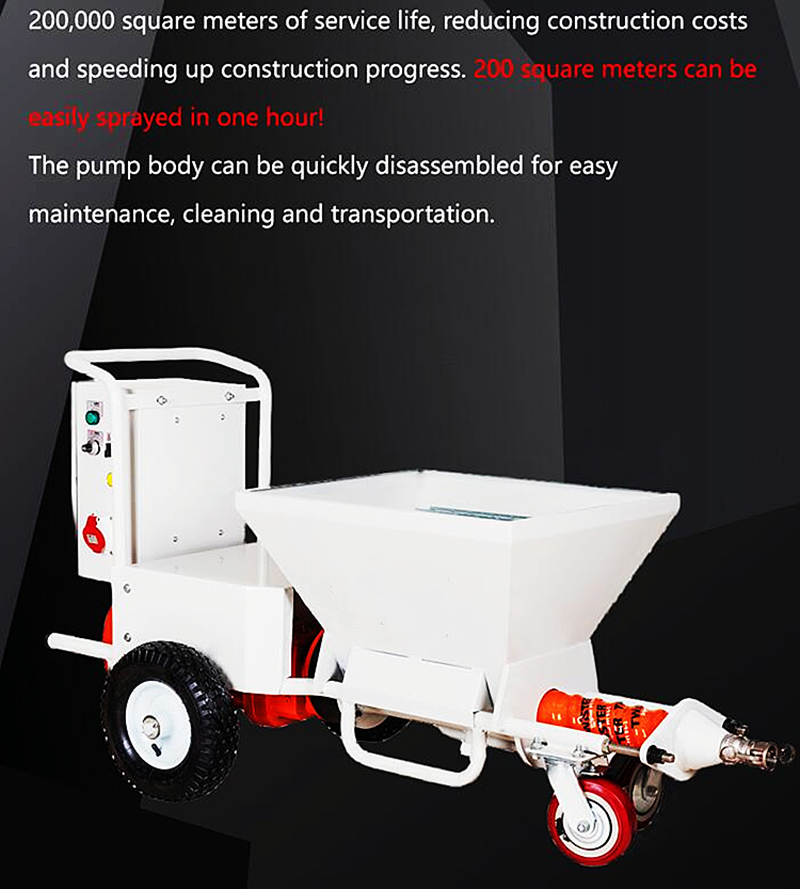

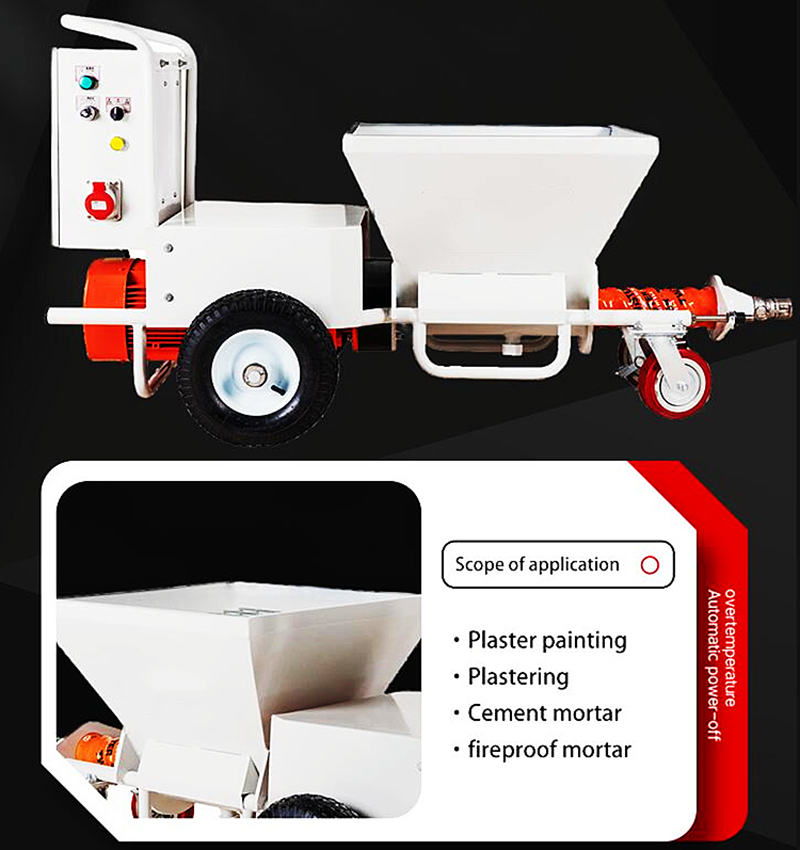

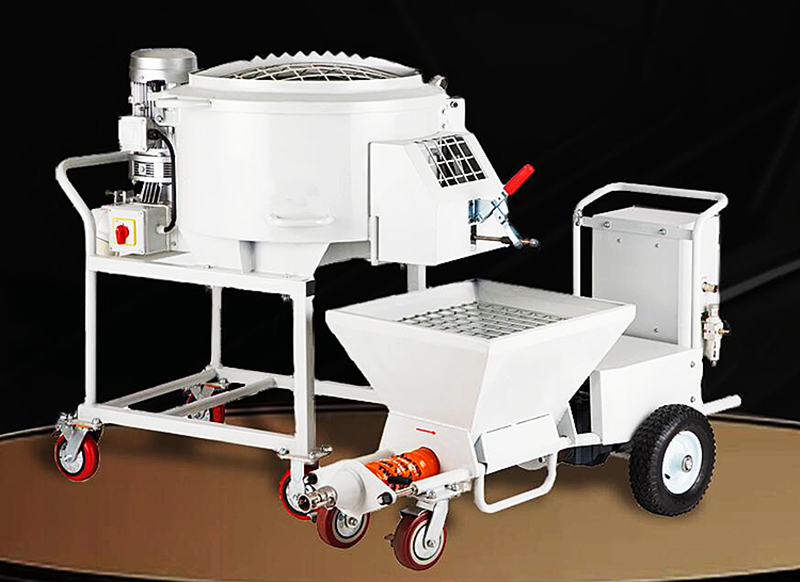

Screw Pump Cement Sprayer Mortar Spraying Machine with Mixer Equipment
1. Voltage: 380v/50Hz. Motor power: 4000W
2. Air compressor power: 3000W. Working pressure: 50Bar
3. Max. flow: 30-35L/MIN. Max pellets: <=6mm. Hopper capacity: 55 L
4. Vertical pump feeds distance: 40m. Horizontal pump feeds distance: 70m
5. High-pressure tube + Air tube: 10M. Function: Spraying & grouting
Parameter:
|
Model
|
SFP08M5 (Requested 5.5kw, 0.6m3/min Air Compressor)
|
|
Rated voltage
|
380V/50HZ
|
|
Pressure Hose
|
10 m
|
|
Nozzle 4pcs
|
4mm*1pc,6mm*1pcs ,8mm*1pcs,10mm*1pcs
|
|
Motor Power
|
4000W
|
|
Max. flow rate
|
35.00 L / min
|
|
Max. spraying height
|
40m
|
|
Spray max. Particle
|
5mm
|
|
Hopper capacity
|
55L
|
|
Net /Gross Weight
|
100KG/120KG
|
|
Carton Size
|
140x60x85cm
|
|
Configure
|
1pcs Spray Gun, 4pcs Spray Nozzle, 1pcs-10meter Hose
|

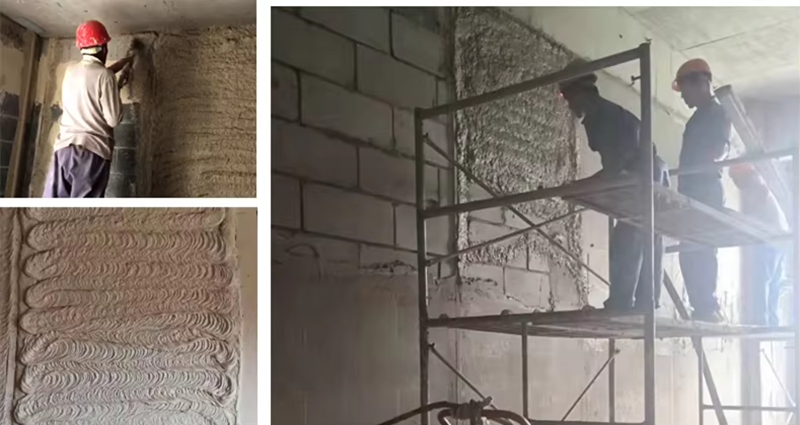

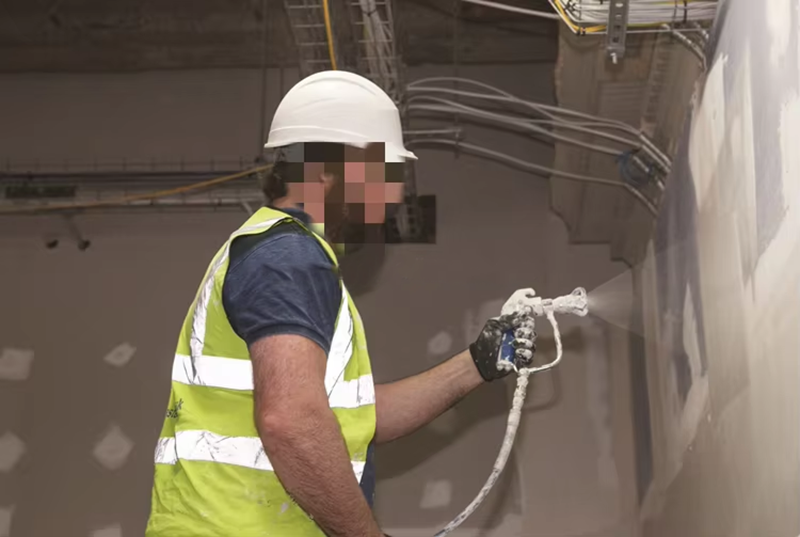

Suitable for:
expansion joint leakage, settlement joint leaks, subway, tunnel leakage, leakage of dam leakage,
ground level ground, cracks, empty drum reinforcement, indoor and outdoor coating, cement mortar spraying,
dry mortar spraying, putty powder coating and so on...
