Key attributes
Industry-specific attributes
|
Type |
leveling machine |
|
Feature |
durable |
|
Power Source |
Diesel or Petrol |
|
Application |
Land ground pouring |
Other attributes
|
Place of Origin |
Zhejiang, China |
|
Brand Name |
Sanfine |
|
Warranty |
1 year |
|
Customized support |
OEM, ODM, OBM |
|
Model Number |
SF-HA400L |
|
Paving method |
Hydraulic auger paving |
|
Working speed |
3m-30m/min(speed adjustable) |
|
Dimension(Long * Breadth * High) |
3500*3300*1700mm |
|
Power |
25.73kw/35hp |
|
Tank volume |
45L |
|
Fuel consumption |
4-7L/h |
|
Vibrating plate width |
2955mm |
|
Vibration motor speed |
4000rpm |
|
Walking speed |
0-60m/min |
|
Travel tire |
Solid anti-skid and anti-puncture narrow tires |
Packaging and delivery
|
Selling Units: |
Single item |
|
Single package size: |
105X50X50 cm |
|
Single gross weight: |
68.000 kg |
Product descriptions from the supplier
Overview
Product Description
#SF-HA400L

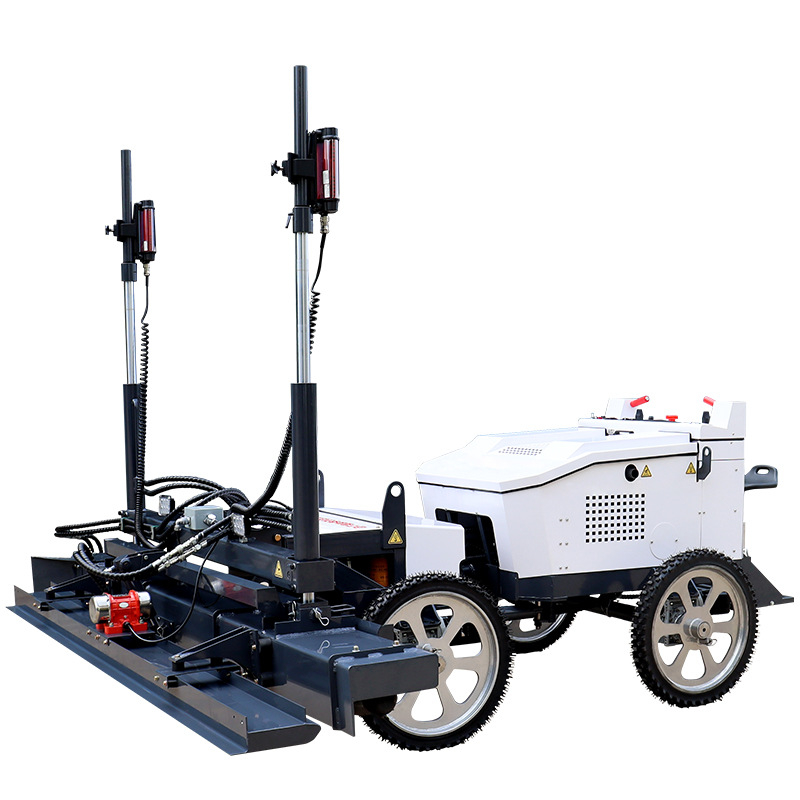

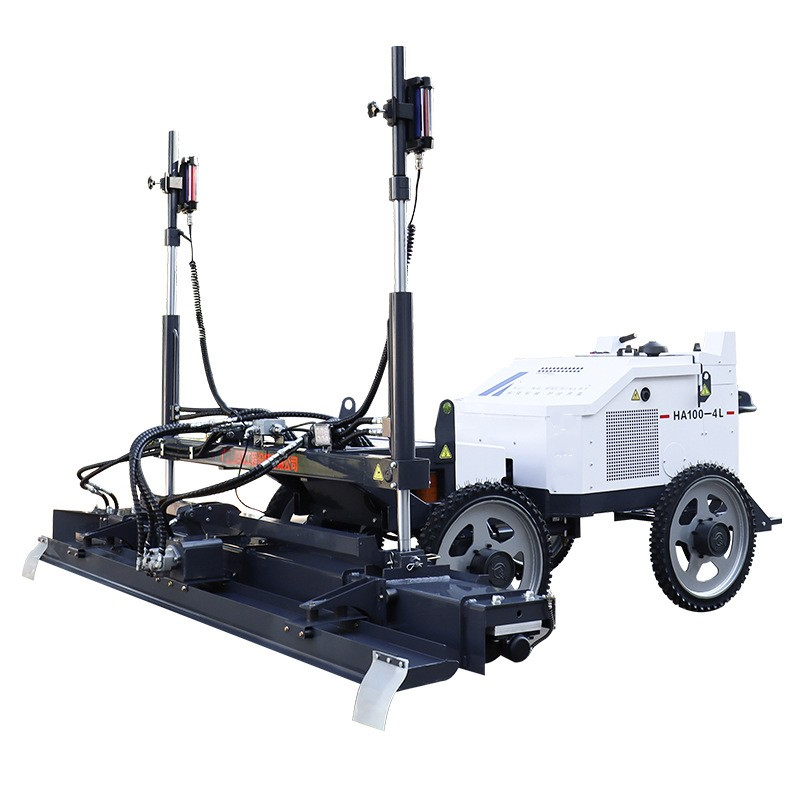

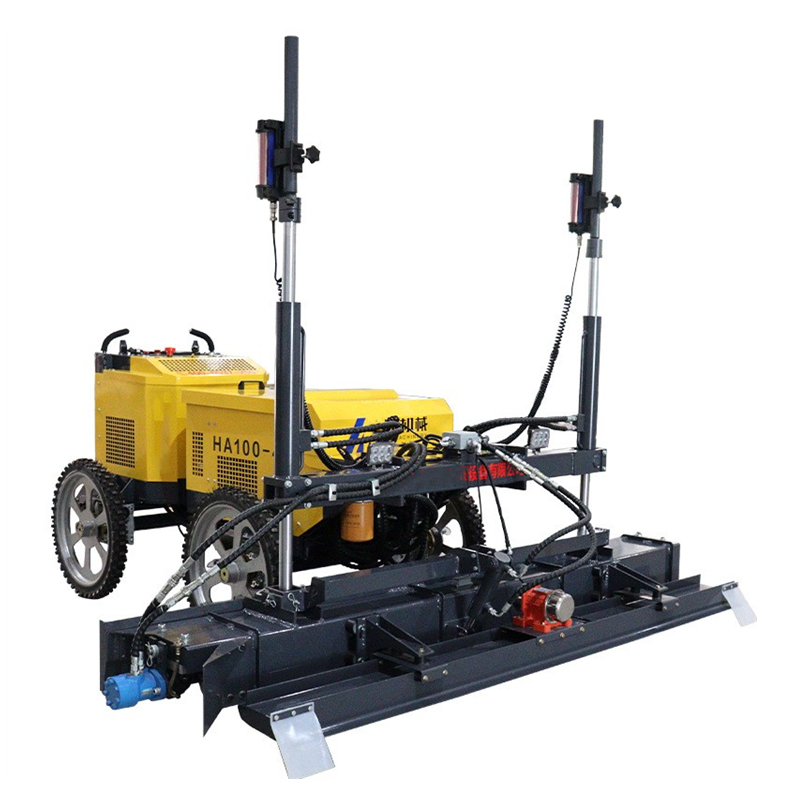

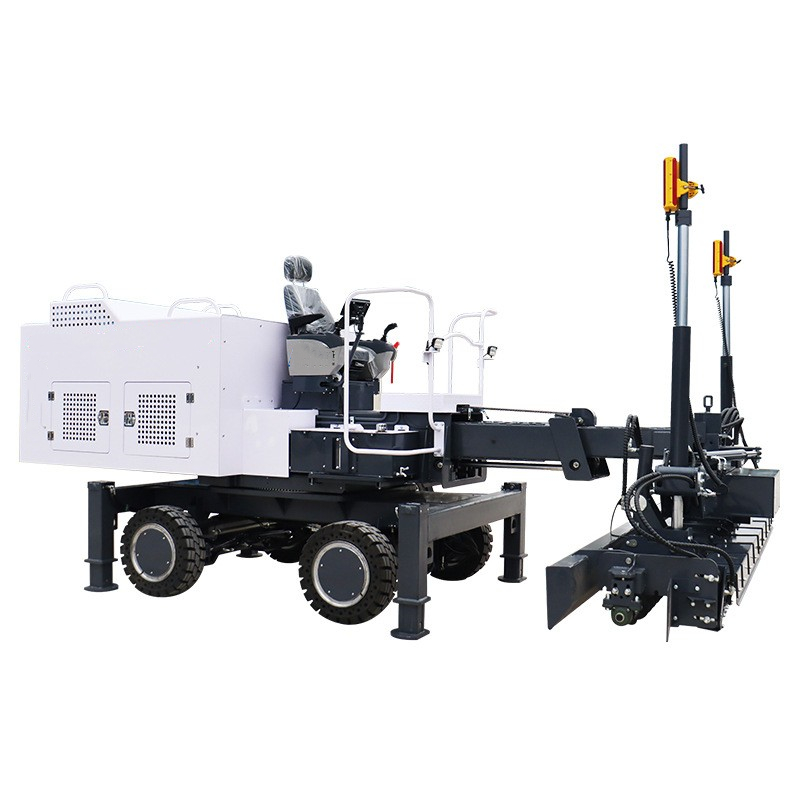

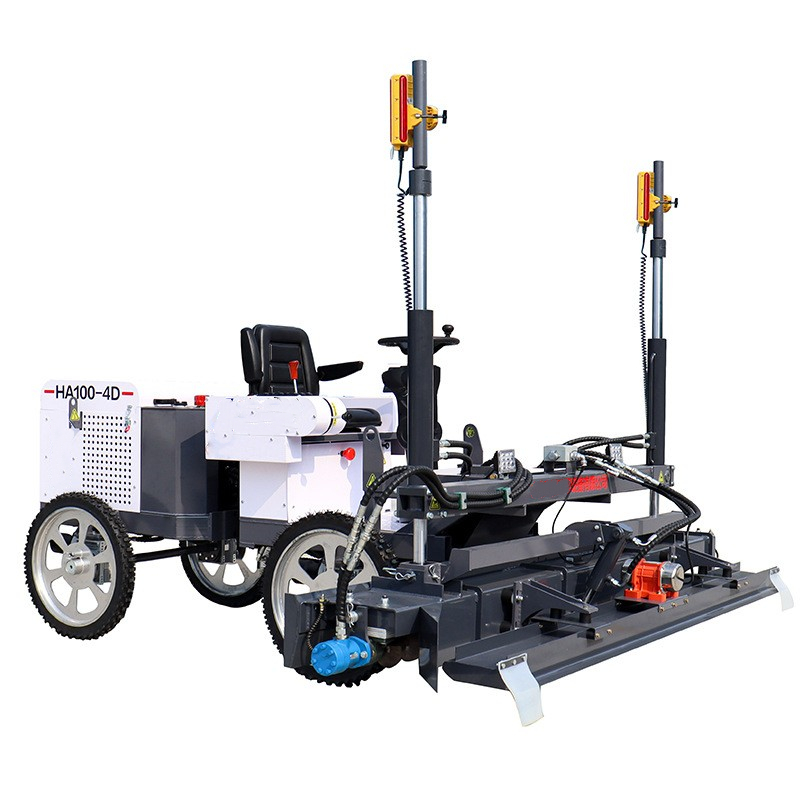

Concrete Laser Screeding Land Tools Concrete Land Ground Laser Leveling Machine
Application
With the development of laser technology and electronic technology
and the requirements of modern industrial floors, the international engineering field
has been using laser pavers in the construction of concrete floors since the 1980s,
realizing the precise leveling automation of concrete floors.

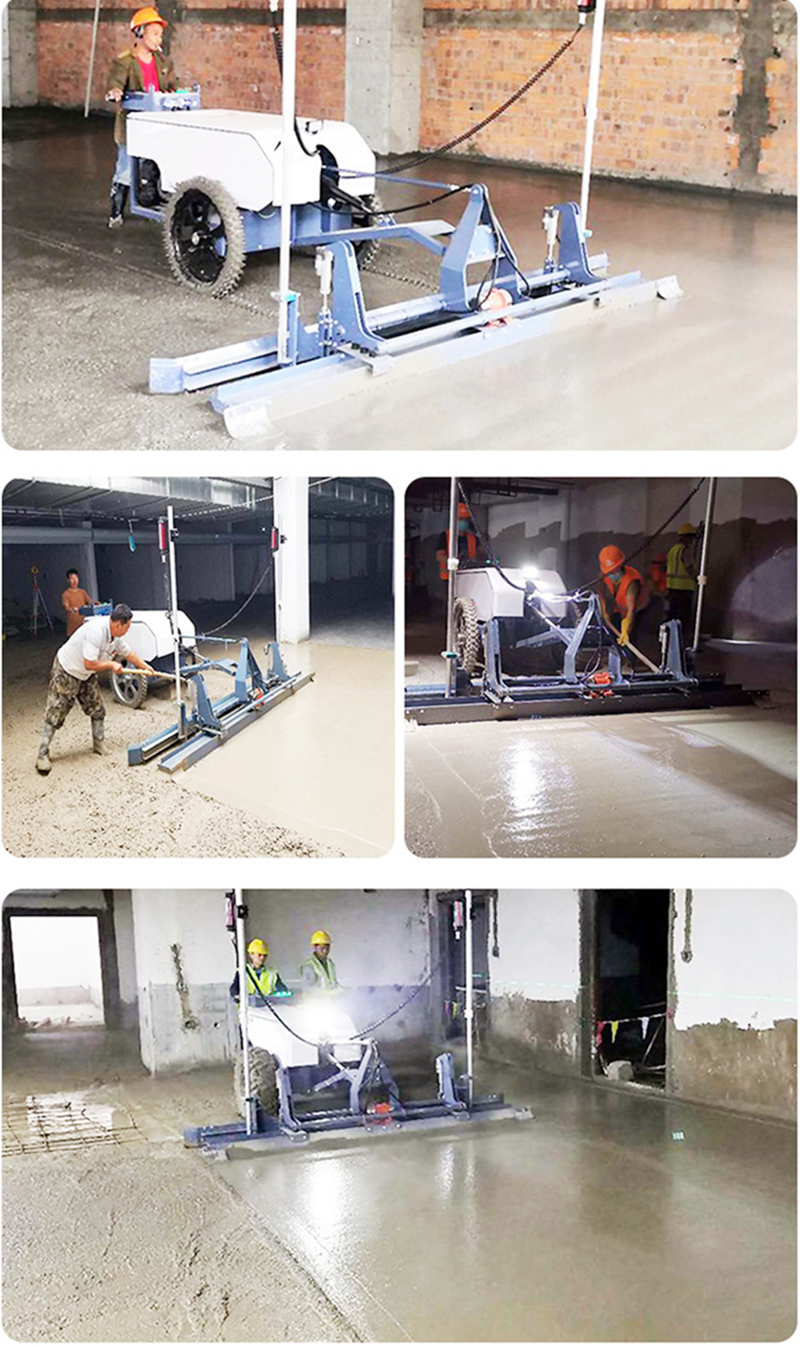

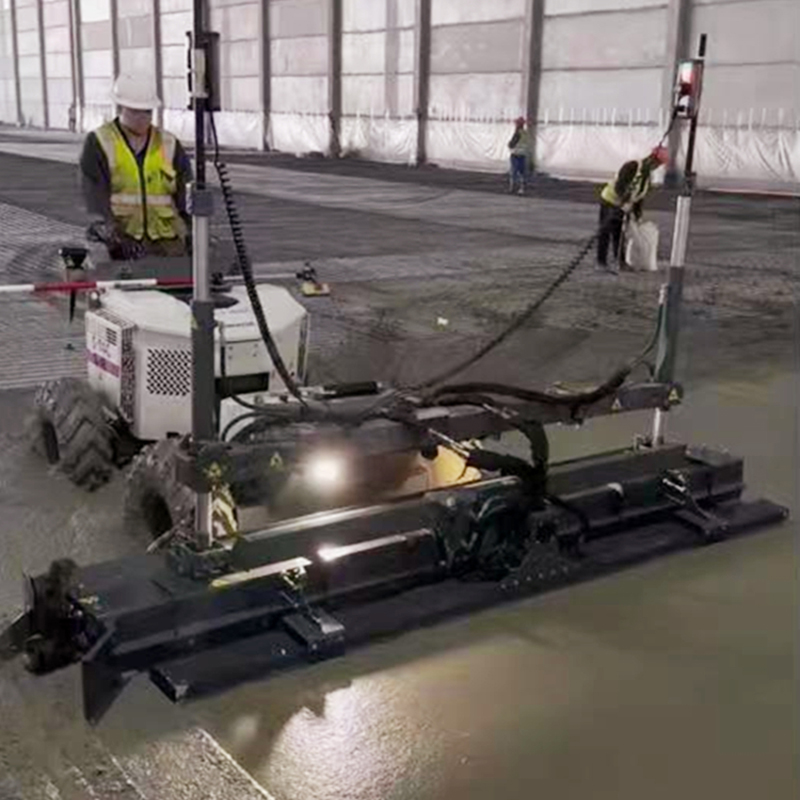

Indoor floor
Underground garage, ordinary industrial plant, workshop, automatic three-dimensional warehouse;
Clean workshops for electronic appliances, food materials, medicine, etc;
Large warehouse supermarket, logistics center, exhibition center, etc.
Outdoor terrace
Wharf, container yard and freight yard;
Airport runway, apron and parking lot;
Square, residential ground, municipal pavement, etc.
|
Power |
22KW/30HP |
|
Oil volume |
1.4L |
|
Tank volume |
45L |
|
Fuel consumption |
4-7L/h |
|
Laser emission system |
Shuangpo transmitter/Japanese Topcon transmitter/Swiss Leica transmitter/optional (American Tianbao transmitter) |
|
Laserreceiving system |
Swiss Leica receiver/German Komec receiver |
|
Laser control system |
Danfoss Laser Control System |
|
Control effect of laser system |
Plane, slope or double slope(3D) |
|
Lasersystem control mode |
Automatic control of laser micro-system to realize automatic leveling |
|
Suspension mode |
Fixed |
|
Vibration plate width |
2525mm |
|
Leveling thickness |
680 tires 50-300 mm |
|
Exciting force |
2000N |
|
Vibration motor speed |
3600rpm |
|
Travel drive |
Low-speed high-torque reducer+hydraulic drive motor |
|
Intelligent travel control system |
One-button cruise control |
|
Walking speed |
0-55m/min |
|
Working speed |
4m-20m/min(adjustable speed) |
|
Paving method |
Hydraulic auger paving |
|
Travel tire |
Solid anti-skid and stab-resistant narrow tire |
|
Fuselage size |
3250x2850x1320mm |
|
Fuselage weight |
800kg |
Main Features
1. Good construction effect, even and tighter ground, ultra-high accuracy, and less prone to cracks.
2. Laser alignment, automatic leveling, achieving high-precision and high-quality.
3. Wide application range, easy to handle large-scale projects.
