Key attributes
Industry-specific attributes
|
Type |
leveling machine |
|
Feature |
durable |
|
Power Source |
Diesel or Petrol |
|
Application |
Land ground pouring |
Other attributes
|
Place of Origin |
Zhejiang, China |
|
Brand Name |
Sanfine |
|
Warranty |
1 year |
|
Customized support |
OEM, ODM, OBM |
|
Model Number |
SF-HA100 |
|
Paving method |
Hydraulic auger paving |
|
Working speed |
3m-60m/min(speed adjustable) |
|
Dimension(Long * Breadth * High) |
3500*3300*1700mm |
|
Power |
25.73kw/35hp |
|
Tank volume |
45L |
|
Fuel consumption |
4-7L/h |
|
Vibrating plate width |
2955mm |
|
Vibration motor speed |
4000rpm |
|
Travel tire |
Solid anti-skid and anti-puncture narrow tires |
|
Logo |
Custom Logo Accepted |
Packaging and delivery
|
Selling Units: |
Single item |
|
Single package size: |
200X75X140 cm |
|
Single gross weight: |
600.000 kg |
Product descriptions from the supplier
Overview
Product Description
#SF-HA100

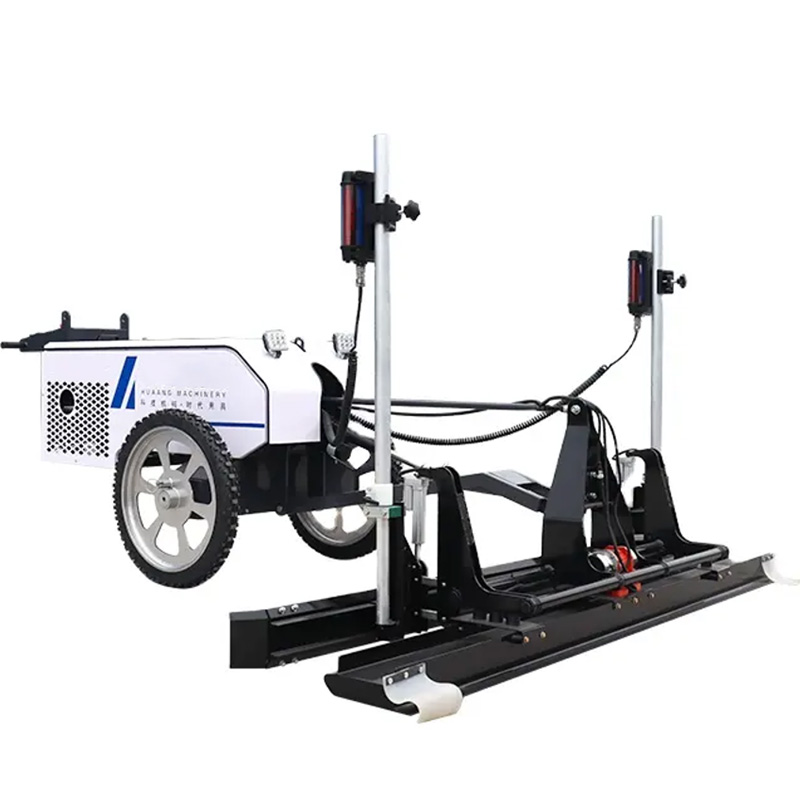

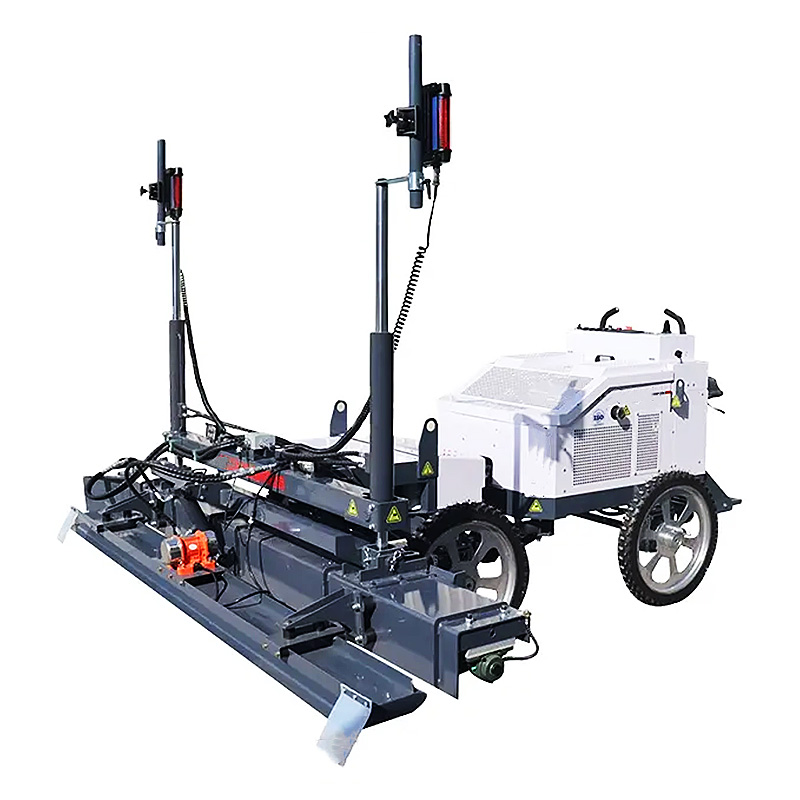

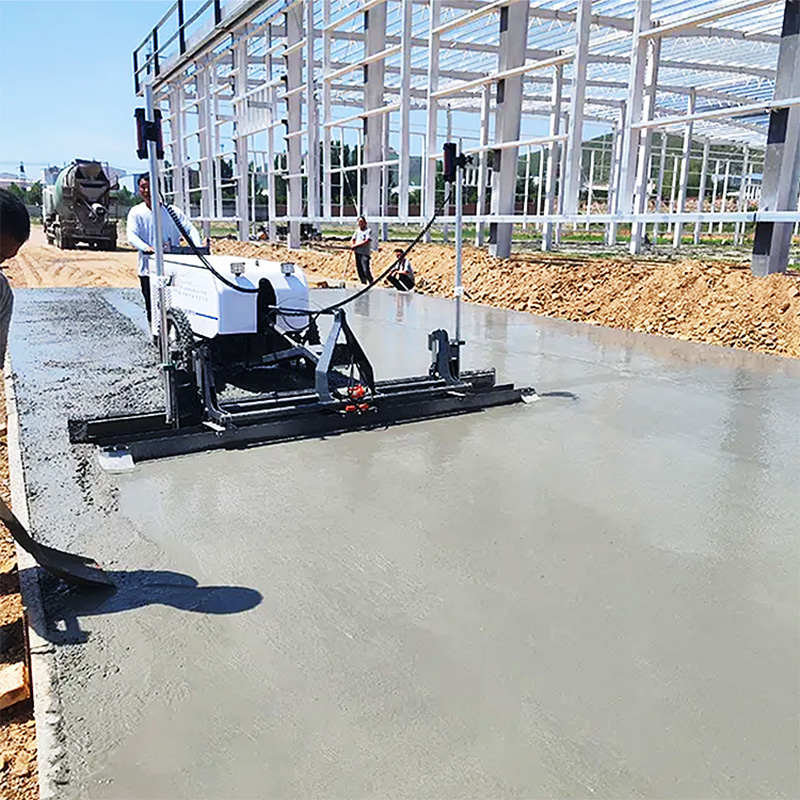

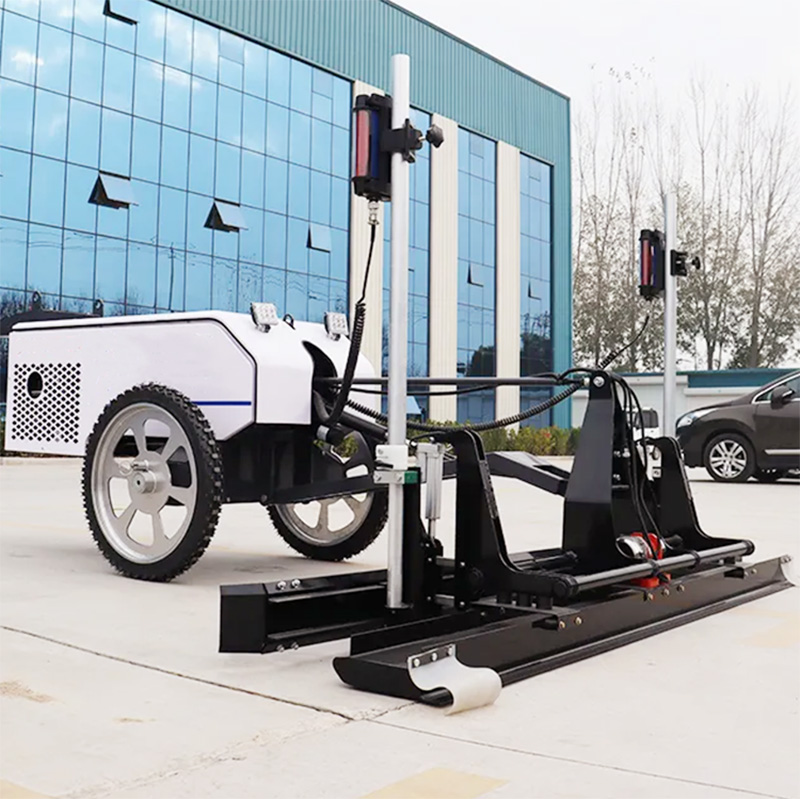

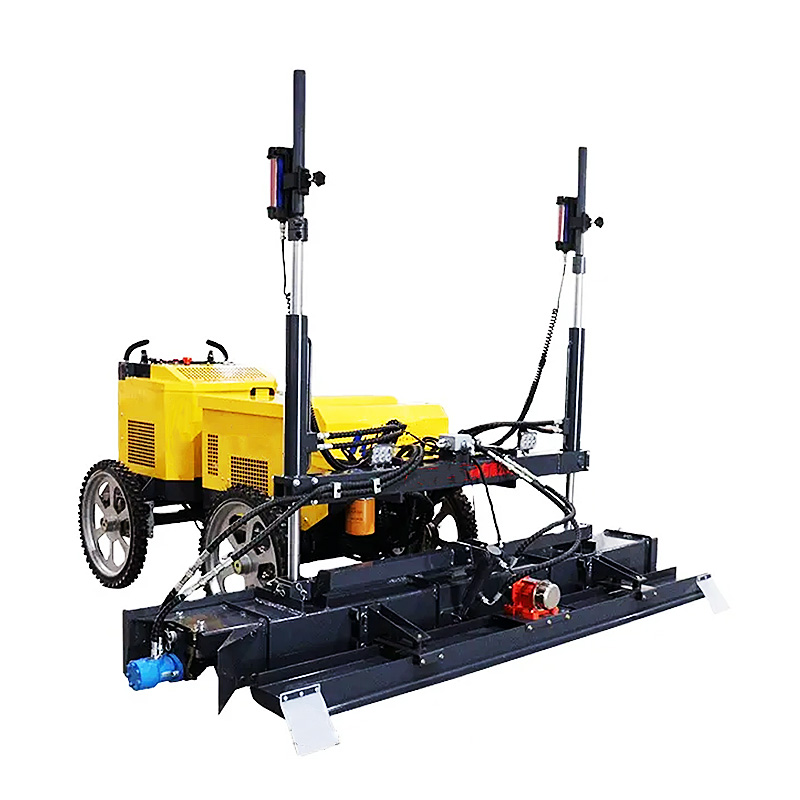

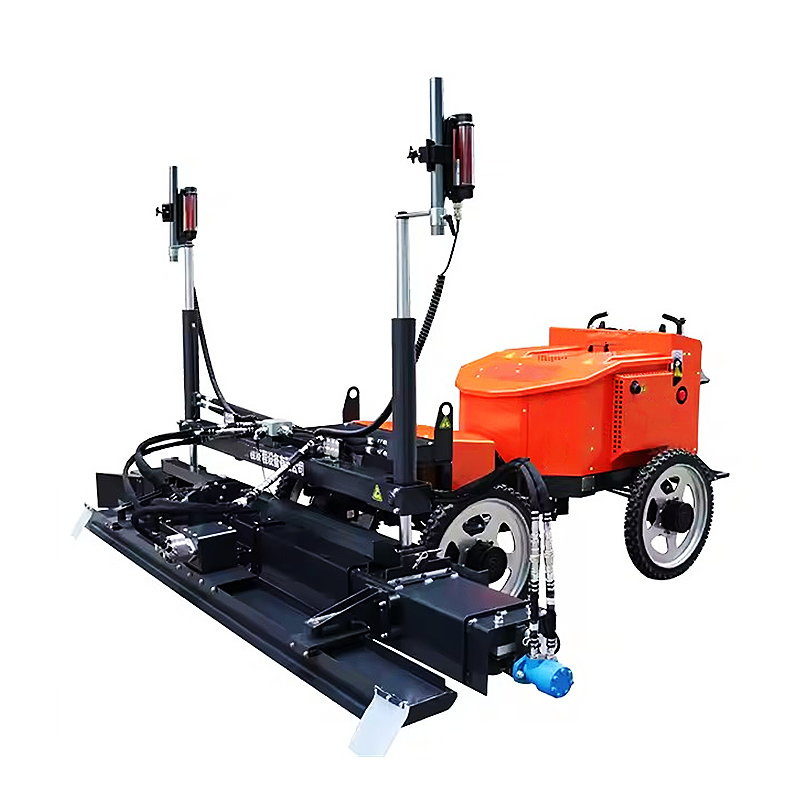

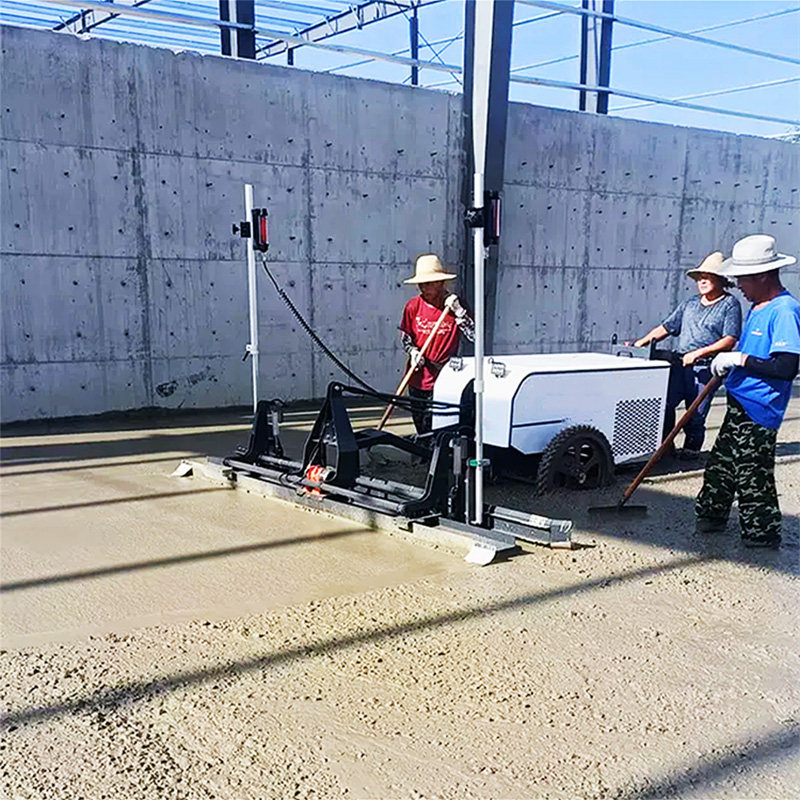

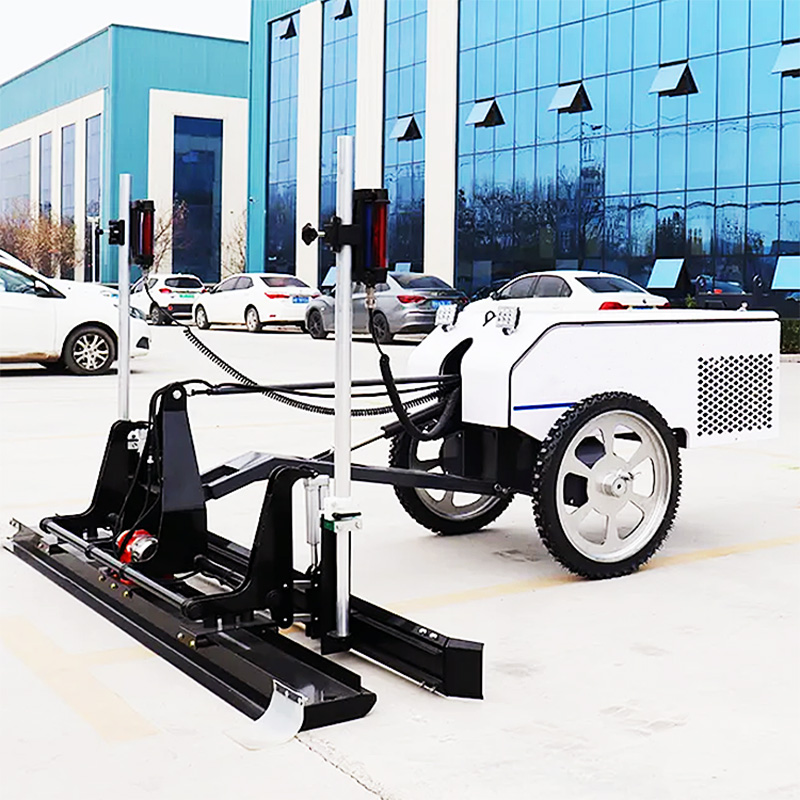

Concrete Floor Vibratory Paver Laser Screeds Machine Self-Leveling Laser Screed
Application
With the development of laser technology and electronic technology and the requirements of modern industrial floors, the international engineering field has been using laser pavers in the construction of concrete floors since the 1980s, realizing the precise leveling automation of concrete floors.

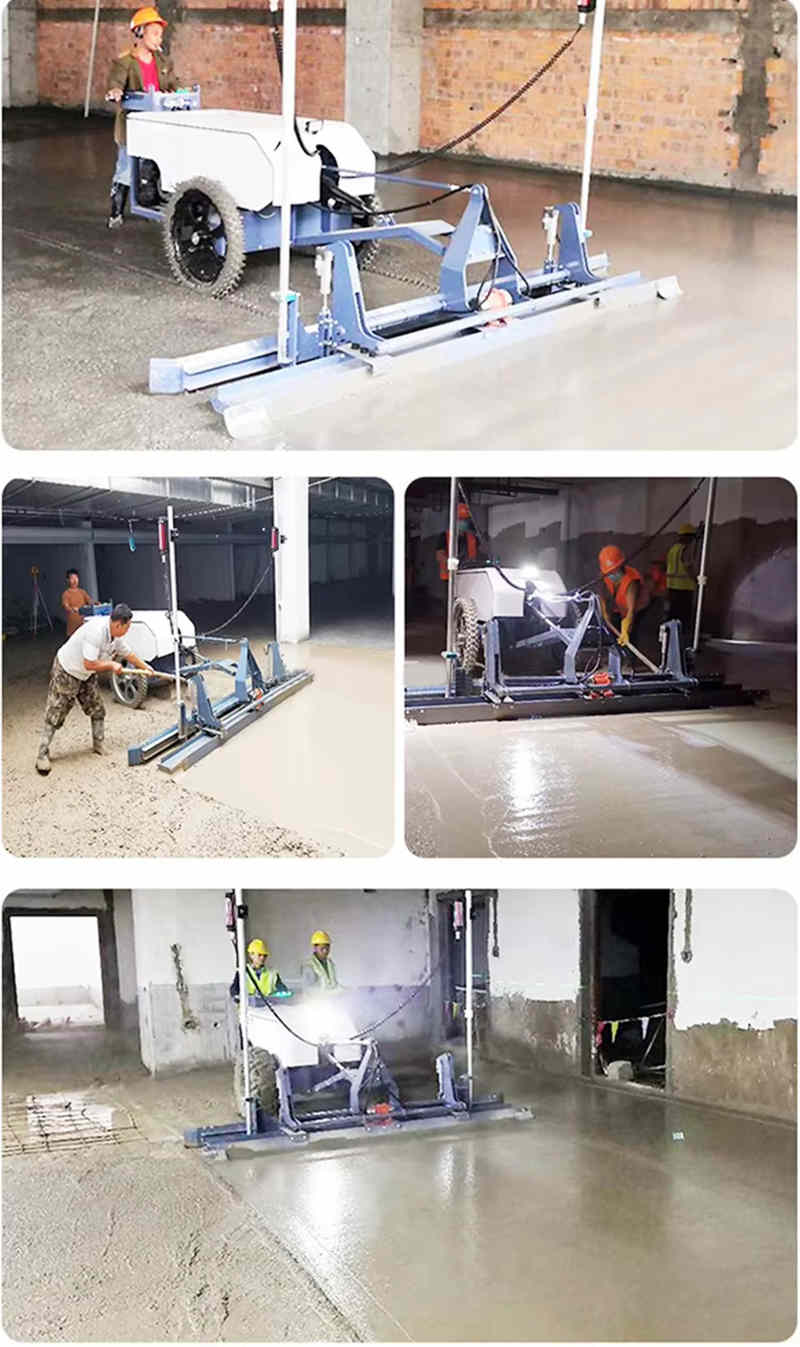

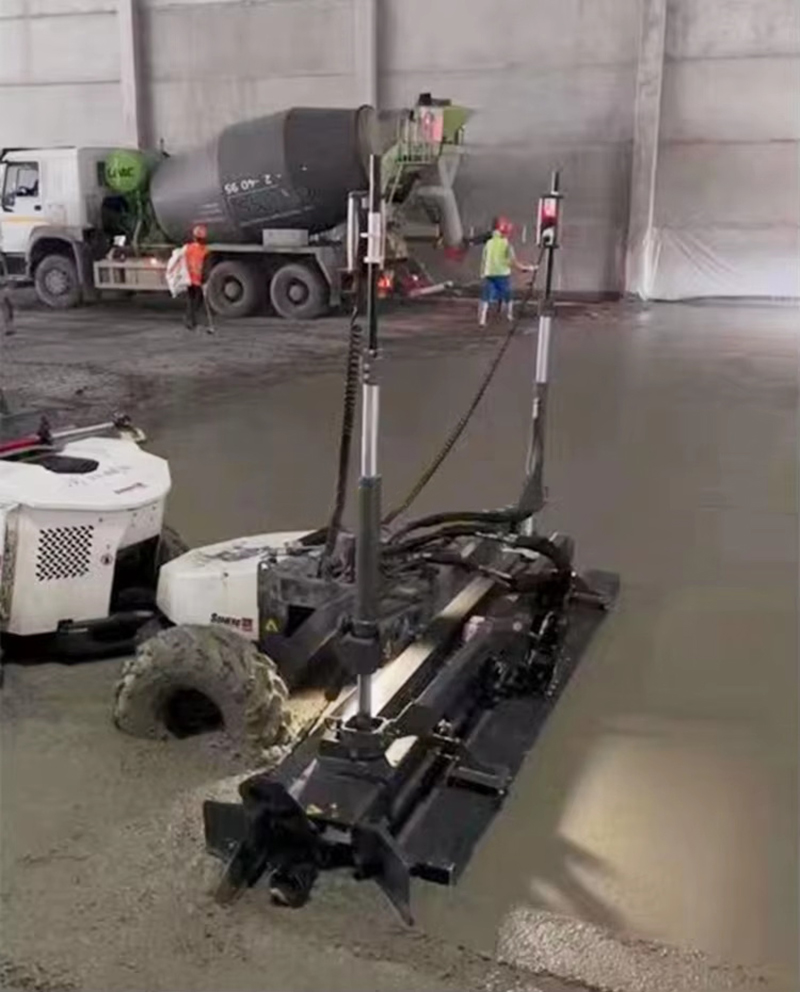

Indoor floor
Underground garage, ordinary industrial plant, workshop, automatic three-dimensional warehouse; Clean workshops for electronic appliances, food materials, medicine, etc; Large warehouse supermarket, logistics center, exhibition center, etc.
Outdoor terrace
Wharf, container yard and freight yard; Airport runway, apron and parking lot; Square, residential ground, municipal pavement, etc.
|
Power
|
3.0KW
|
|
Fuel volume
|
17L (18 hours for construction)
|
|
Fuel consumption
|
0.8-1.3L/h
|
|
Laser emission system
|
Swiss Leica transmitter/Japanese Topcon transmitter/Shuangpo transmitter
|
|
Laser receiving system
|
Swiss Leica receiver/German Komec receiver
|
|
Laser control system
|
Japanese Mitsubishi/American Danfoss laser control system
|
|
Control effect of laser system
|
Plane, slope or double slope (3D)
|
|
Laser system control mode
|
Automatic control of laser micro-system to realize automatic leveling
|
|
Suspension mode
|
Flat head independent suspension system (can maintain fuselage balance in complex engineering)
|
|
Vibration plate width
|
2525mm
|
|
Leveling thickness
|
Standard 680 tire 50-250mm/optional 980 tire 50-400mm
|
|
Exciting force
|
2000N
|
|
Vibration motor speed
|
3600rpm
|
|
Travel drive
|
Servo drive motor
|
|
Walking mode
|
Automatic travel of electric control servo system
|
|
Walking speed
|
0-28m/min
|
|
Working speed
|
4m-20m/min
|
|
Tail wheel control mode
|
Manual lifting
|
|
Travel tire
|
Solid anti-skid and stab-resistant narrow tire/optional (inflatable wide tire)
|

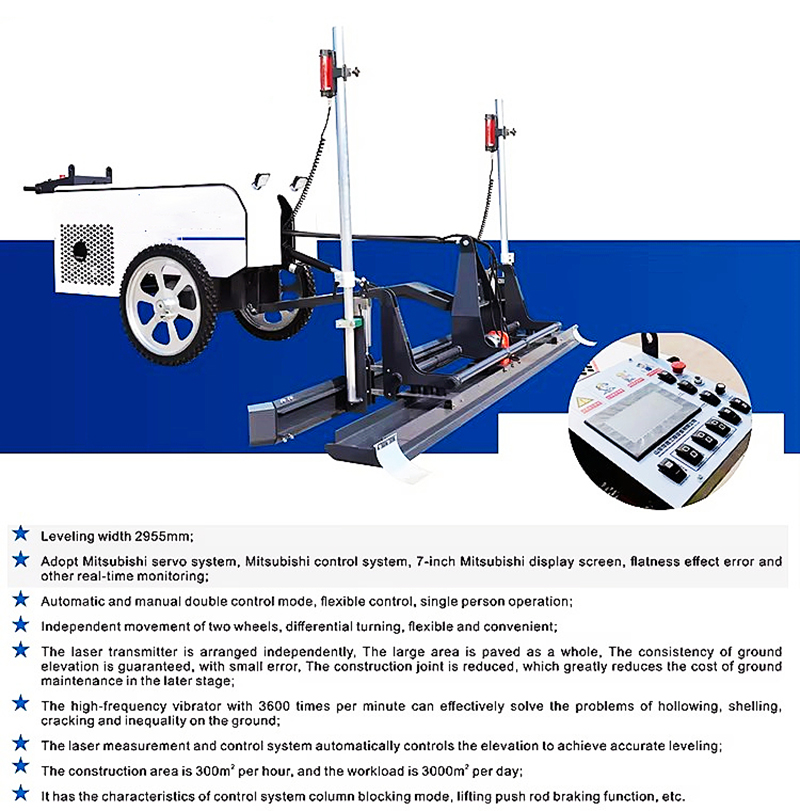

Main Features
1. Good construction effect, even and tighter ground, ultra-high accuracy, and less prone to cracks.
2. Laser alignment, automatic leveling, achieving high precision and high quality.
3. Wide application range, easy to handle large-scale projects.

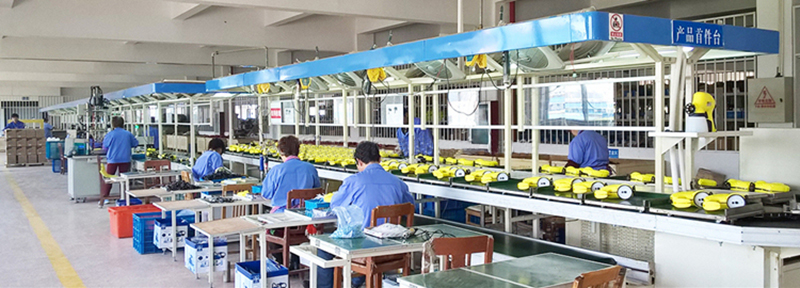

Factory & Workshop
Packaging & Shipping
Delivering & Shipping in Sorts of Transportation (Safely and Timely)
1. Samples are available.
2. Small order quantity can be met here.
3. You can see us and our products on the exhibitions home and abroad.
4. Your business relationship with us will be confidential to any third party.
5. A prompt feedback will be submitted against your inquiry within 12 hours.
6. Good after-sale service., well-trained and experienced staff are ready to offer service for you.
