Key attributes
Industry-specific attributes
|
Power Type |
Diesel |
|
Max. vertical conveying distance |
150M |
|
Max. horizontal conveying distance |
450M |
|
Productivity |
60M³/H |
Other attributes
|
Applicable Industries |
Building Material Shops, Machinery Repair Shops, Construction works |
|
Showroom Location |
None |
|
Place of Origin |
Zhejiang, China |
|
Weight |
4100 kg |
|
Warranty |
6 Months |
|
UNIQUE SELLING POINT |
Imported hydraulic system |
|
Machinery Test Report |
Provided |
|
Video outgoing-inspection |
Provided |
|
Marketing Type |
Ordinary Product |
|
Warranty of core components |
1 Year |
|
Core Components |
Bearing, Pump, Engine |
|
Condition |
New |
|
Brand Name |
Sanfine |
|
Dimension(L*W*H) |
4800X1750X1900 mm |
|
Delivery time |
15 days |
|
Packing |
Container |
|
Plaster thickness |
≤50mm |
|
Function |
Concrete Pumping |
|
Pressure |
13Mpa |
|
Hopper capacity |
600L |
|
Discharge port inside diameter |
150 mm |
|
Inside diameter |
125 mm |
Lead time
| Quantity (sets) | 1 - 1 | 2 - 2 | > 2 |
| Lead time (days) | 12 | 15 | To be negotiated |
Product descriptions from the supplier
Overview
Product Description

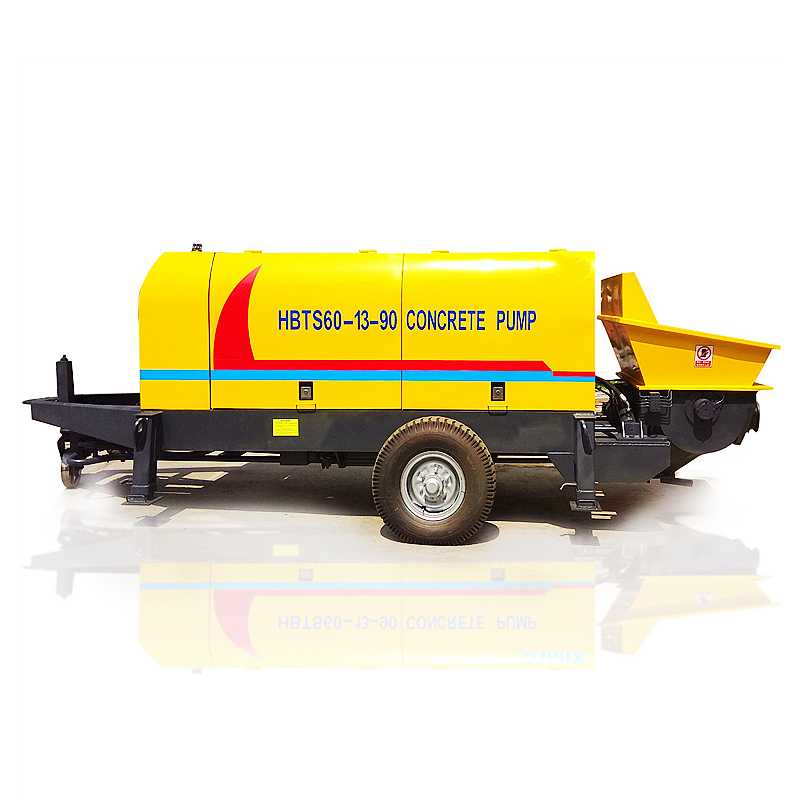

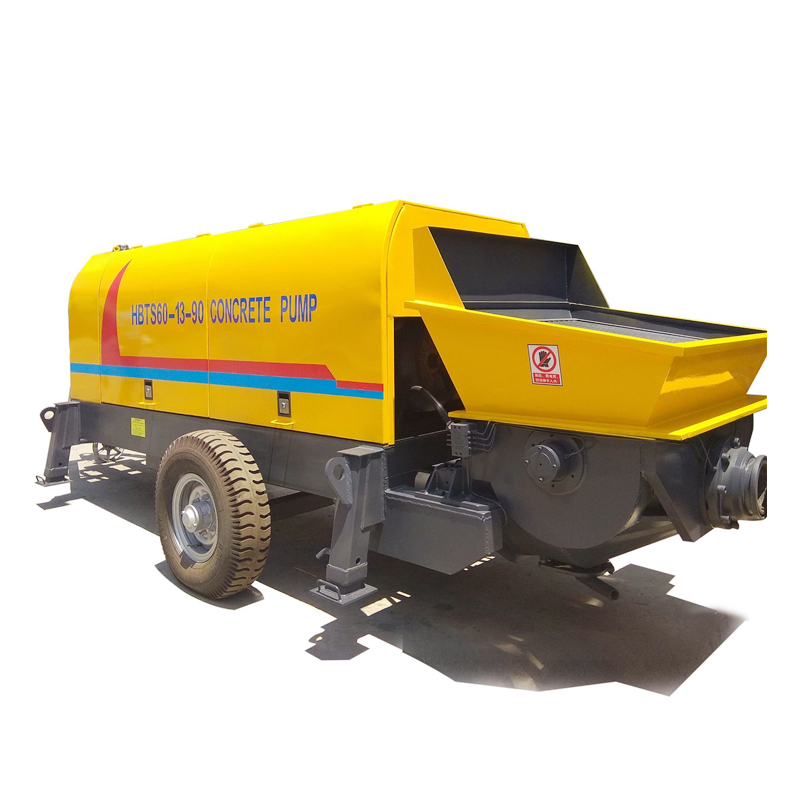

#SF-HBTS60

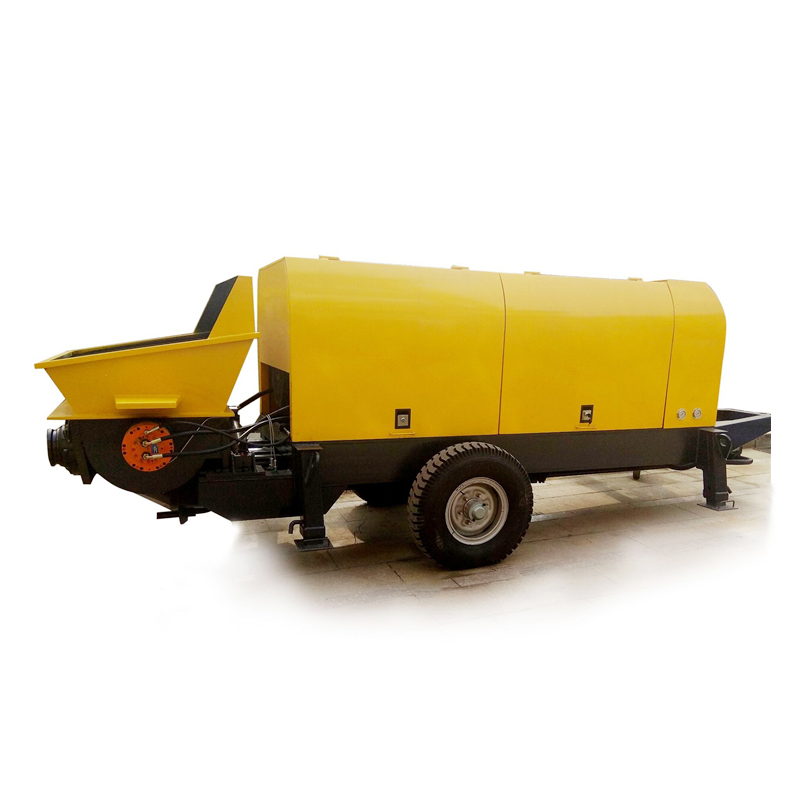

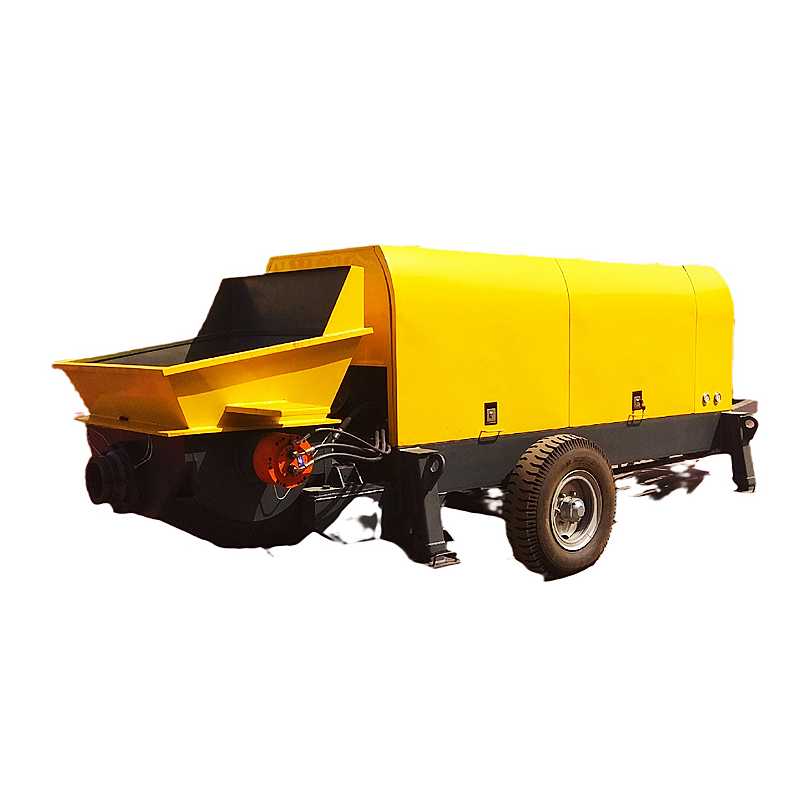

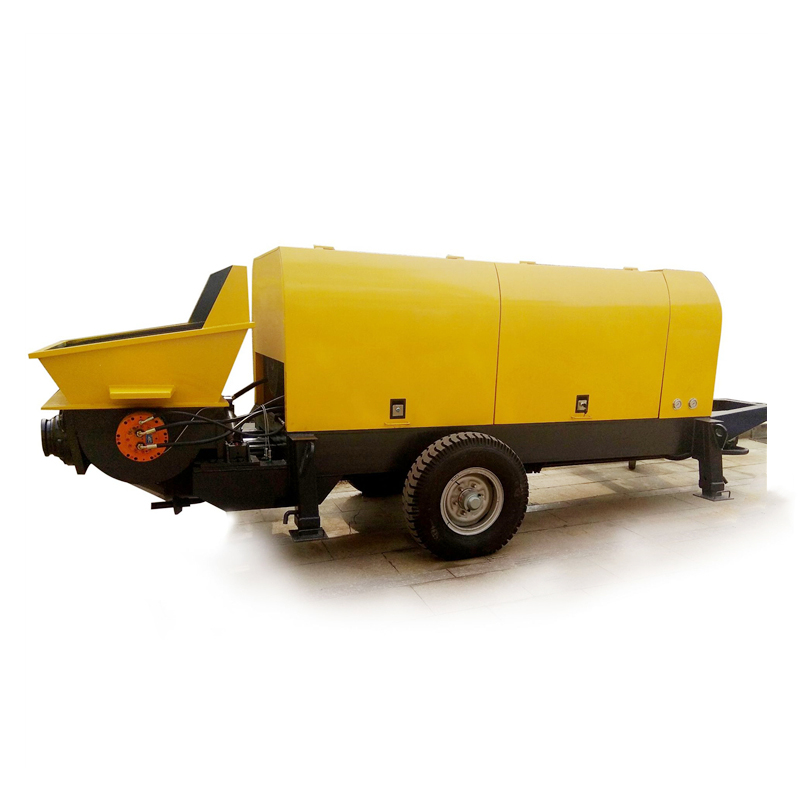

Mobile Concrete Mixer Machines Diesel Concrete Trailer Pump Truck
Feature:
1. Using advanced smooths pipe valve reversing:
can meet the transportation of fine stone concrete
or commercial fine stone concrete, it is not suitable to block the pipe;
2. Spectacle plate and cutting ring:
high hardness and wear-resistant alloy material, longer life;
3. High export pressure:
it can meet the transportation requirements of high-rise buildings and long-distance construction;
4. The hydraulic oil cooling adopts air cooling system:
the cooling effect is good, the use is simple, and it is not easy to pollute the oil;
5. Adopting stepless manual variable displacement:
it can meet the different requirements of many users for the discharge speed;
6. Advanced wireless remote control function:
Improve remote control distance, facilitate remote control operation, and make products more humanized;
|
Project |
Unit |
HBTS20 |
HBTS30 |
HBTS40 |
HBTS50 |
HBTS80 |
|
Maximum theoretical delivery |
m³/h |
10-16 |
15-20 |
18-25 |
30-40 |
80 |
|
Maximum outlet pressure |
Mpa |
10 |
10 |
13 |
13 |
13-16 |
|
Maximum theoretical transport distance |
m |
130/40 |
180/90 |
250/120 |
300/150 |
240/1100 |
|
Motor Power |
kw |
31.7 |
63 |
72 |
55 |
90-110 |
|
Feeding height |
mm |
1200 |
1200 |
1200 |
1350 |
1350 |
|
Pumpable concrete maximum particle size |
mm |
20 |
30 |
≤30 |
≤40 |
≤40 |
|
Most suitable for pumping concrete slump |
cm |
15-23 |
15-23 |
15-23 |
15-23 |
15-23 |
|
Duct inner diameter |
mm |
Φ100 |
Φ100 |
Φ100 |
Φ100 |
Φ125 |
|
Host weight |
Kg |
1400 |
1700 |
2200 |
2980 |
5600 |
7. Highly wear-resistant concrete cylinder:
guarantees and increases the service life of the concrete pump and reduces the maintenance cost of the user;
8. The main cylinder of the new process chrome-plated inner hole:
thus avoiding the problem of damage to the main cylinder due to dirty oil;
9. Highly wear-resistant glasses plate and cutting ring:
the use of large-area carbide inserts is the latest technology to improve the use of glasses;
Durable Concrete Pump:
The glasses plate and cutting ring adopt hard alloy material inlay manufacturing with wear resistant.
The hydraulic system adopts independent three circuit electro - hydraulic control with high reliability.
Portable Concrete Pump:
Its elegant appearance and light weight is easy to transport;
Working with batching mixing equipment can achieve continuous pumping
construction to improve construction schedule.
Factory & Workshop

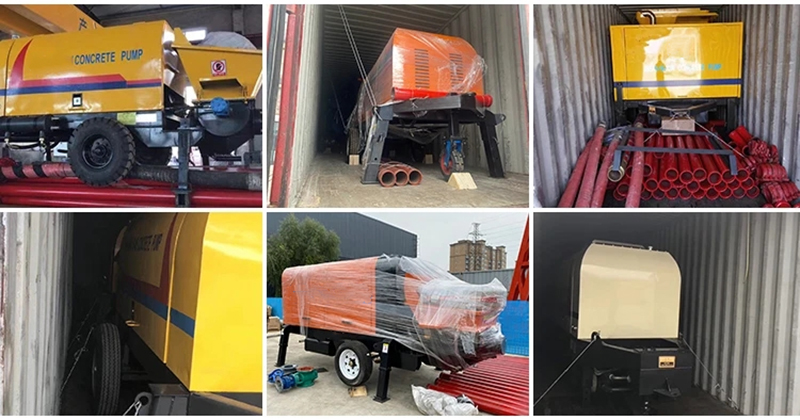

Delivering & Shipping in Sorts of Transportation (Safely and Timely)
