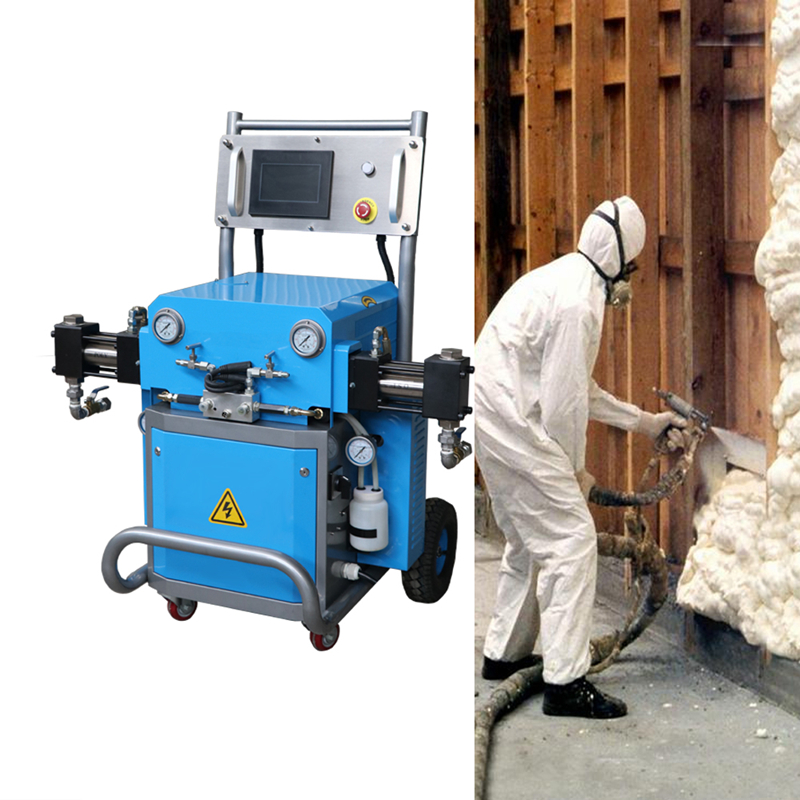

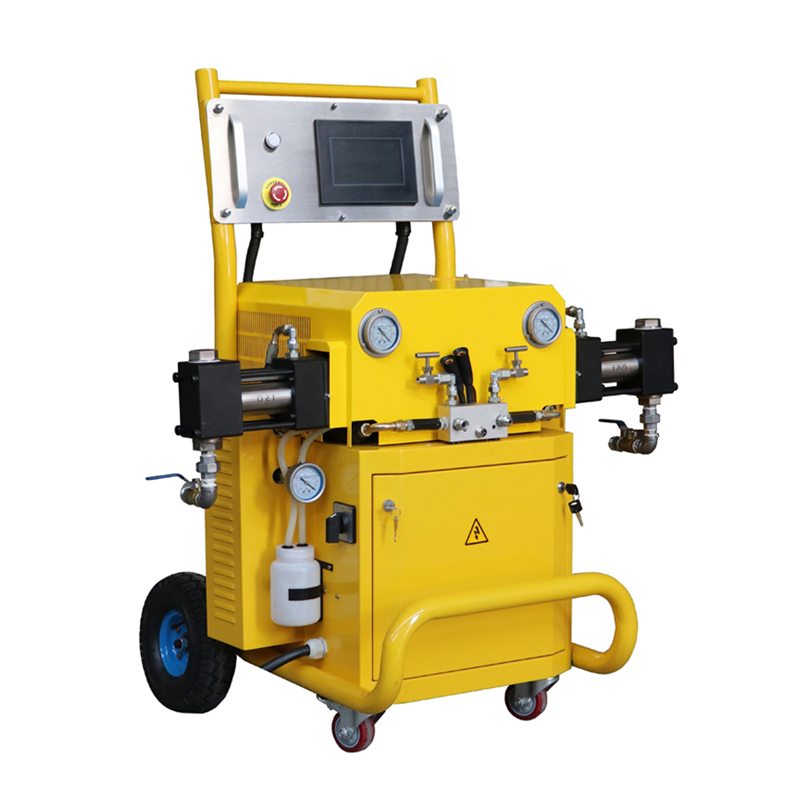

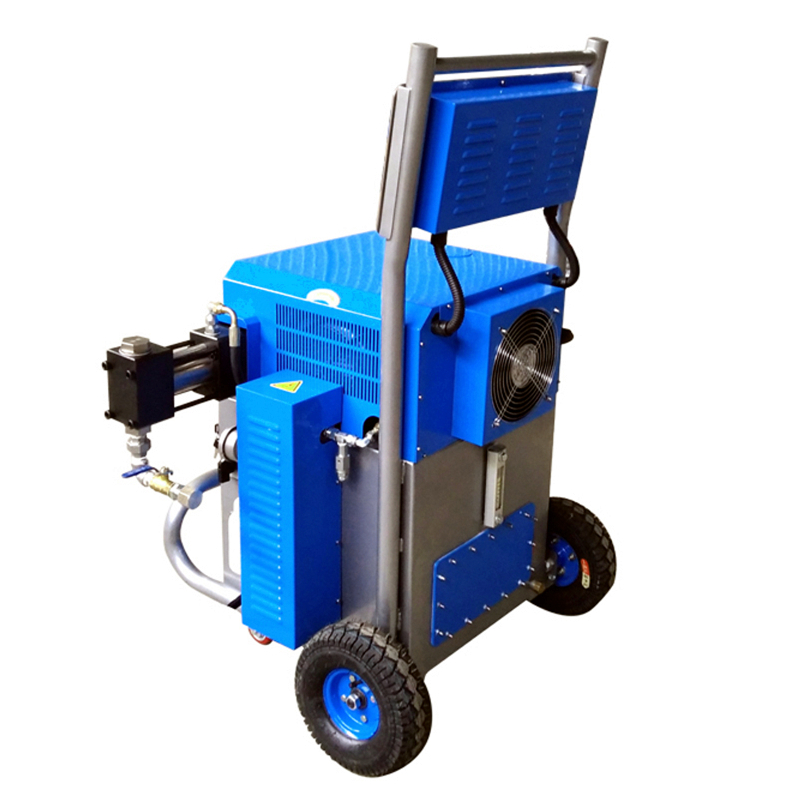

Hydraulic Two Component Waterproof Polyurea and Polyurethane Spray Foaming Injection Machine Insulation Foam Coating Equipment

Video Description

Product Description

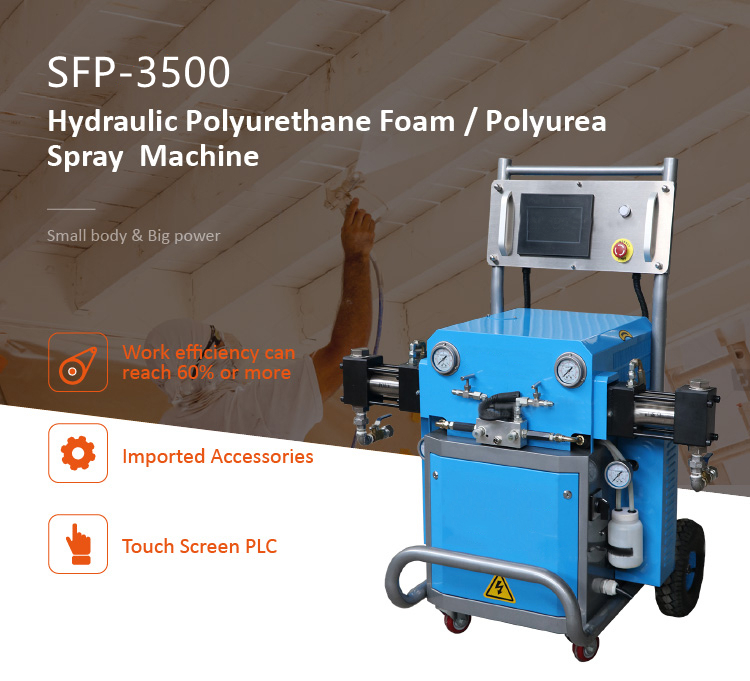

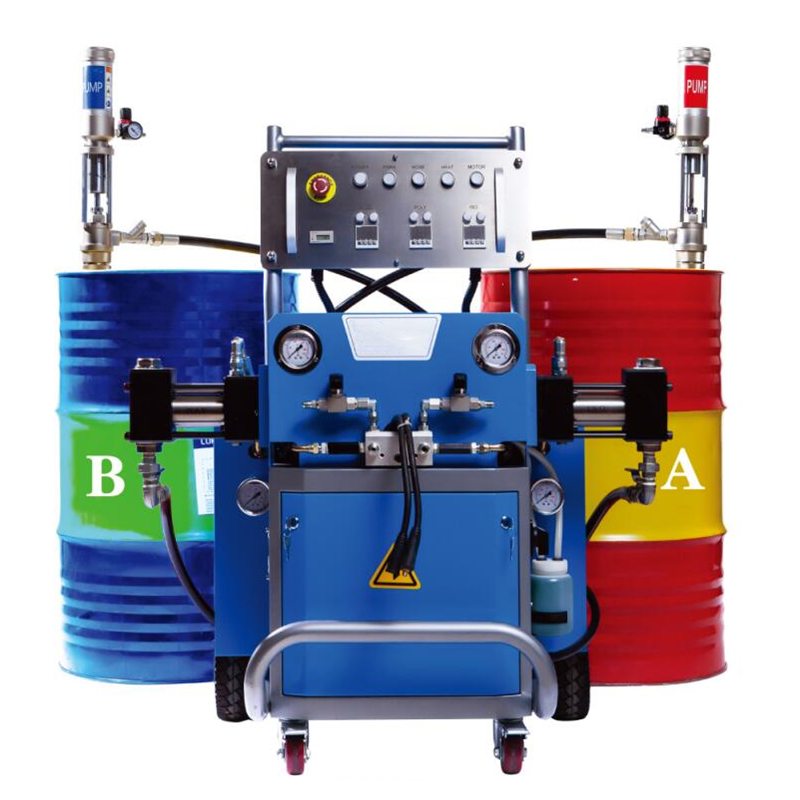

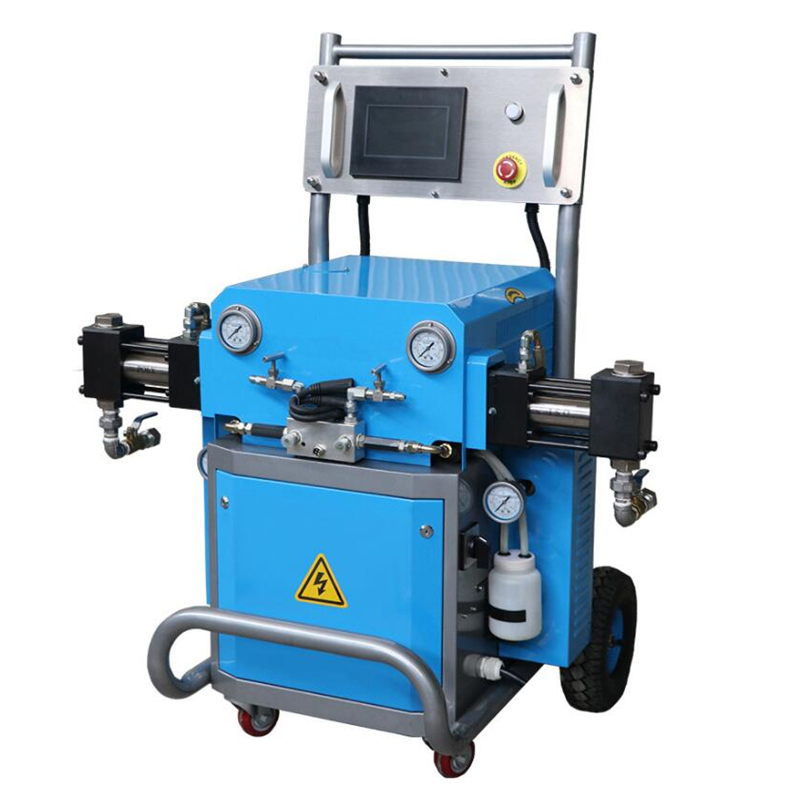

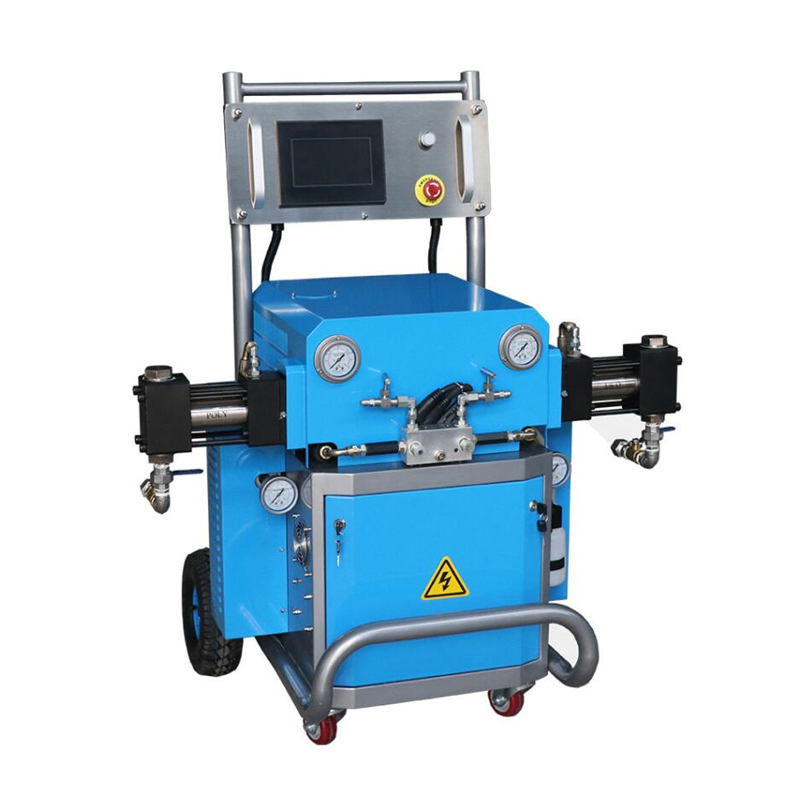

Model#SFP-3500
Two Component Waterproof Polyurea and Polyurethane Spray Foaming Injection Machine

Specification:
1. The machine has a small size, light weight,
    low failure rate,simple operation, easy to move and so on.
2. Use the most advanced pneumatic booster devices,
    the maximum degree to ensure stability of equipment work.
3. Multiple raw material filter device to minimize the spray plug problem.
4. Multiple leakage protection system to protect the safety of the operator.
5. With an emergency switch system, to the most rapid response to emergencies.

6. Reliable and powerful heating system can make the raw material rapidly heating to the ideal state,
    to meet the normal construction of equipment.
7. The feeding volume can be adjusted, and has a regular, quantitative function,
    especially suitable for high-precision small batch of polyurethane casting to improve production efficiency.

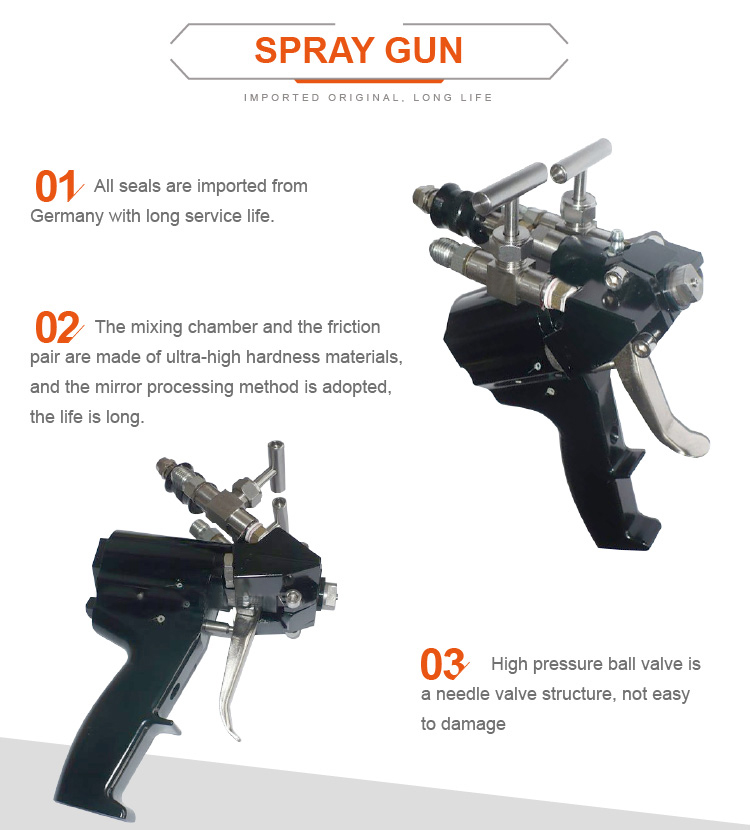

8. The latest no-clean spray gun with small size, light weight, low failure rate.

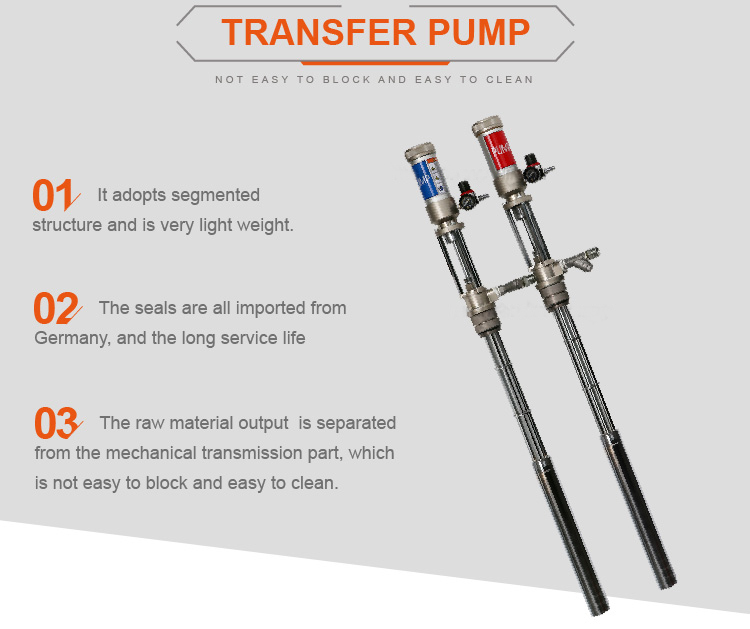

9. Material taken pump use large ratio method, automatic mention material,
    high viscosity of winter raw materials can also easily feed.

Item	Hydraulic polyurea spray machine

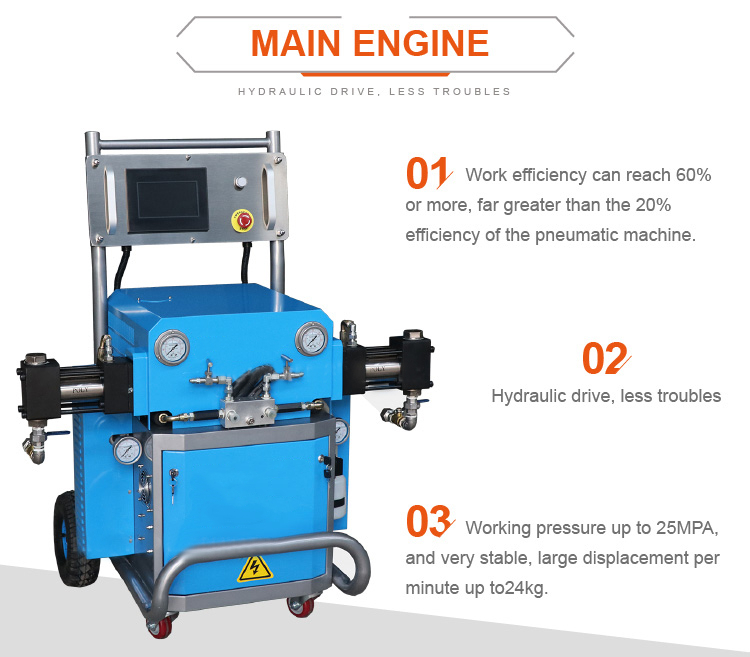

Standard  configuration	Proportion Fixed Mainframe: 1 set
	Self-cleaning spray gun: 1 set
	Feeding pump: 2 sets

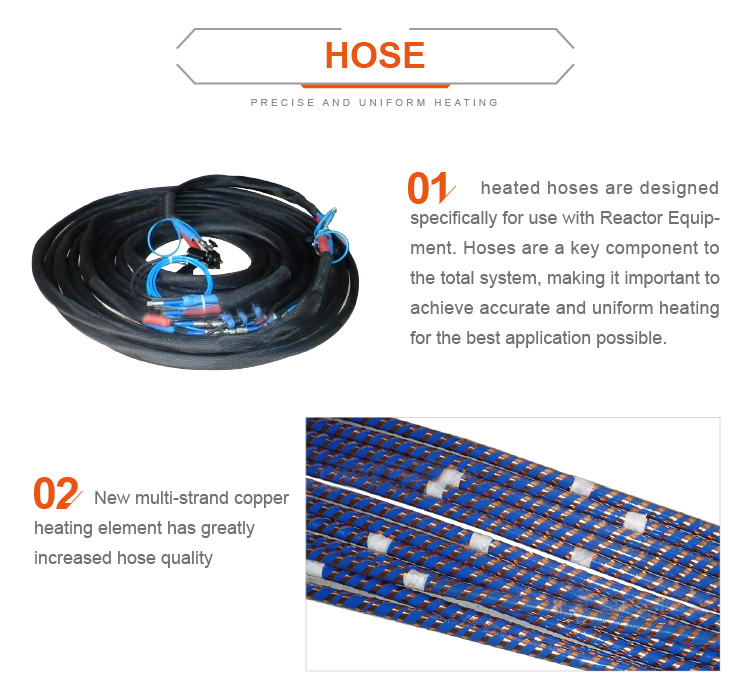

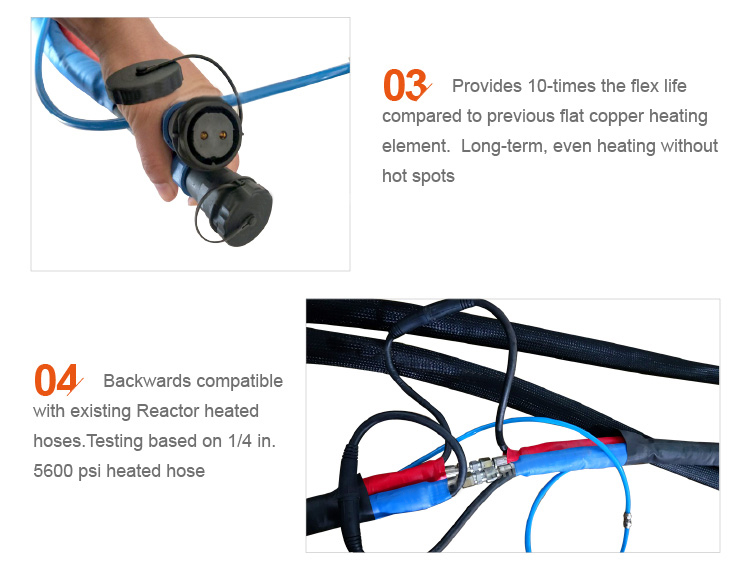

	Heating hose: 49.2 feet (15m)
	Connecting hose from feeding pump to machine: 10 feet(3m)
	Connecting hose from heating hose to gun: 5 feet(1.5m)
	Rings and Tools
Technical Data	The ratio of raw material: 1:1(Fixed)
	The viscosity range of raw material: 200-1000CPS (Under the operate temperature)
	Max Working pressure: 25 MPa (200 bar)
	Max fluid temperature: 88°C (190°F)
	Max Output: 14kg/min (30 lb/min)
	Heating hose power: 2000W*2
	Max hose length: 94m (308 feet)
	Whole power: 17KW
	Voltage: 380V/400V 3 phase
	Operate temperature: 0°C-70°C
	Clean mode: Self-clean by air
	Max heating hose length: 308 feet (94m)
	Working fluid pressure: 6-8Mpa
	Machine size: 1400mm*990mm*60mm
	Gross weight: 320KG

 Application:
1. Polyurethane spray on wall & roof,
2. Polyurea spray for waterproof & anticorrosion,
3. Construction seam filling,
4. Cold storage spray insulation,
5. Tank and pipe spray insulation,
6. Polyurethane foam for package cushioning,
7. Car roof spray insulation,
8. Highway, railway, automobile, watercraft, mining petroleum, electrical industry, food industry, etc.
