#SFP4975

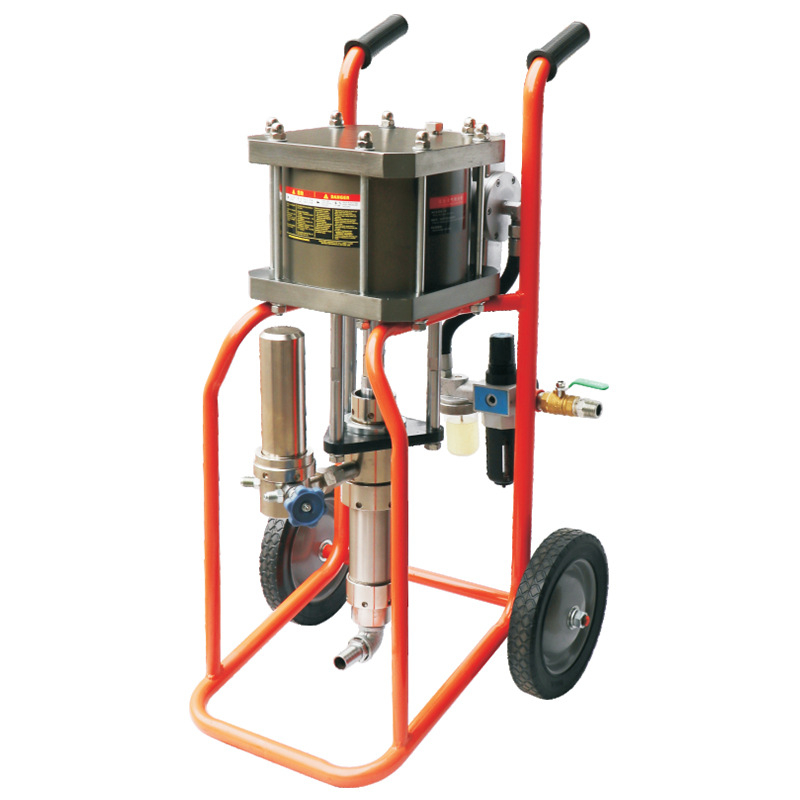

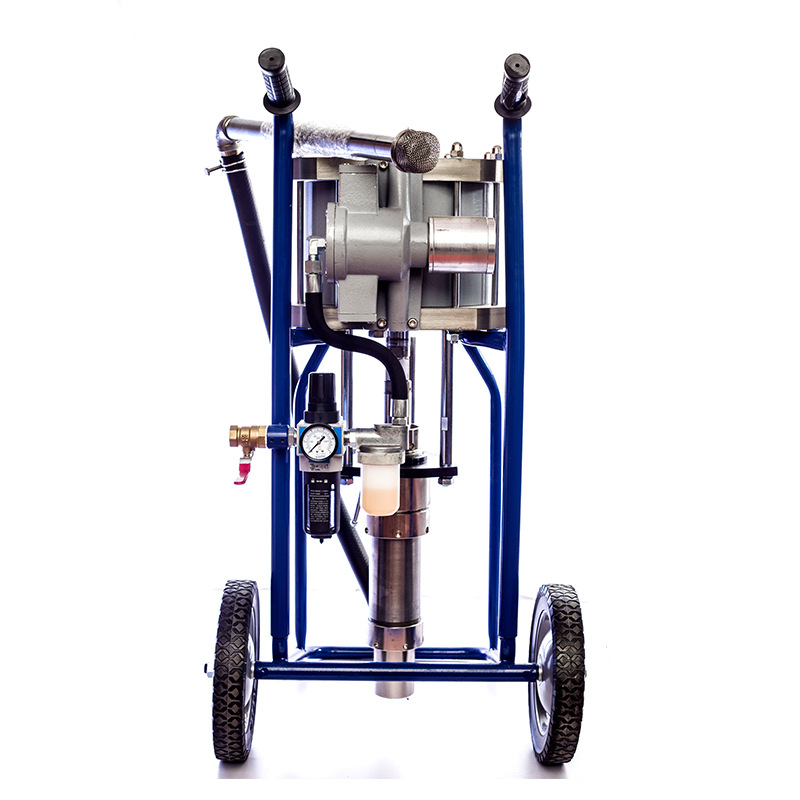

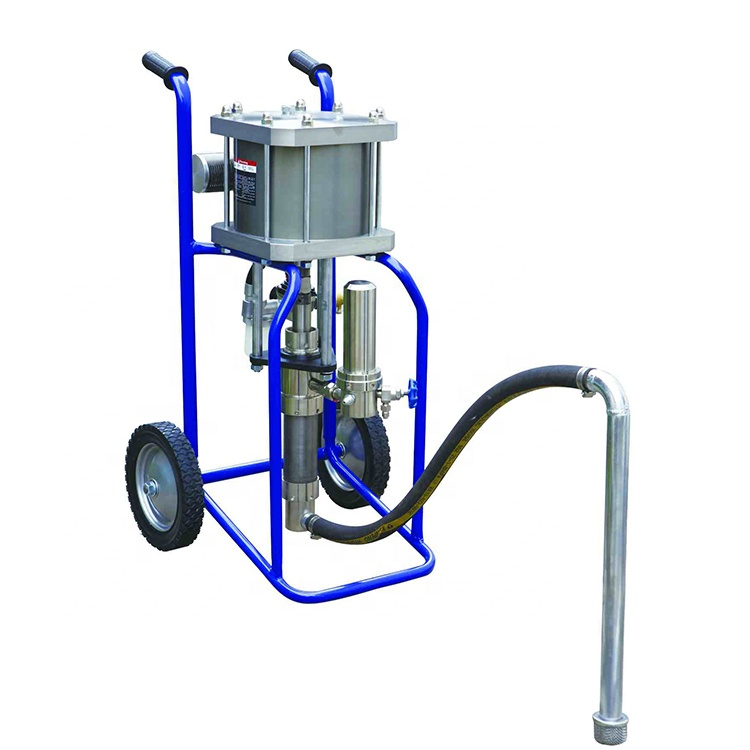

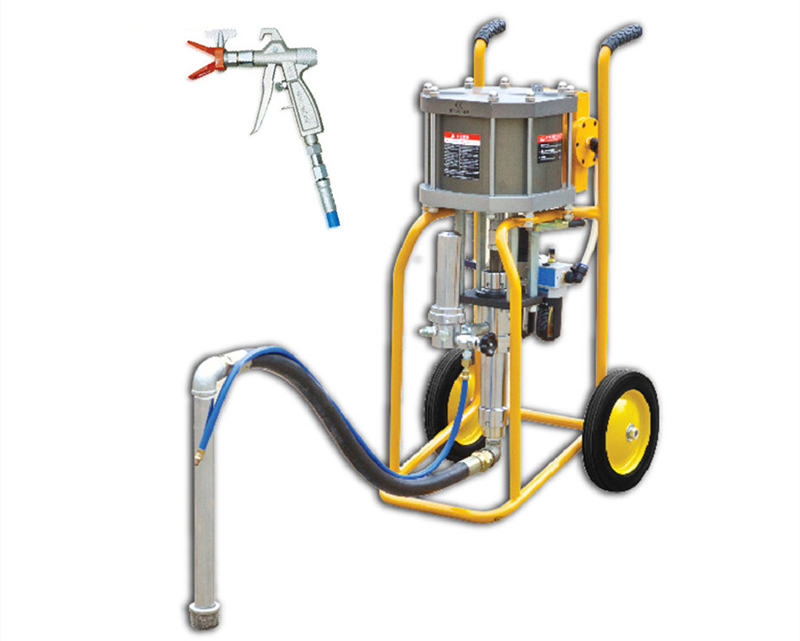

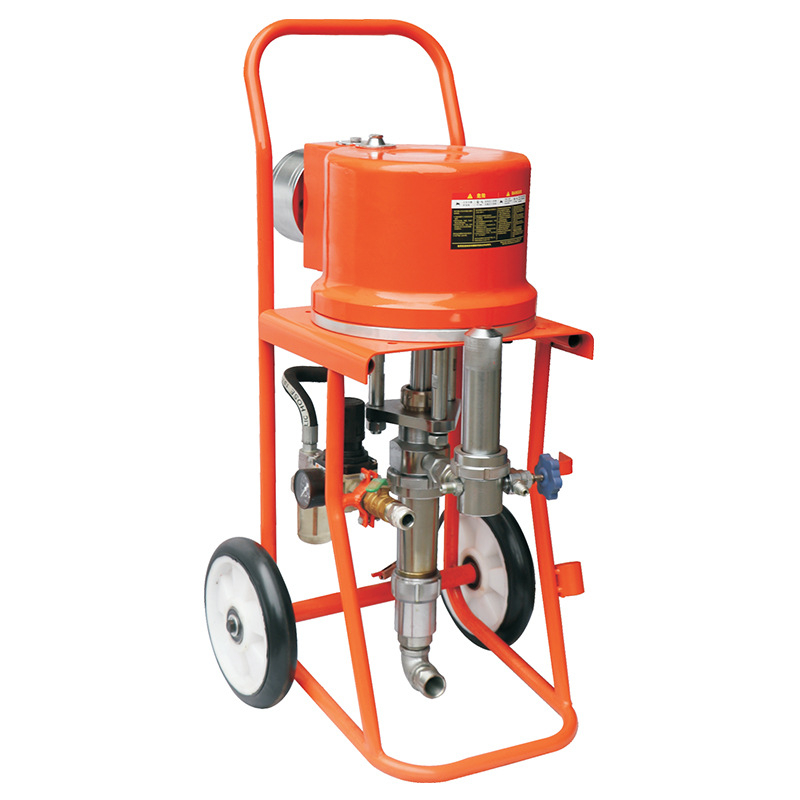

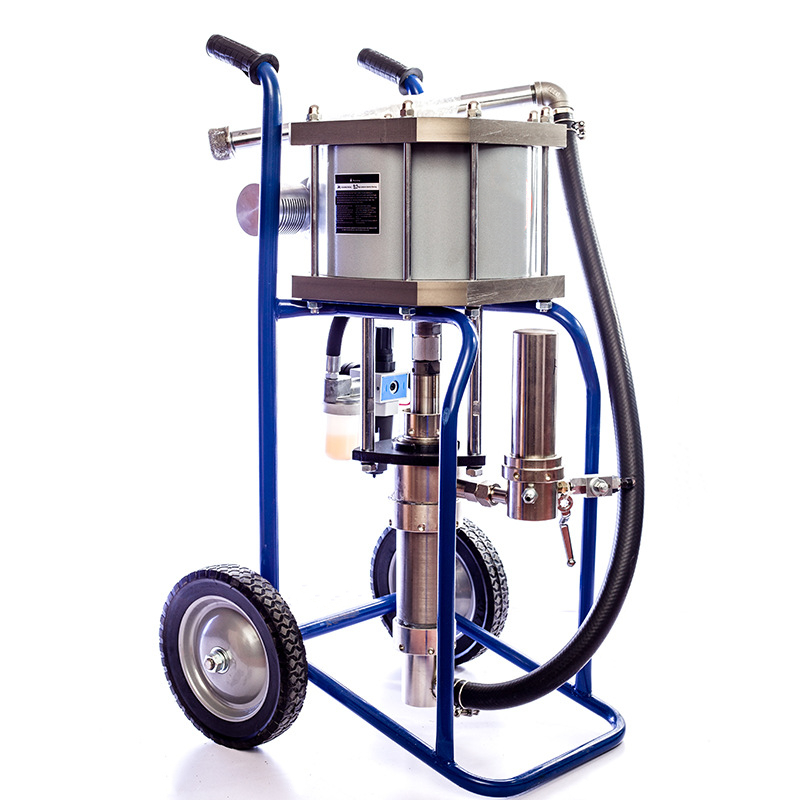

Waterproof Coating Air Powered Marine Pneumatic Spraying Machine Airless Paint Sprayer
Description:
1. Airless spray systems operate using high pressure to apply paint
by forcing it through a specially shaped nozzle into a confined spray
which cleanly and fully covers the painting surface.
2. The pressure is provided by a pump which draws the paint
up through the hose to the airless spray gun.

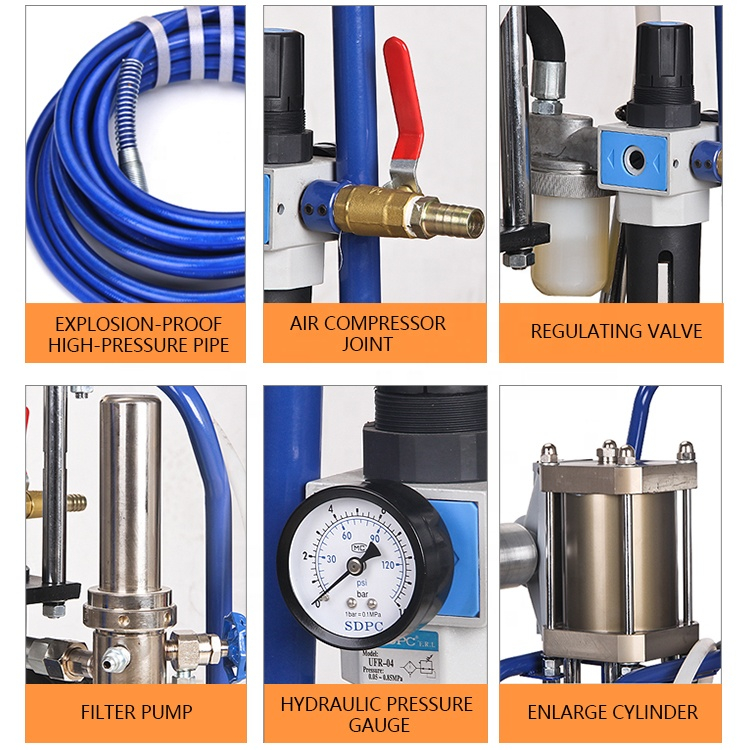

3. Equipped with high quality fluid pump,
the main parts are made of stainless steel material,
high productivity thick one-time filming and tight coat adhesion,
applicable for various commercial and industrial jobs.
4. Costing type: Use for ground coat, oil-based,water-based coating, magnetic paint, fireproof Paint,etc.
CODE |
SFP4975A |
SFP4975B |
Name |
President SD cart |
Bulldog SD cart |
Pump ratio |
30:1 |
33:1 |
Max.flow ratio |
4ltr/min |
11 ltr/min |
Max.air work pressure |
7kgf/cm2 |
|
Air consumption |
11-14N ltr/cycle |
33-35N ltr/cycle |
Dimensions mm |
540*610*950 |
714*780*1258 |
Weight |
29kgs |
107kgs |
Air hose connection |
NPT 1/2 famale |
NPT 3/4 famale |
Paint hose connection |
NPT3/8 female |
NPT3/8 female |
Commonly used spraying: Latex paint. Nippon Paint. Paint. Exterior paint.
Color, varnish, high viscosity latex paint, oil-based paint, and so on.
Applicable: Ship Building/Repair, Steel Structure, Furniture, Vehicles,etc.
The most common products for marine use are described below with their respective specifications.
Sprayers with much tougher fittings including specially treated,
chromed stainless steel rods and cylinders which withstand wear and operate over a longer span or time
when pumping highly abrasive or corrosive materials.
