Product details
Overview
Essential details
|
Grade: |
DIY, Industrial |
Warranty: |
6 months |
|
Power Source: |
Electric |
Customized support: |
OEM, ODM, OBM |
|
Place of Origin: |
Zhejiang, China |
Brand Name: |
Sanfine |
|
Model Number: |
SFP695 |
Type: |
Airless Spray Gun |
|
Application: |
Paint Spray Gun |
Cup Volume: |
Optional |
|
Nozzle Size: |
0.015-0.027 |
Color: |
Customerized |
|
Packing: |
Inner Box |
Pump type: |
Piston |
|
Working pressure: |
2-3bar |
Max flow: |
2.2-2.7L/min |
|
Function: |
Daily Sprayer Products |
Voltage/Frequency: |
220V 50HZ / 110V 60HZ |
Packaging & delivery
- Selling Units:
5000 Set/Sets per Month
-
Packaging & delivery
Packaging Details：
Single item
We will customize the size of the packing according to the quantity of the specific products.
Port：
Ningbo/Shanghai
| Quantity(sets) | 1 - 10 | 11 - 20 | >20 |
| Lead time (days) | 10 | 12 | To be negotiated |
Product Description
#SFP695

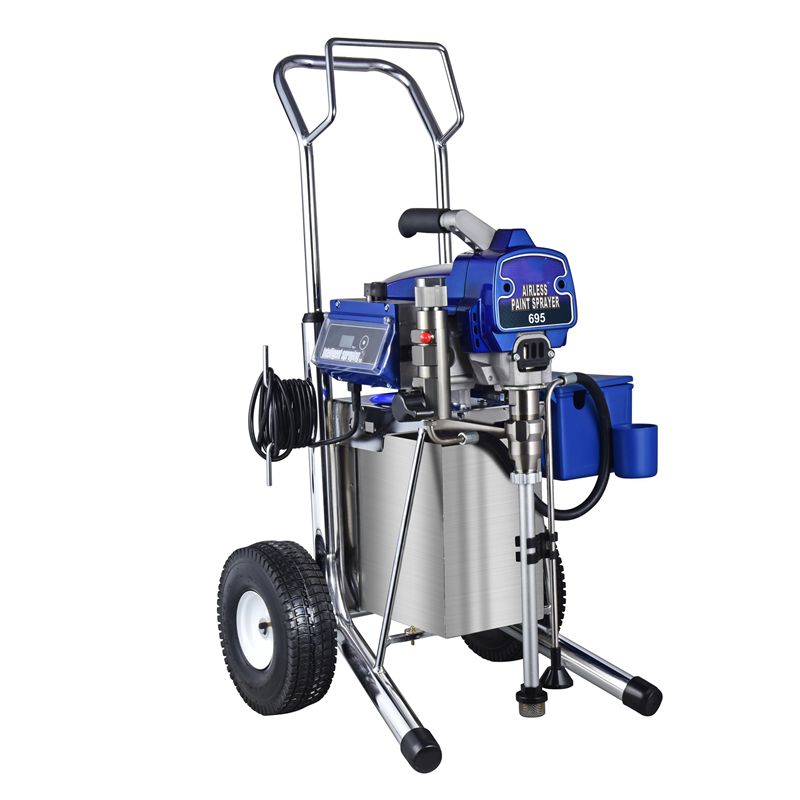

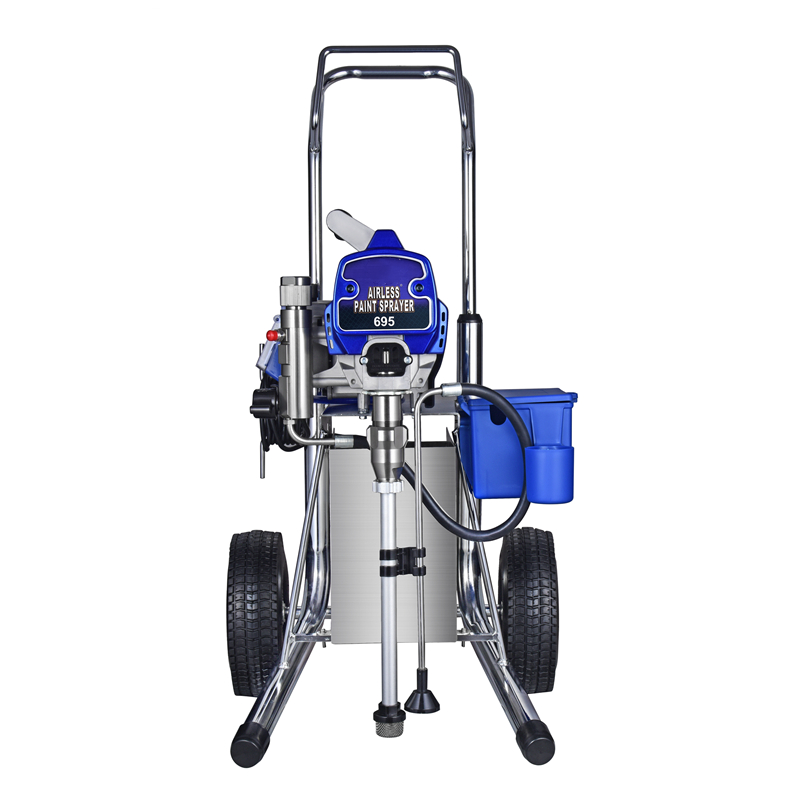

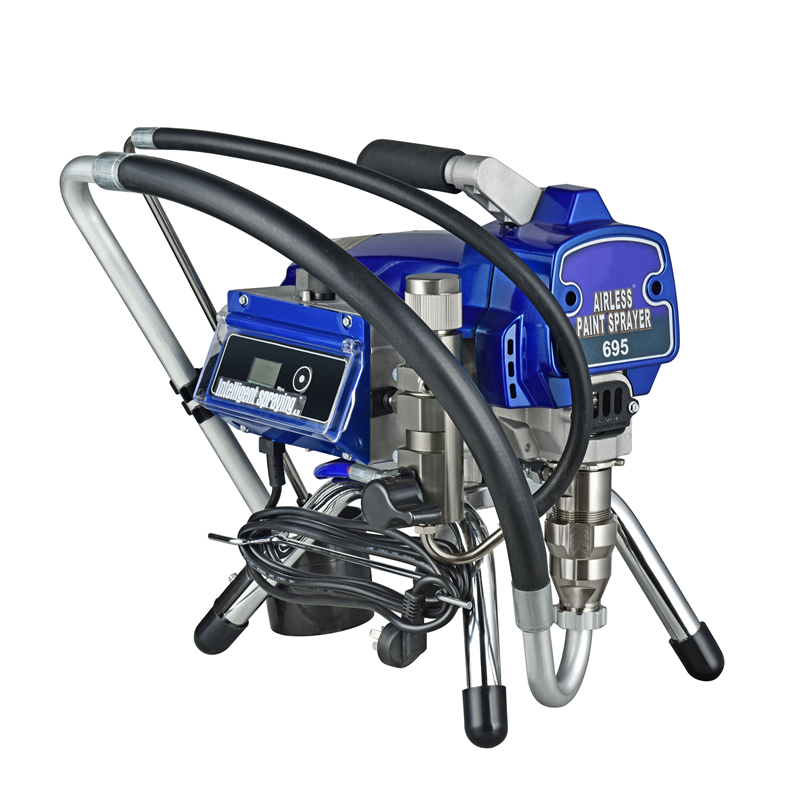

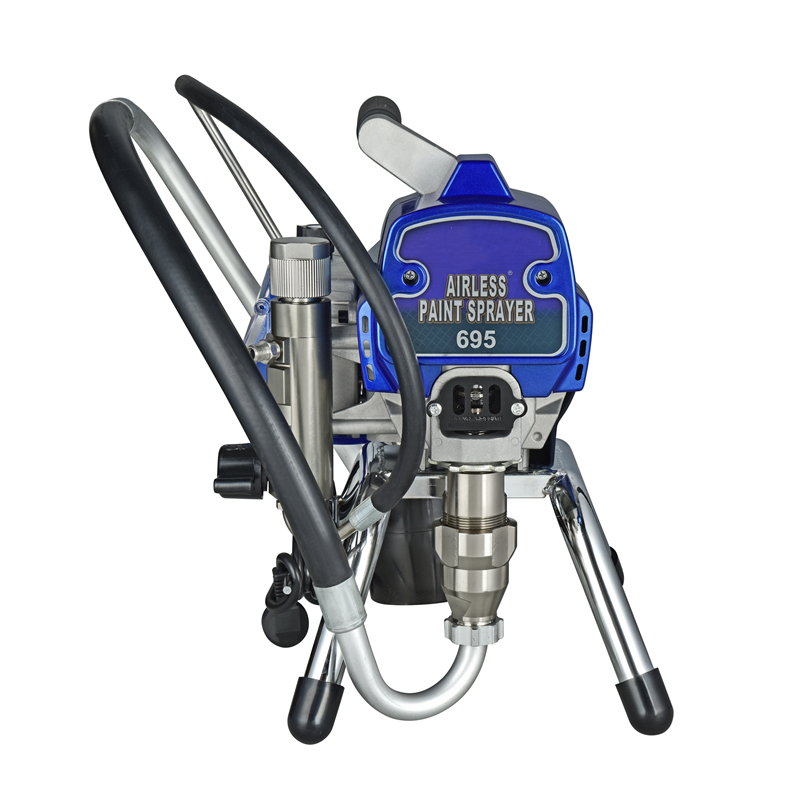

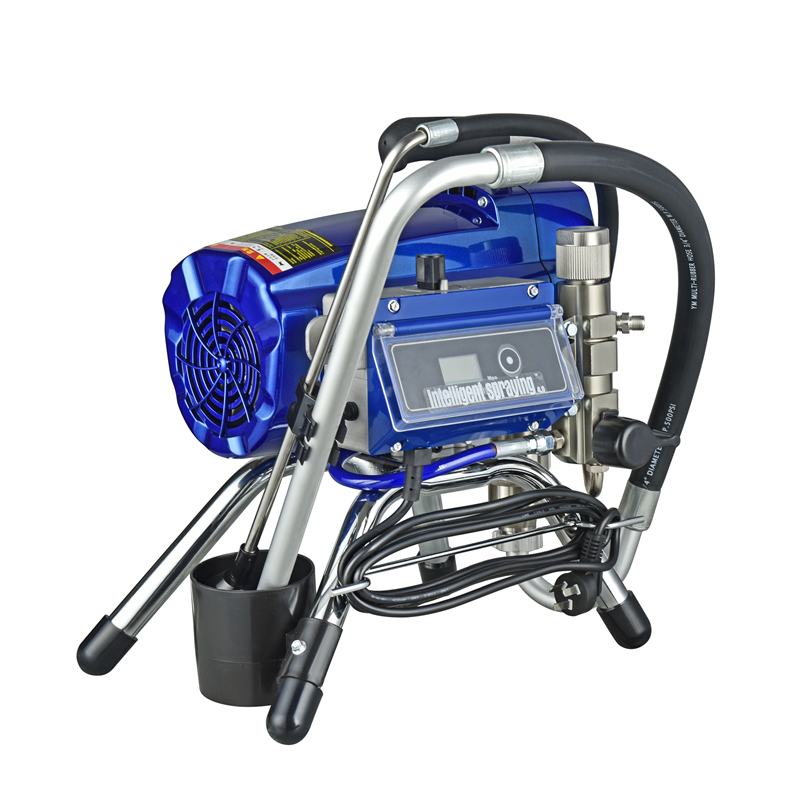

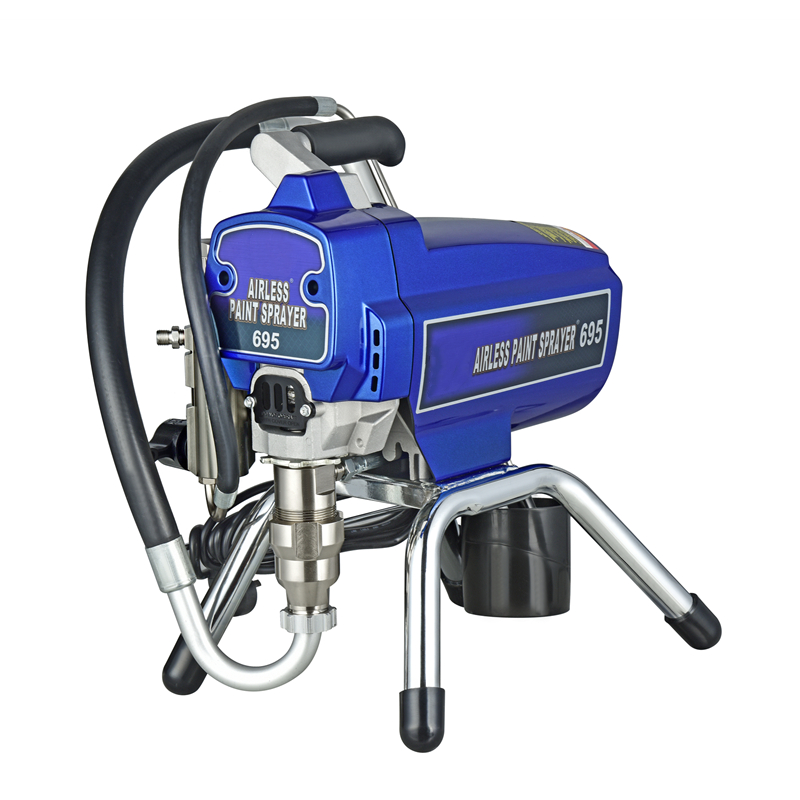

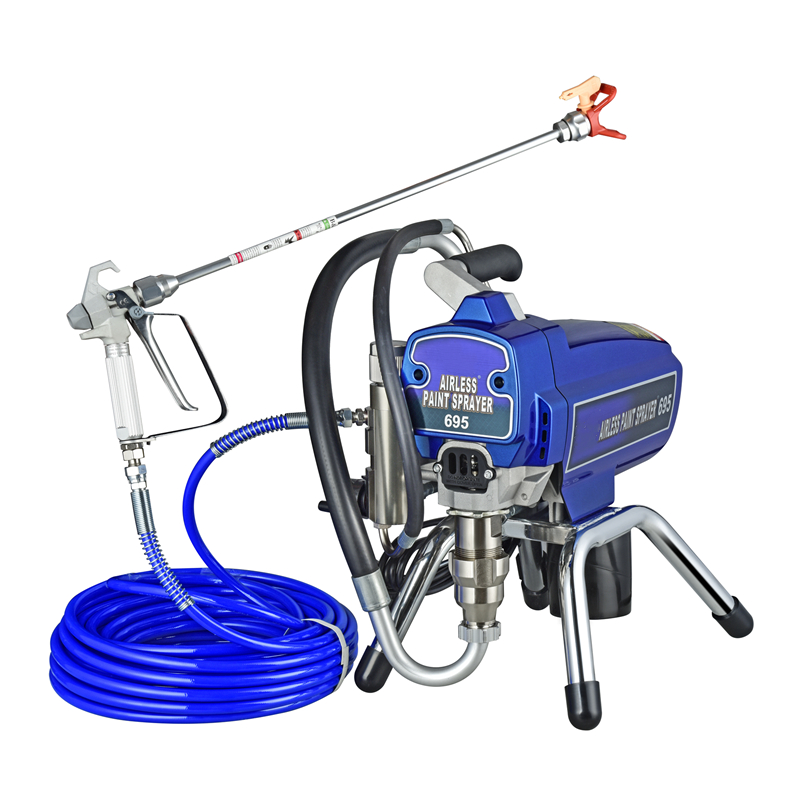

Sanfine Spraying Machine Brushless Mechanic Texture Airless Paint Sprayer
1. Viltage:220-240V/50Hz, 110V/60Hz.
2. Max. volume flow: 2.2-2.7L/MIN
3. Power: 2500-3200W/50HZ, Type: Airless Spray Gun AG14
4. Max tips: 513,517, 519, 525,(0.016-0.031)
5. Max.viscosity: < 30000PAS ,Pressure: 3500PSI, Weight: 25KG/28KG.
6. Built-in filter could be easily replaced.
7. Auto-cleaning reversible airless tip. Swivel-free inlet connector.
8. Anodized aluminum Forged gun body for light weight and high pressure.
.jpg?imageView2/2/format/jp2)
| Voltage & Frequency | 110V, 220-230V ~50Hz |
| Input Power | 2500-3000W |
| Current | 3-4A |
| Hose Close Nipple | G1/4-18 |
| Max Flow | 2.2-3.0L/Min(1300psi/10Bar) |
| Work Pressure | 1000-3000psi Adjustable |
| Max Pressure | 4200psi(280Bar) |
| Nozzle Size | (0.017"/0.43mm) |
| Weight | 28KG |
| Accessories: | |
| High Pressure Hose : 13M×1 4200PSI) | |
| Spray gun x1, Tip x2pcs, Tip-Extension x1(50cm) | |
| Manual x1 | |
| For Stains, latex, interior and exterior paint | |
| WITH CARTON | 49X42X53CM |
| G.W | 24KG,28KG |
Characteristic:
Steel surface structure, Epoxy flooring.
Oil paint construction, Tile industry water.
Home decoration construction, Construction business.
Paint spraying construction of ship, Spray construction of silicon mud algae, die oil spray.
Commonly used spraying:
Latex paint. Nippon Paint. Paint. Exterior paint. Color, varnish,
high viscosity latex paint, oil-based paint, and so on..jpg?imageView2/2/format/jp2)
Applications:
Construction, home decoration construction, color tile industry, water-based,
oil-based paint construction, steel surface, epoxy floor, marine paint spraying construction
Before First Use:
NOTICE: Before first use, clean the Spray Gun thoroughly.
If not removed, the material used for testing and corrosion prevention will contaminate paint.
Spraying Technique:
CAUTION: DO NOT STOP WHEN SPRAYING.
Spraying materials will start to set and dry,as soon as they come in contact with the air.
They will cause a permanent clog if not cleared.If discontinuing spraying for more than half an hour,
turn off the air supply, disconnect Cup from Gun Body and throughly rinse Cup and Gun Body with clean water.
Paint Preparation and Filling:
Note: Proper paint mixture is essential. Follow the manufacturer's directions.
Most paints will spray easily if they are thinned properly.
1. Thread the Cup to the Gun Body and tighten until the Cup is securely in place.
2. Thin the paint according to manufacturer's directions and mix thoroughly.
3. Carefully strain the paint through a paint strainer or a piece of cheesecloth.
