Key attributes
Industry-specific attributes
|
Type |
Airless Spray Gun |
|
Application |
Paint Spray Gun |
|
Cup Volume |
Optional |
Other attributes
|
Power Source |
Petrol/Gasoline |
|
Place of Origin |
Zhejiang, China |
|
Grade |
DIY, Industrial |
|
Warranty |
1 years |
|
Customized support |
OEM, ODM, OBM |
|
Brand Name |
Sanfine |
|
Model Number |
SFP8900HD |
|
Max. Nozzle Size |
0.048 (inch), 521--621 |
|
Color |
Customerized |
|
Power |
Electricity, Engine |
|
Packing |
Strong Wooden Box |
|
Pump type |
Piston Pump |
|
Working pressure |
227 Bar (3300psi) |
|
Max flow |
8-10L/min |
|
Voltage/frequency |
220V 50HZ / 110V 60HZ |
|
Motor power |
6.5HP (4875W) |
|
Feature |
High Efficiency |
Packaging and delivery
|
Selling Units: |
Single item |
|
Single package size: |
58X55X65 cm |
|
Single gross weight: |
66.000 kg |
Product descriptions from the supplier
Overview
Product Description

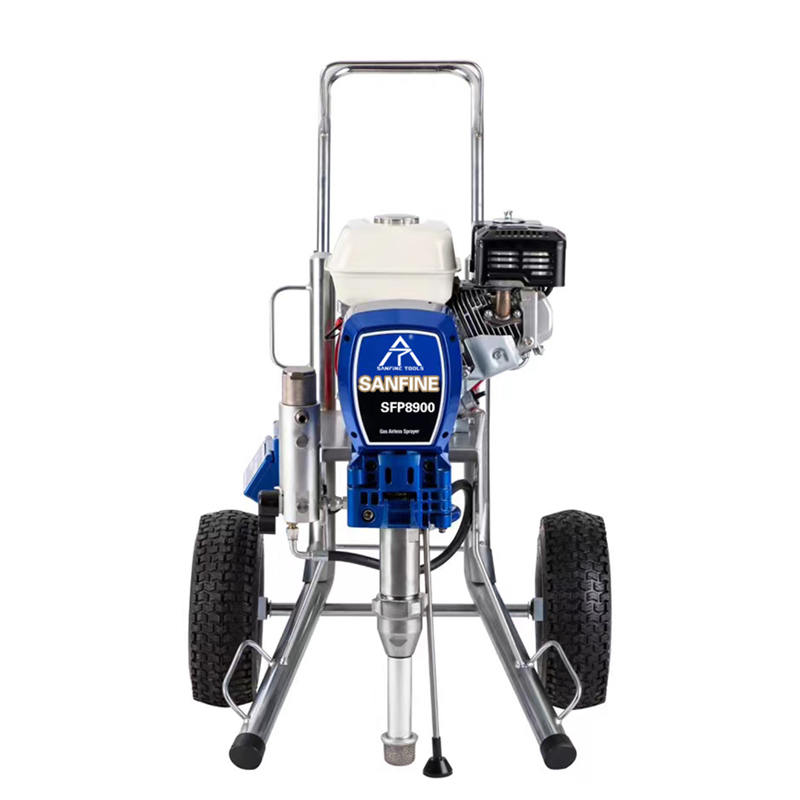

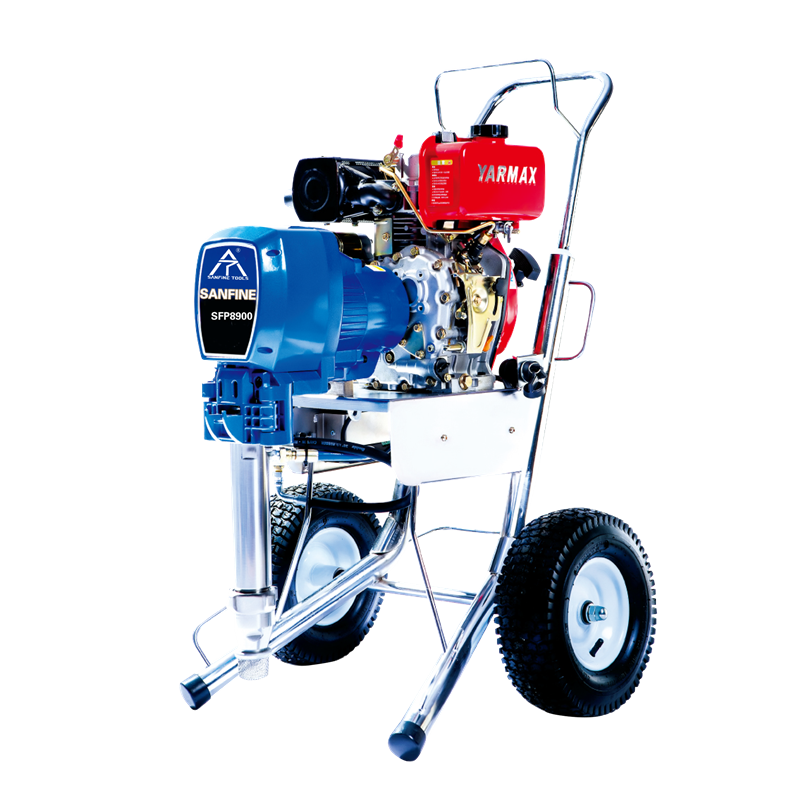

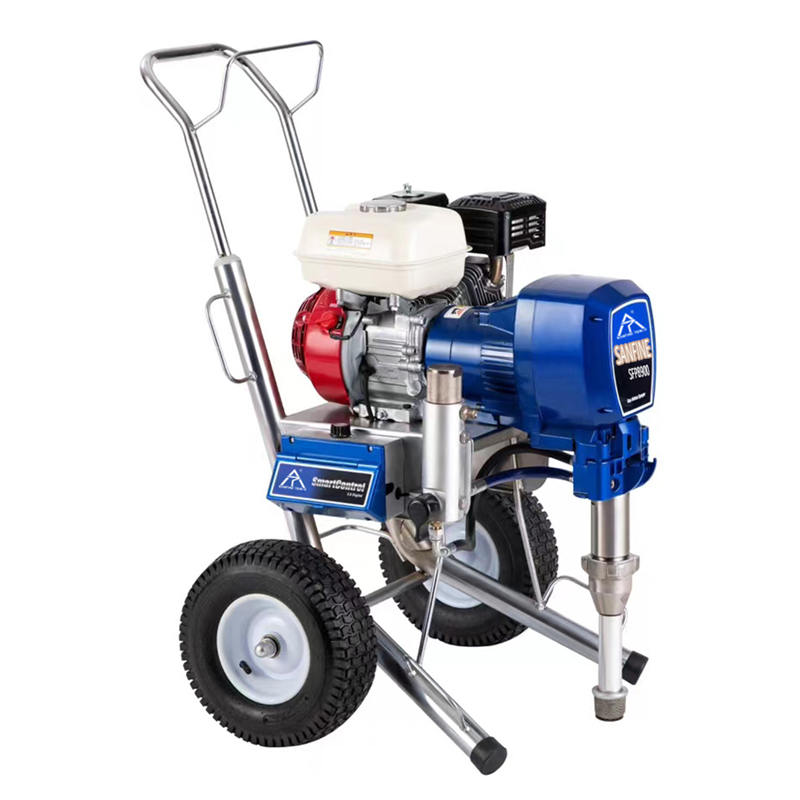

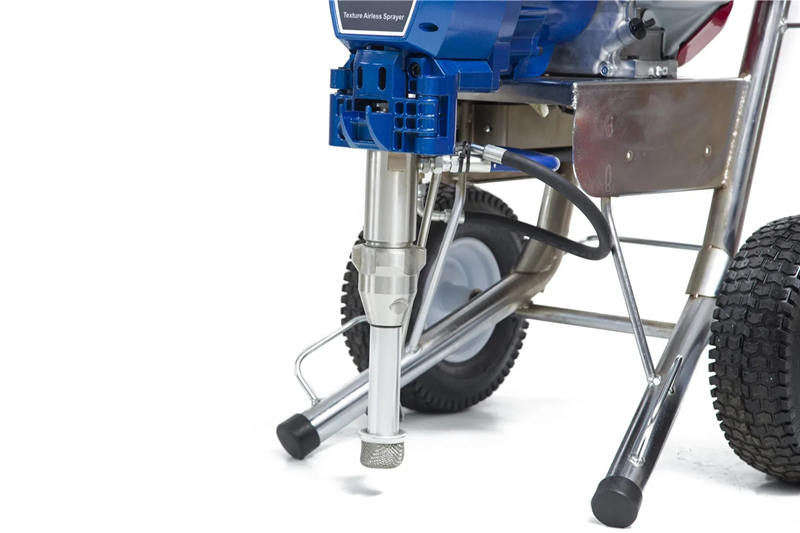

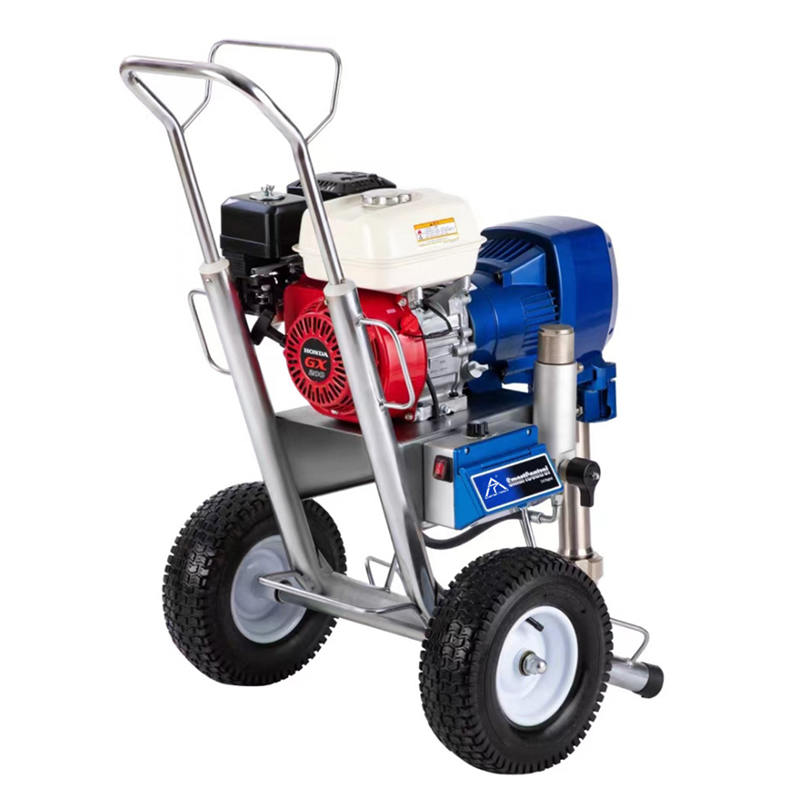

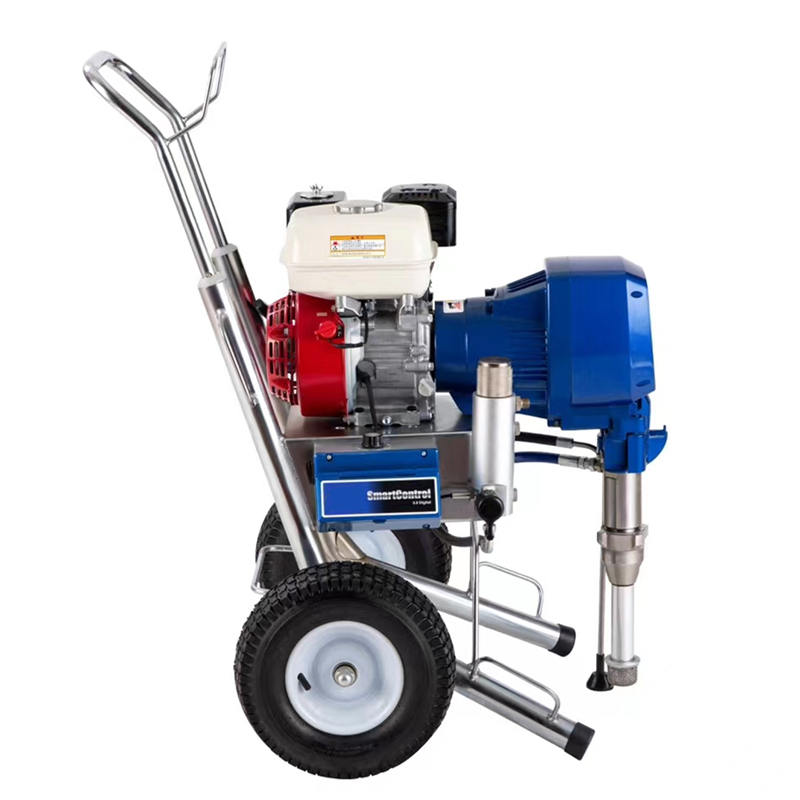

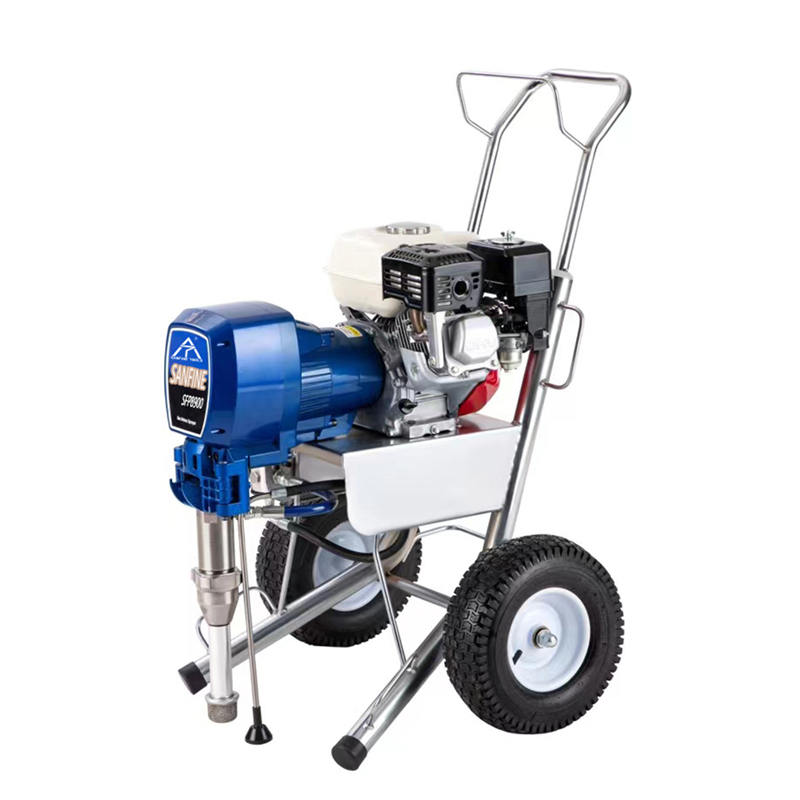

#SFP8900HD
Gasoline Engine Putty Sprayer Hydraulic Piston Pump Airless Paint Spray Gun

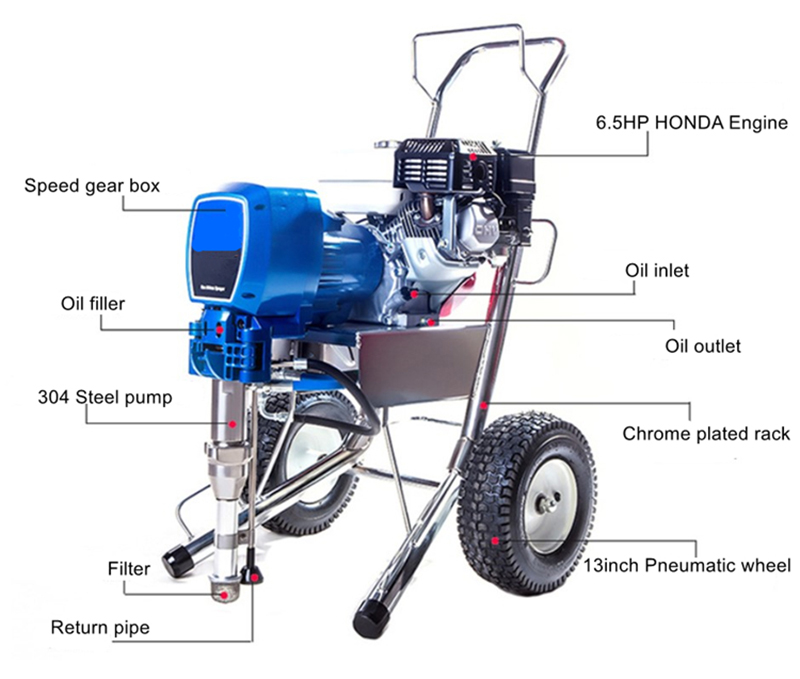

Features:
1. Excellent cooling system
2. Unique hydraulic motor/pump, Hydraulic tank
3. Omni-directional paint filter, Unique structural design
4. Support multiple spray guns at the same time, Honda high horsepower engine
5. Stable performance when spraying, can spray thick putty and high viscosity materials,
can be connected to long high pressure pipeline
6. Rugged and in line with construction site requirements, it is the best choice for large construction
projects and high viscosity materials.
|
Tip Size |
1 or 2 guns with 0.035 in tip |
|
|
Max. Dispense Rate |
8.5lpm |
|
|
Max. Working Pressure |
3300 psi |
|
|
Horse Power |
4800-5500W |
|
|
Hose Length |
15m (49.2ft) |
|
|
Weight |
65kg (146 lb) |
|
|
Pump Type |
piston pump |
|
|
Inlet Paint Strainer |
12 mesh stainless steel screen, reusable |
|
|
Outlet Paint Filter |
60 mesh stainless steel screen, reusable |
|
|
Sound Power |
105 dBa per ISO 3744 |
|
|
Sound Pressure |
96 dBa measured at 3.1 ft |
|
|
Pump Inlet Size |
1–5/16–12 UN-2A |
|
|
Fluid Outlet Size |
3/8 npsm from fluid filter |
|
|
Wetted Parts |
zinc-plated carbon steel, PTFE, nylon, polyurethane, UHMW polyethylene, fluoroelastomer, acetal, leather, aluminum, tungsten carbide, nickel- and zinc-plated carbon steel, stainless steel, chrome plating |
|
Commonly used spraying:
Putty powder, acrylic acid, Latex paint, Fireproof Materials, Epoxy paint, Interior and exterior wall coating, paint.

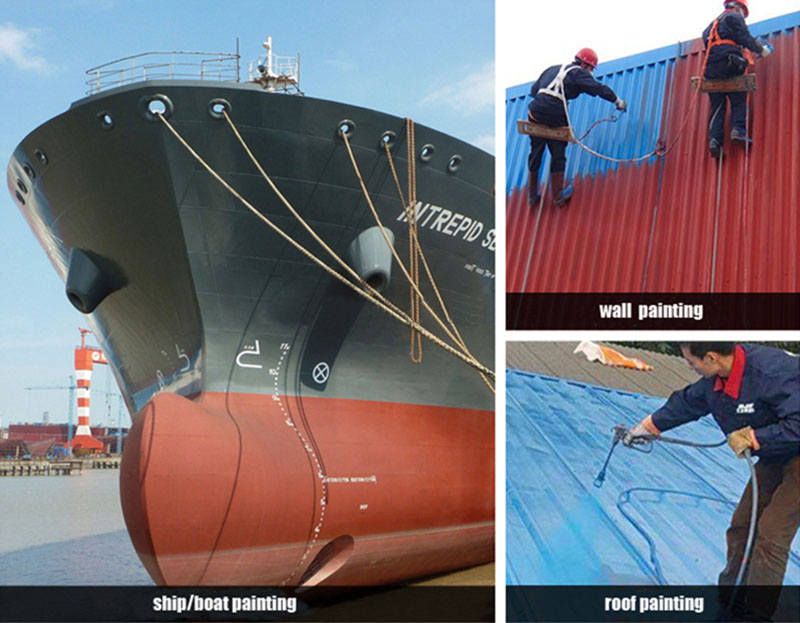

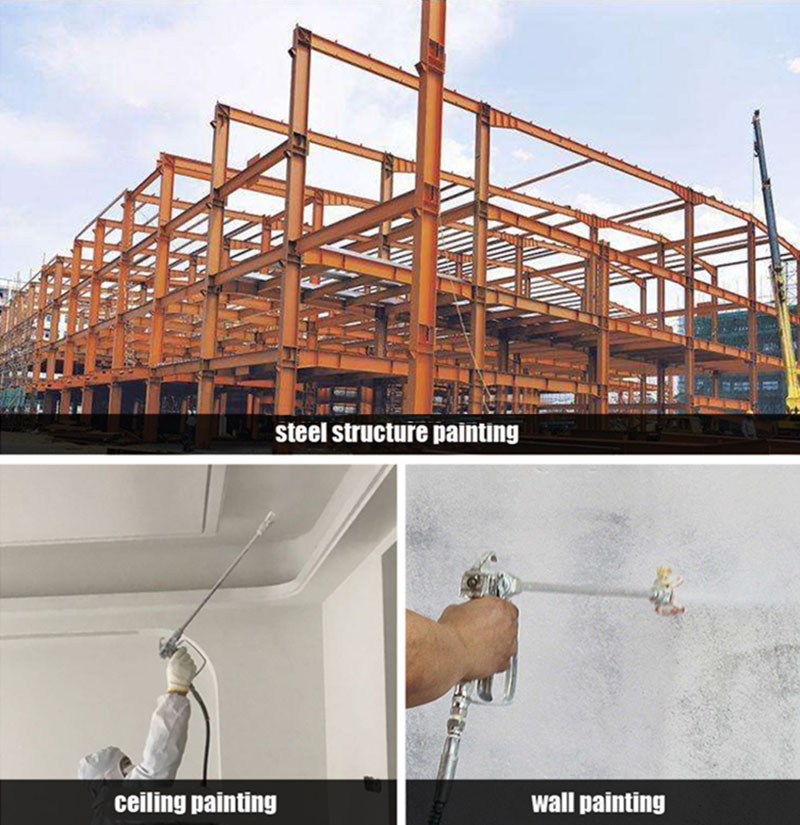

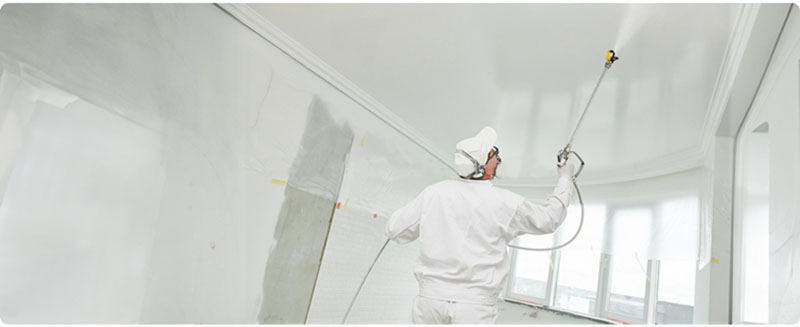

Applications:
Construction, home decoration construction, color tile industry, water-based,
oil-based paint construction, steel surface, epoxy floor, marine paint spraying construction
Before First Use:
NOTICE: Before first use, clean the Spray Gun thoroughly.
If not removed, the material used for testing and corrosion prevention will contaminate paint.
Spraying Technique:
CAUTION: DO NOT STOP WHEN SPRAYING.
Spraying materials will start to set and dry,as soon as they come in contact with the air.
They will cause a permanent clog if not cleared.
If discontinuing spraying for more than half an hour, turn off the air supply,
disconnect Cup from Gun Body and throughly rinse Cup and Gun Body with fresh, clean water.
Paint Preparation and Filling:
1. Thread the Cup to the Gun Body and tighten until the Cup is securely in place.
2. Thin the paint according to manufacturer's directions and mix thoroughly.
3. Carefully strain the paint through a paint strainer or a piece of cheesecloth.
Note:
Proper paint mixture is essential. Follow the manufacturer's directions.
Most paints will spray easily if they are thinned properly.

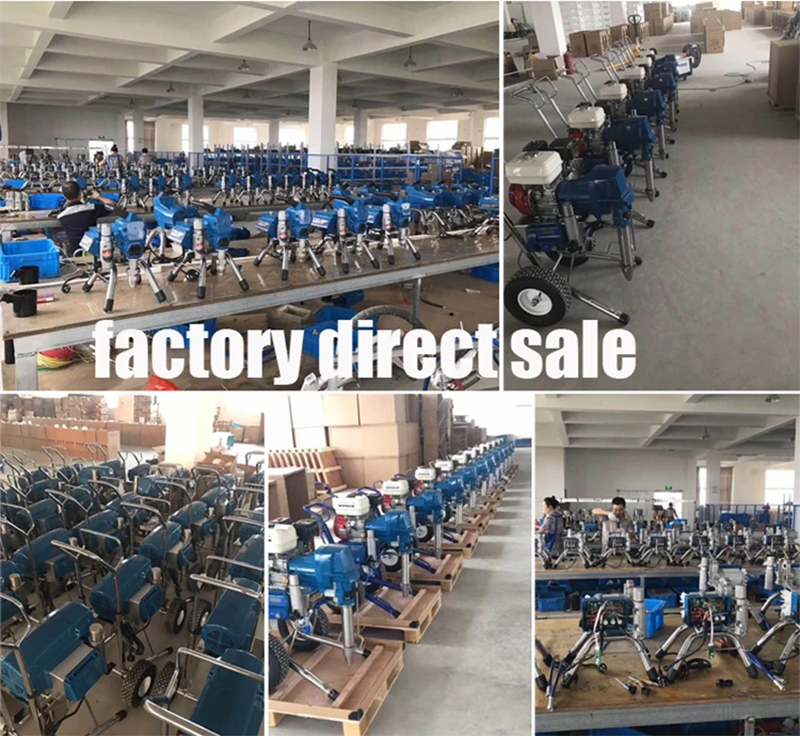

Factory & Workshop

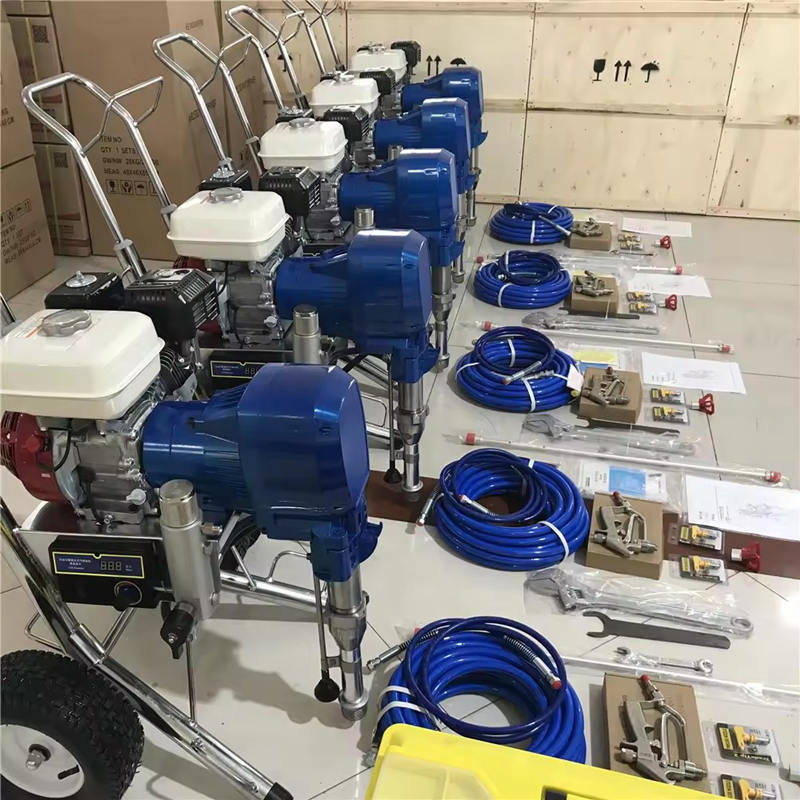

Packaging & Shipping
