Key attributes
Industry-specific attributes
|
Max. vertical conveying distance |
30M |
|
Max. horizontal conveying distance |
100M |
|
Hopper Capacity |
60L |
Other attributes
|
Applicable Industries |
Building Material Shops, Machinery Repair Shops, Retail, Construction works |
|
Showroom Location |
None |
|
Place of Origin |
Zhejiang, China |
|
Weight |
380 kg |
|
Warranty |
1 Year |
|
UNIQUE SELLING POINT |
Fully hydraulic system |
|
Machinery Test Report |
Provided |
|
Video outgoing-inspection |
Provided |
|
Marketing Type |
Ordinary Product |
|
Warranty of core components |
1 Year |
|
Core Components |
Pressure vessel, Motor, Pump |
|
Condition |
New |
|
Application |
Spraying |
|
Brand Name |
Sanfine |
|
Dimension(L*W*H) |
120*90*155cm |
|
Power |
22KW |
|
Color |
Customer's Requirements |
|
Delivery time |
12days |
|
Packing |
Wooden Packing |
|
OEM |
Available |
|
Certification |
CE |
|
Function |
Waterproof Mending Leakage Paint |
|
Pressure: |
35MPa (350 bar) |
|
Heater power |
6000W each side |
Packaging and delivery
|
Selling Units: |
Single item |
|
Single package size: |
48X50X58 cm |
|
Single gross weight: |
68.000 kg |
Product descriptions from the supplier
Overview
Product Description

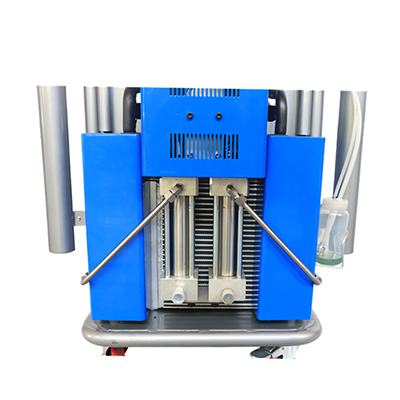

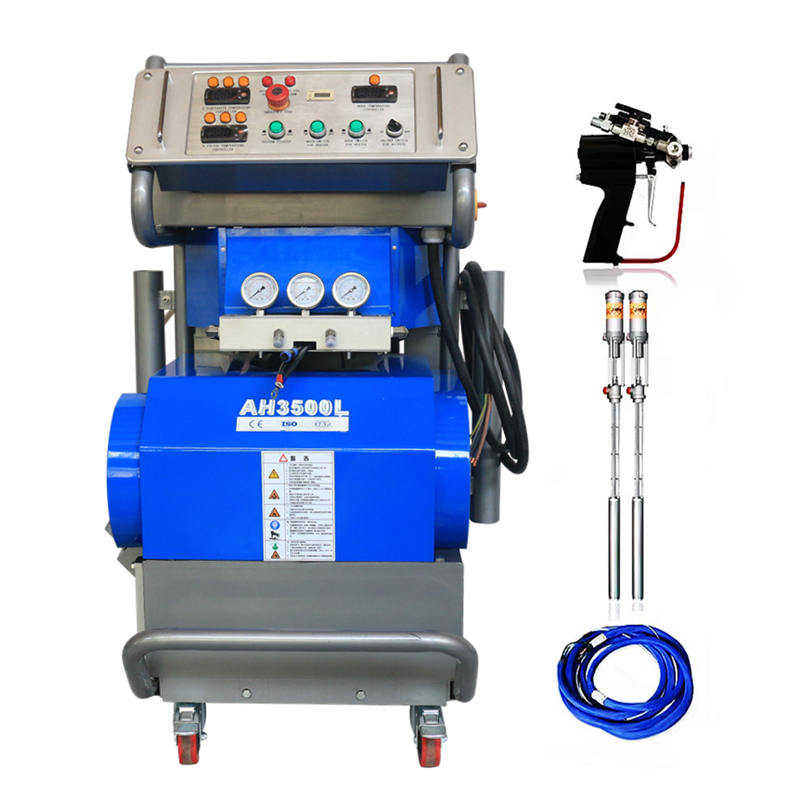

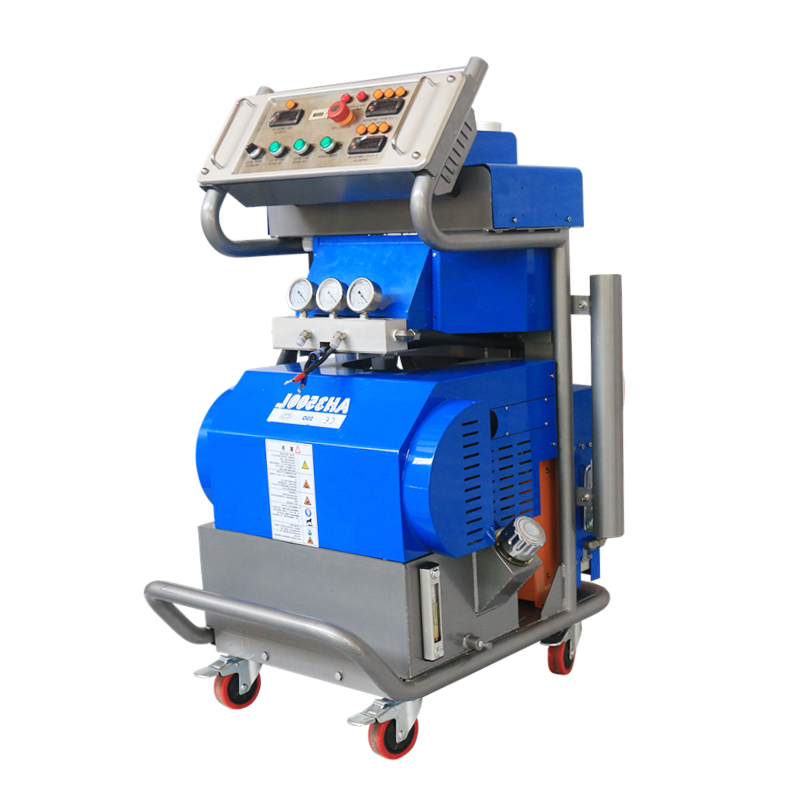

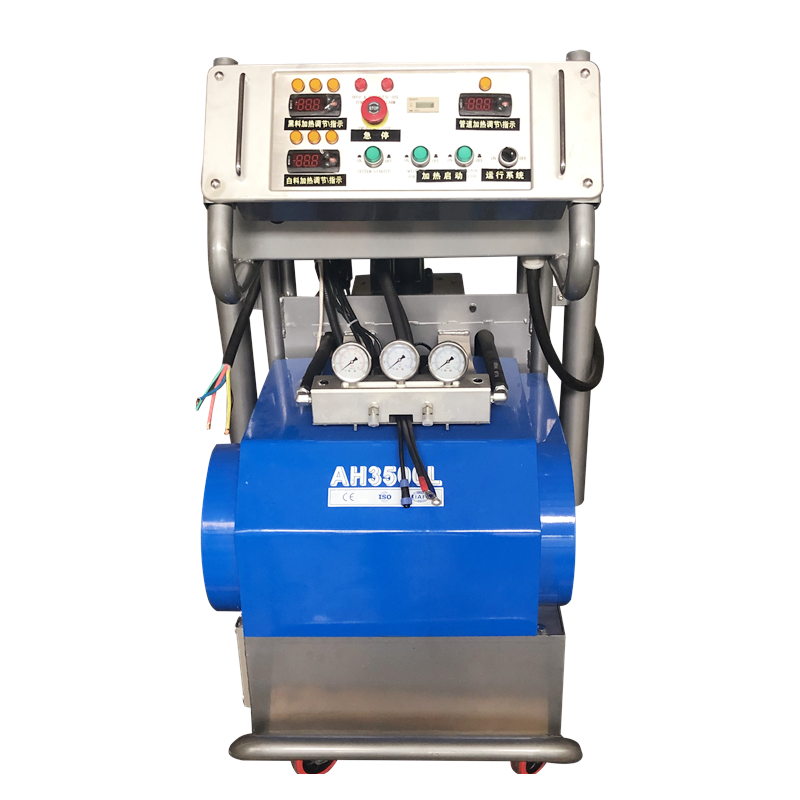

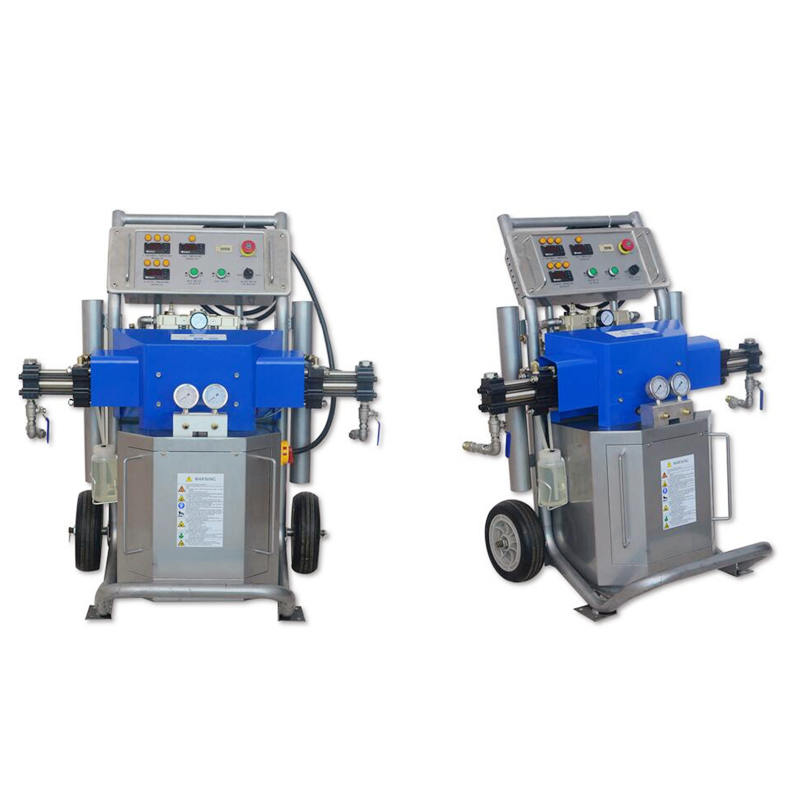

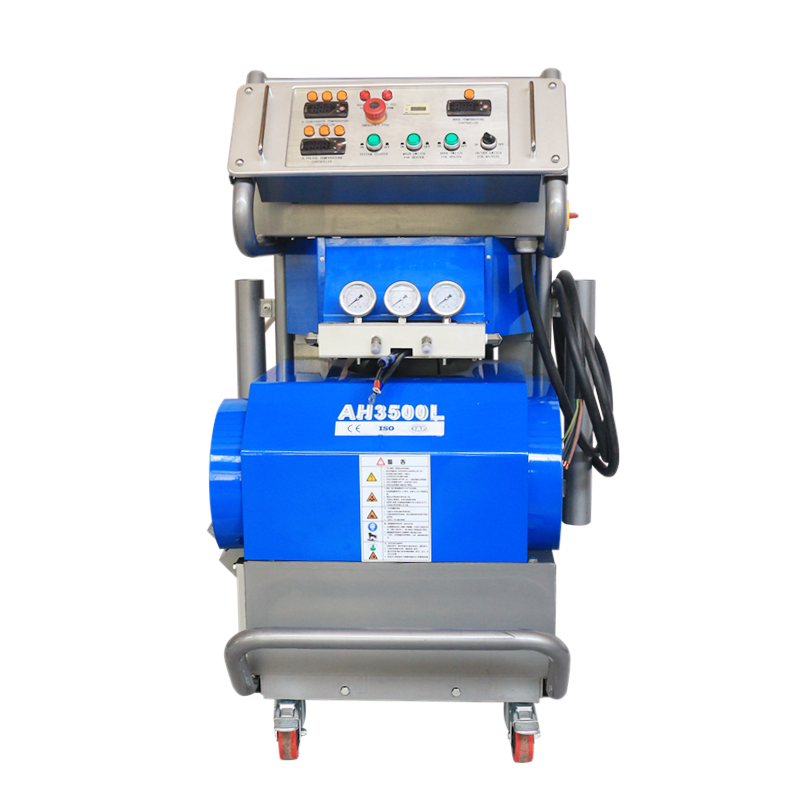

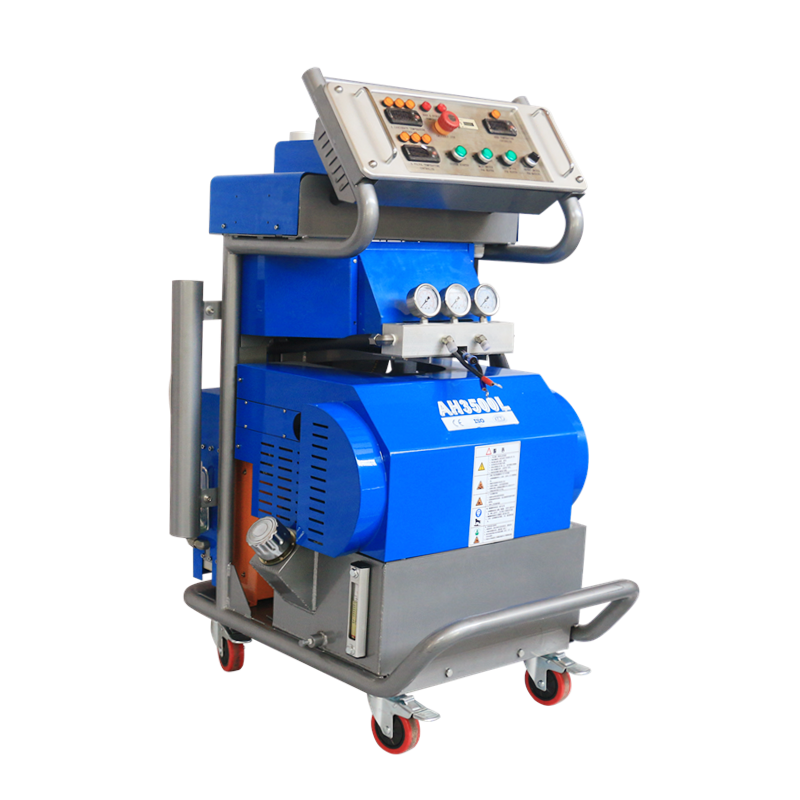

Model#SF-AH3500L

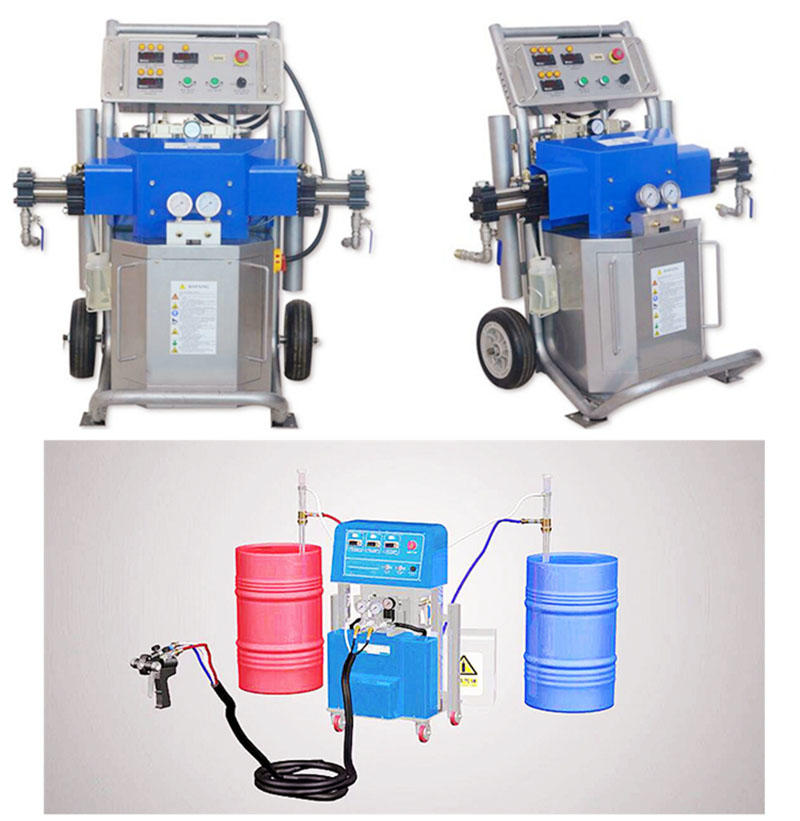

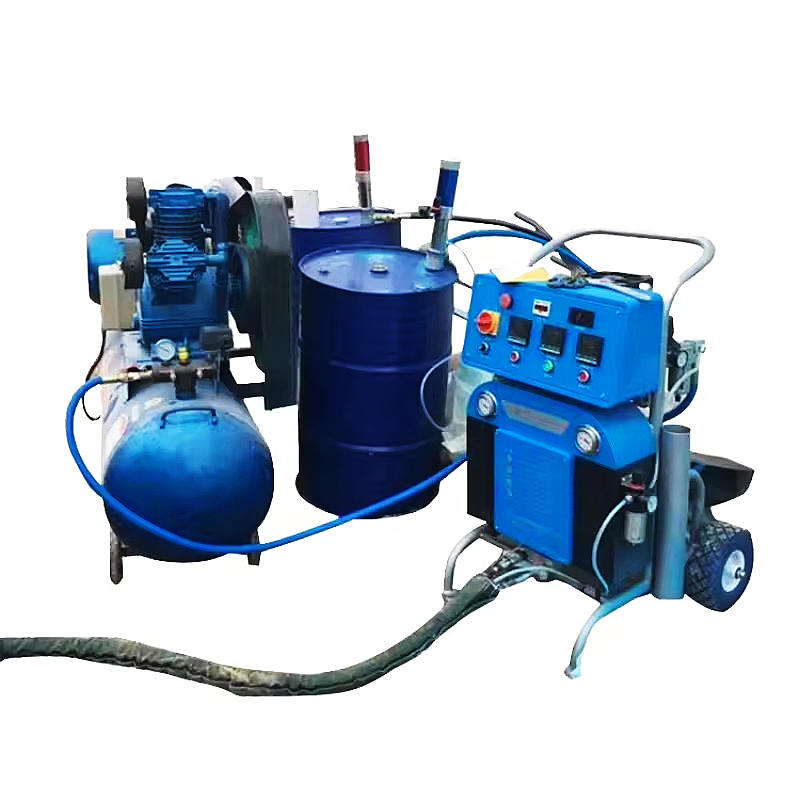

Polyurea Reactor Coating Pump Polyurethane Insulation Spray Foam Machine
Specification:
1. The machine has a small size, lightweight, low failure rate,
simple operation, easy to move and so on.
2. Use the most advanced pneumatic booster devices,
the maximum degree to ensure stability of equipment work.
3. Multiple raw material filter device to minimize the spray plug problem.
4. Multiple leakage protection system to protect the safety of the operator.
5. With an emergency switch system, to the most rapid response to emergencies.
6. Reliable and powerful heating system can make the raw material rapidly heating to the ideal state,
to meet the normal construction of equipment.
7. The feeding volume can be adjusted, and has a regular, quantitative function,
especially suitable for high-precision small batch of polyurethane casting to improve production efficiency.
8. The latest no-clean spray gun with small size, light weight, low failure rate.
9. Material taken pump use large ratio method, automatic mention material,
high viscosity of winter raw materials can also easily feed.
|
Item |
Hydraulic polyurea spray machine |
|
Standard configuration |
Proportion Fixed Mainframe: 1 set |
|
|

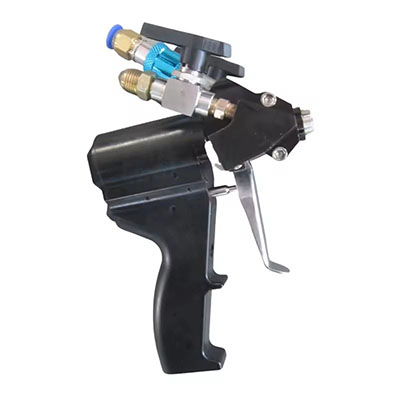

Self-cleaning spray gun: 1 set |
|
|

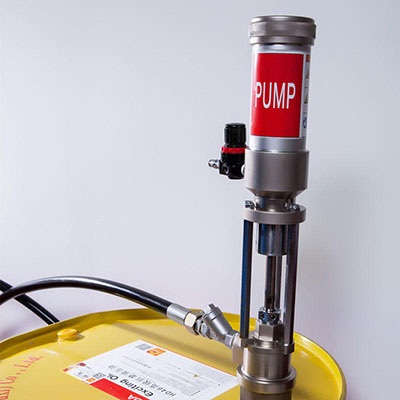

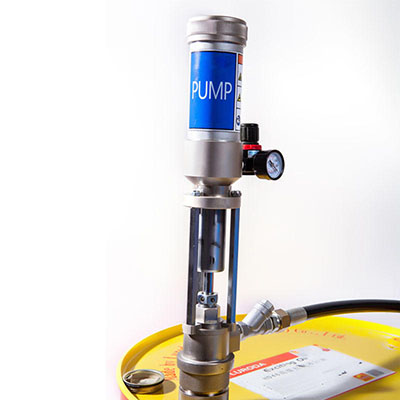

Feeding pump: 2 sets |
|
|
Heating hose: 49.2 feet (15m) |
|
|
Connecting hose from feeding pump to machine: 10 feet(3m) |
|
|
Connecting hose from heating hose to gun: 5 feet(1.5m) |
|
|
Rings and Tools |
|
Technical Data |
The ratio of raw material: 1:1(Fixed) / 1:0.4 / 1:2 / 2:1 or optional |
|
|
The viscosity range of raw material: 200-1000CPS (Under the operate temperature) |
|
|
Max Working pressure: 25 MPa (200 bar) |
|
|
Max fluid temperature: 88°C (190°F) |
|
|
Max Output: 14kg/min (30 lb/min) |
|
|
Heating hose power: 3500W*2 |
|
|
Max hose length: 94m (308 feet) |
|
|
Whole power: 22KW |
|
|
Voltage: 380V/400V 3 phase |
|
|
Operate temperature: 0°C-70°C |
|
|
Clean mode: Self-clean by air |
|
|
Max heating hose length: 308 feet (94m) |
|
|
Working fluid pressure: 6-8Mpa |
|
|
Machine size: 1200mm*900mm*1550mm |
|
|
Gross weight: 380KG |
Application:

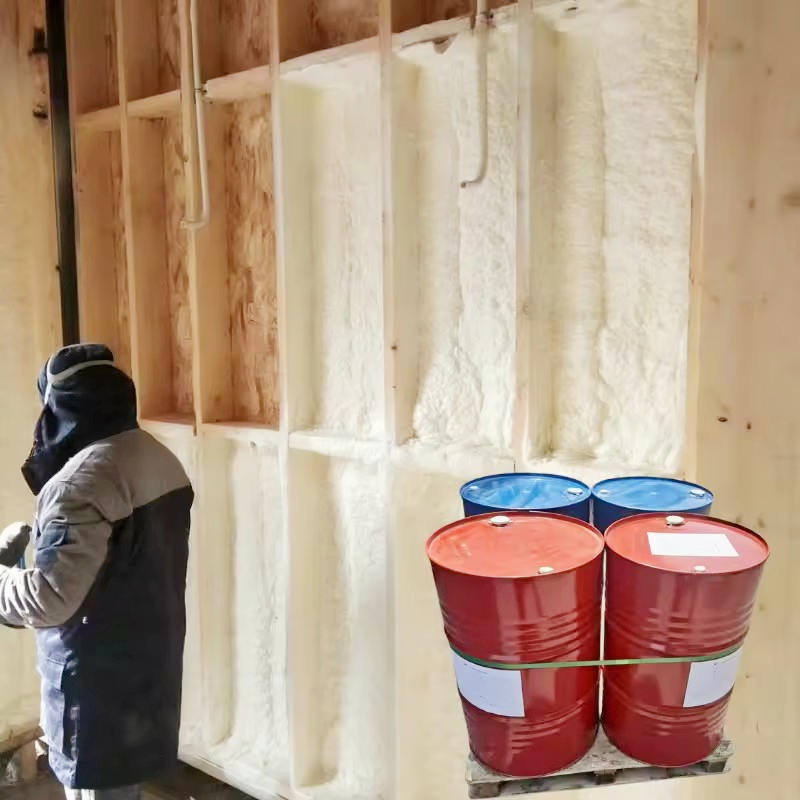

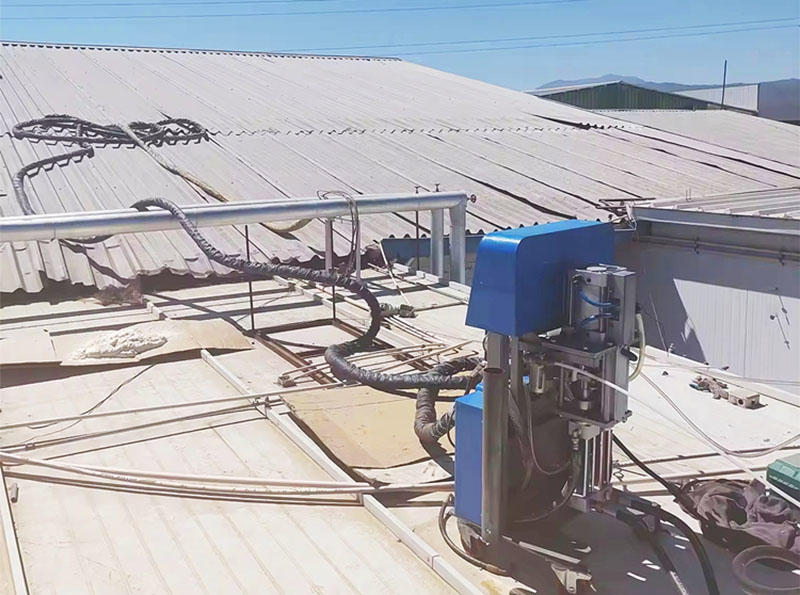

1. Polyurethane spray on wall & roof,
2. Polyurea spray for waterproof & anticorrosion,
3. Construction seam filling,
4. Cold storage spray insulation,
5. Tank and pipe spray insulation,
6. Polyurethane foam for package cushioning,
7. Car roof spray insulation,
8. Highway, railway, automobile, watercraft, mining petroleum, electrical industry, food industry, etc.

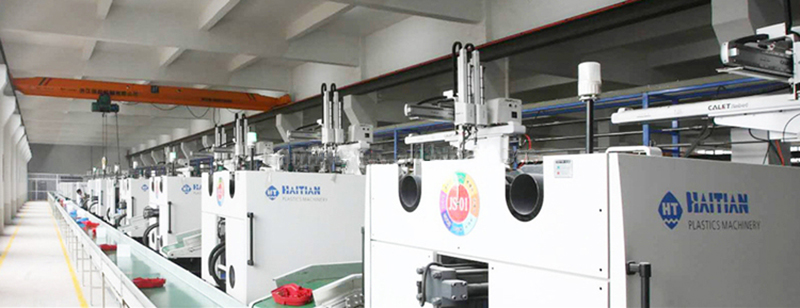

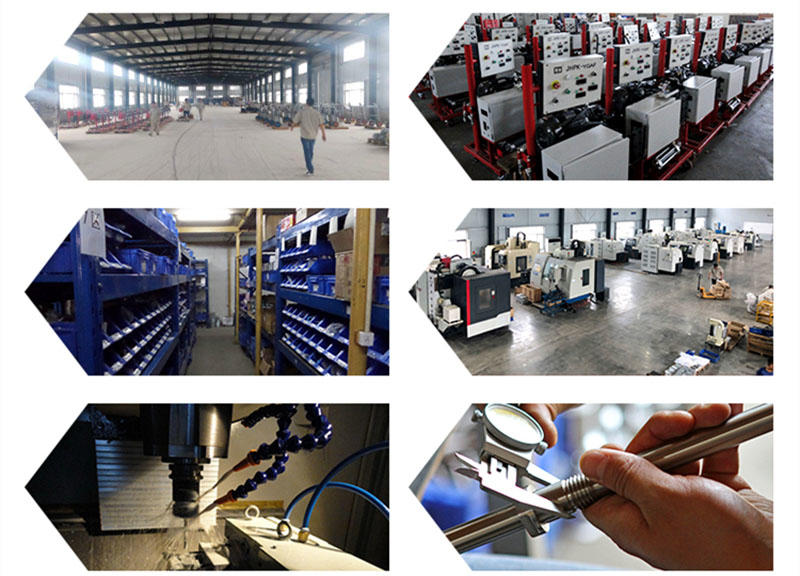

Factory & Workshop

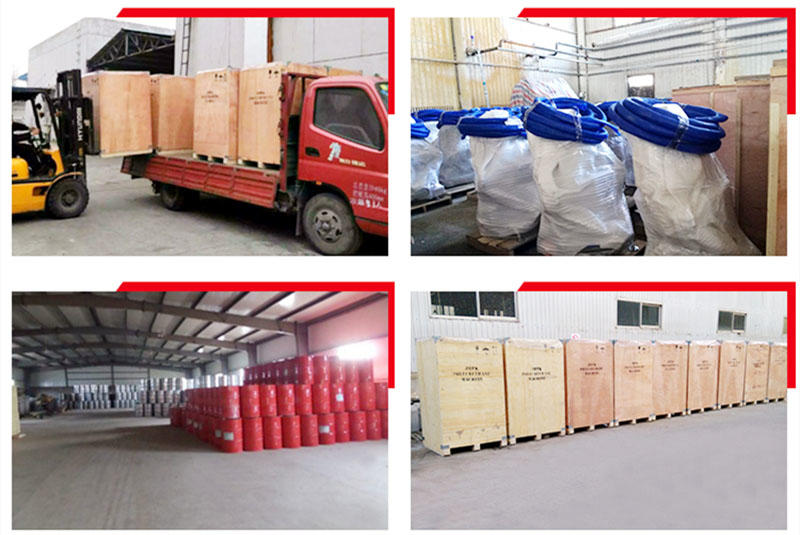

Packaging & Shipping
